4-22
REAR WHEEL
Bent teeth → Replace the drive sprocket, the
rear wheel sprocket and the drive chain as a
set.
2. Replace:
• Rear wheel sprocket
a. Remove the rear wheel sprocket nuts and
the rear wheel sprocket.
b. Clean the rear wheel drive hub with a clean
cloth, especially the surfaces that contact
the sprocket.
c. Install the new rear wheel sprocket.
Tighten the rear wheel sprocket nuts in stages
and in a crisscross pattern.
EAS30163
ASSEMBLING THE REAR WHEEL
ECA21340
• Do not drop the wheel sensor rotor or sub-
ject it to shocks.
• If any solvent gets on the wheel sensor ro-
tor, wipe it off immediately.
1. Install:
• Wheel bearing (right side)
• Wheel bearing (left side)
• Oil seal
Refer to “ASSEMBLING THE FRONT
WHEEL” on page 4-14.
EAS31156
MAINTENANCE OF THE REAR WHEEL
SENSOR AND SENSOR ROTOR
NOTICE
ECA21060
• Handle the ABS components with care
since they have been accurately adjusted.
Keep them away from dirt and do not sub-
ject them to shocks.
• The rear wheel sensor cannot be disassem-
bled. Do not attempt to disassemble it. If
faulty, replace with a new one.
• Keep any type of magnets (including mag-
netic pick-up tools, magnetic screwdrivers,
etc.) away from the rear wheel sensor or
rear wheel sensor rotor.
• Do not drop or shock the wheel sensor or
the wheel sensor rotor.
1. Check:
• Rear wheel sensor
Refer to “MAINTENANCE OF THE FRONT
WHEEL SENSOR AND SENSOR ROTOR”
on page 4-15.
2. Check:
• Rear wheel sensor rotor
Refer to “MAINTENANCE OF THE FRONT
WHEEL SENSOR AND SENSOR ROTOR”
on page 4-15.
3. Measure:
• Wheel sensor rotor runout
Refer to “MAINTENANCE OF THE FRONT
WHEEL SENSOR AND SENSOR ROTOR”
on page 4-15.
EAS30164
ADJUSTING THE REAR WHEEL STATIC
BALANCE
• After replacing the tire, wheel or both, the rear
wheel static balance should be adjusted.
• Adjust the rear wheel static balance with the
brake disc and rear wheel drive hub installed.
1. Adjust:
• Rear wheel static balance
Refer to “ADJUSTING THE FRONT WHEEL
STATIC BALANCE” on page 4-15.

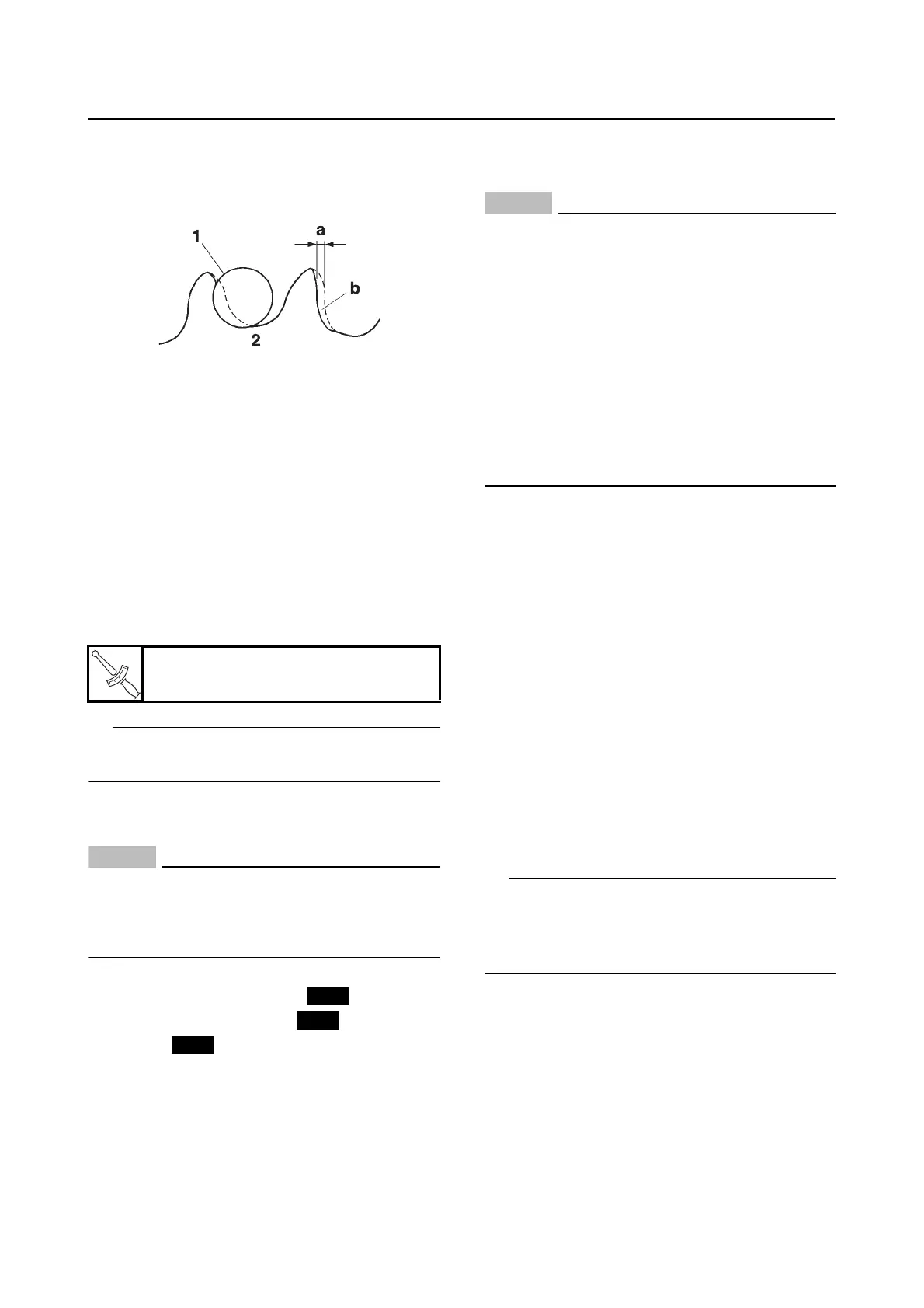

b. Correct
1. Drive chain roller
2. Rear wheel sprocket
Rear wheel sprocket nut
80 N·m (8.0 kgf·m, 59 lb·ft)
