9-40
ABS (Anti-lock Brake System)
EAS32891

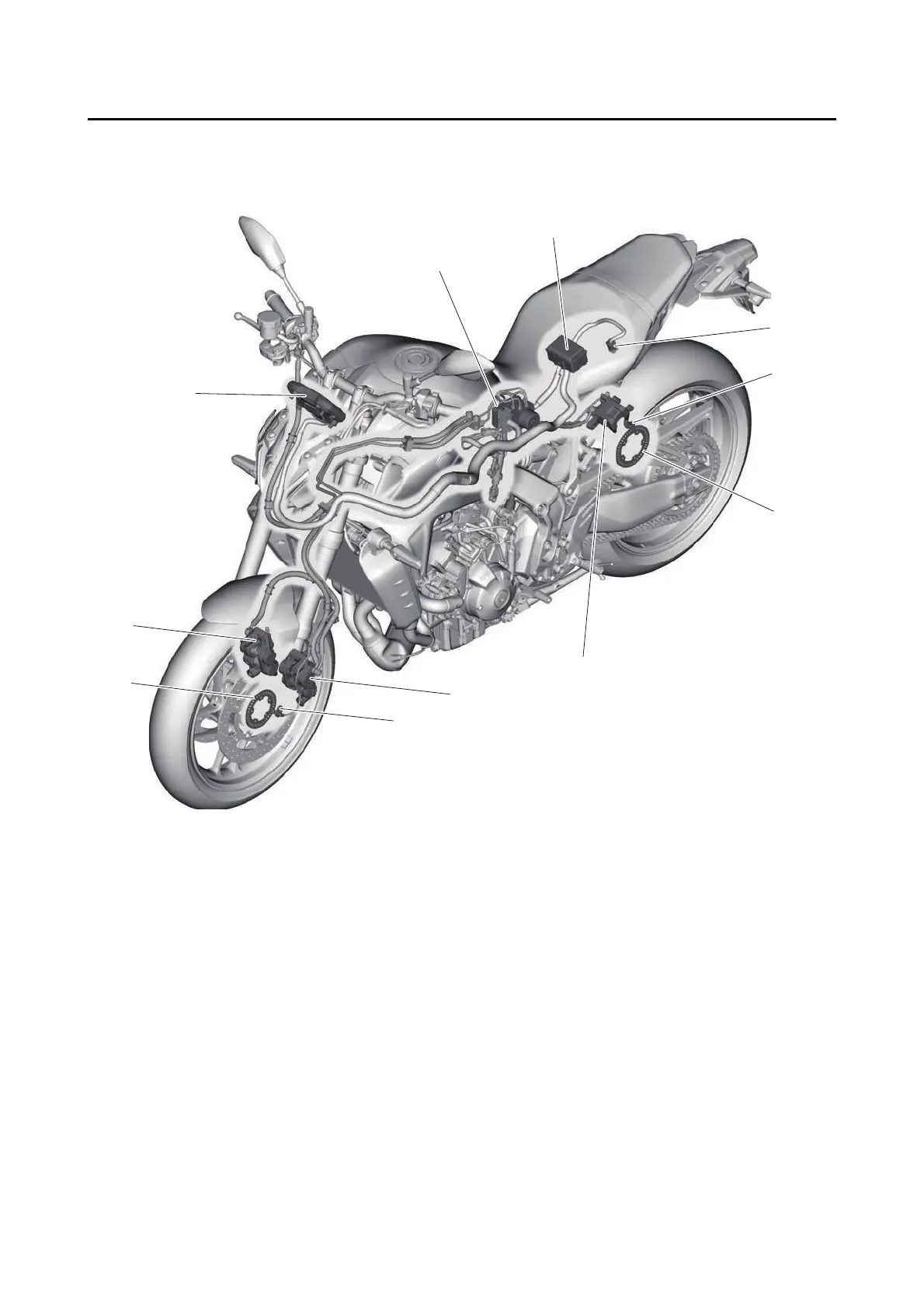

ABS COMPONENTS CHART
1
2
3
4
5
6
7
8
9
10
11
1. Meter assembly
2. Hydraulic unit assembly (ABS ECU)
3. Fuse box (ABS motor fuse, ABS ECU fuse,
ABS solenoid fuse)
4. YDT coupler
5. Rear wheel sensor
6. Rear wheel sensor rotor
7. Rear brake caliper
8. Front brake caliper (left)
9. Front wheel sensor
10. Front wheel sensor rotor
11. Front brake caliper (right)
