5-2
LUBRICATION SYSTEM CHART AND DIAGRAMS
EAS32363

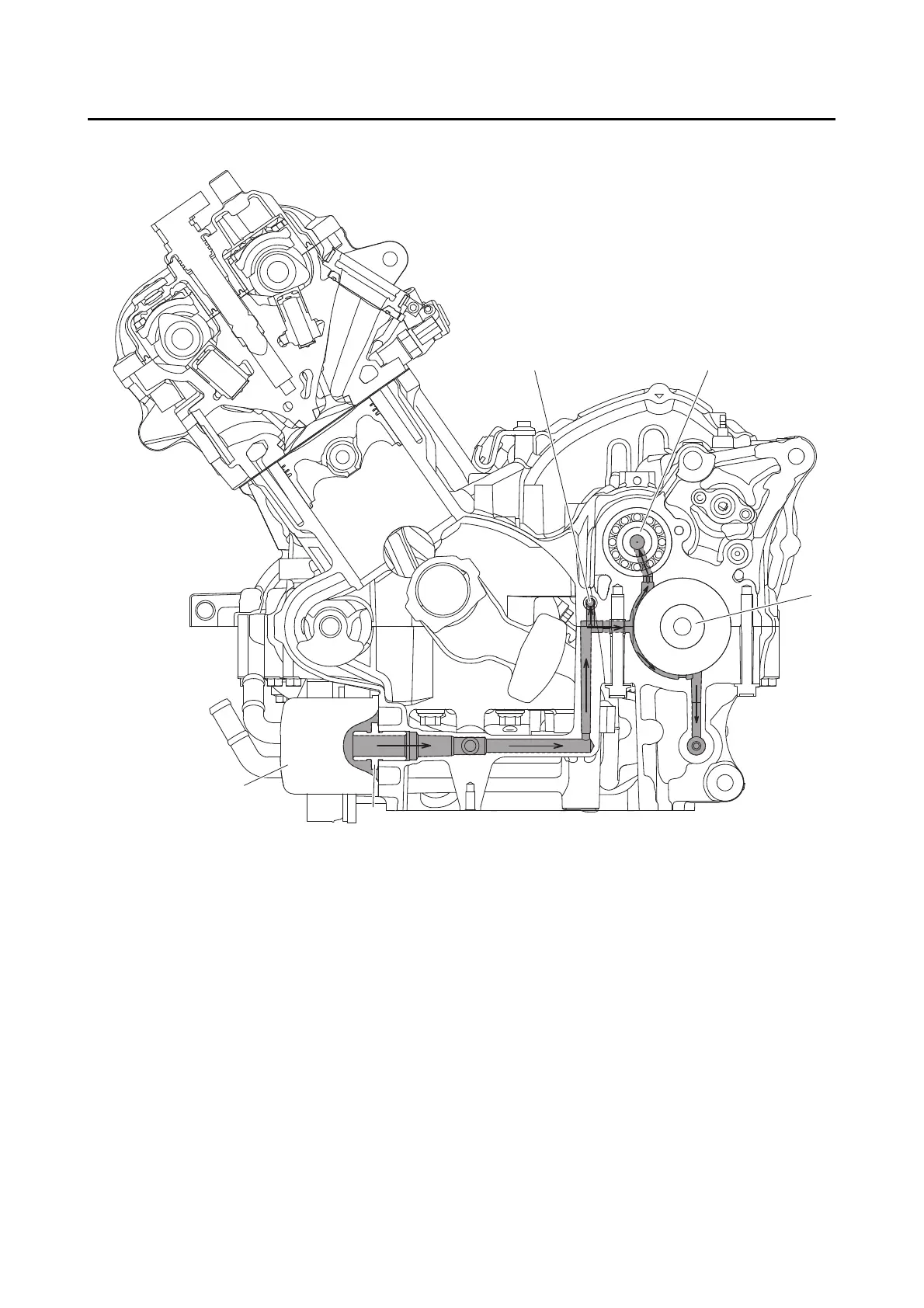

LUBRICATION DIAGRAMS
1
2
35
4
1. Oil filter cartridge union bolt
2. Oil filter cartridge
3. Oil delivery pipe
4. Drive axle
5. Main axle
