5-3

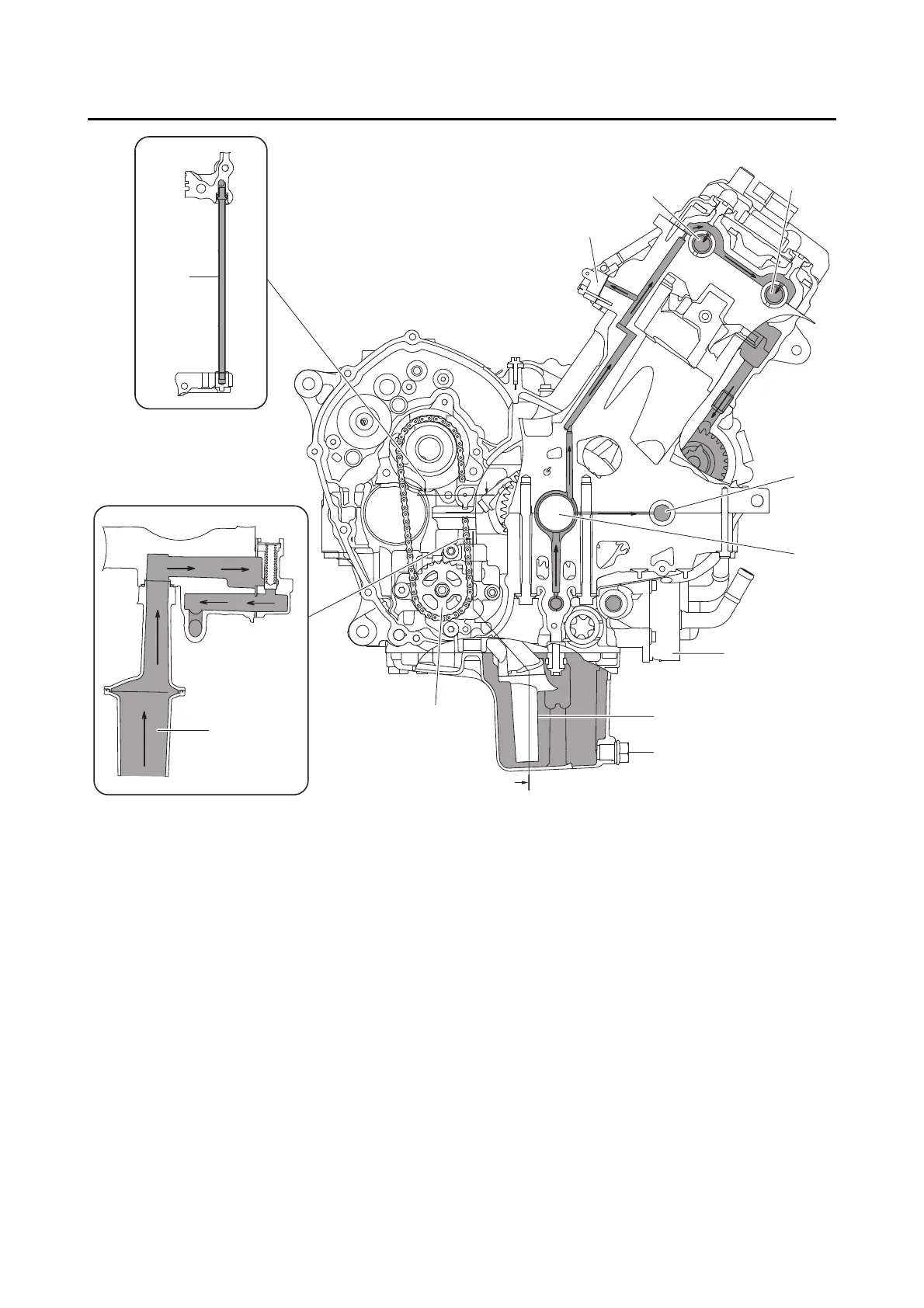

LUBRICATION SYSTEM CHART AND DIAGRAMS
10
7
4
5
6
79
8
2
1
3
1. Timing chain tensioner
2. Intake camshaft
3. Exhaust camshaft
4. Balancer shaft
5. Crankshaft
6. Oil cooler
7. Oil strainer
8. Oil drain bolt
9. Oil pump driven sprocket
10. Oil delivery pipe
