Yamaha MT-09 2021 - Rear Wheel

4-18

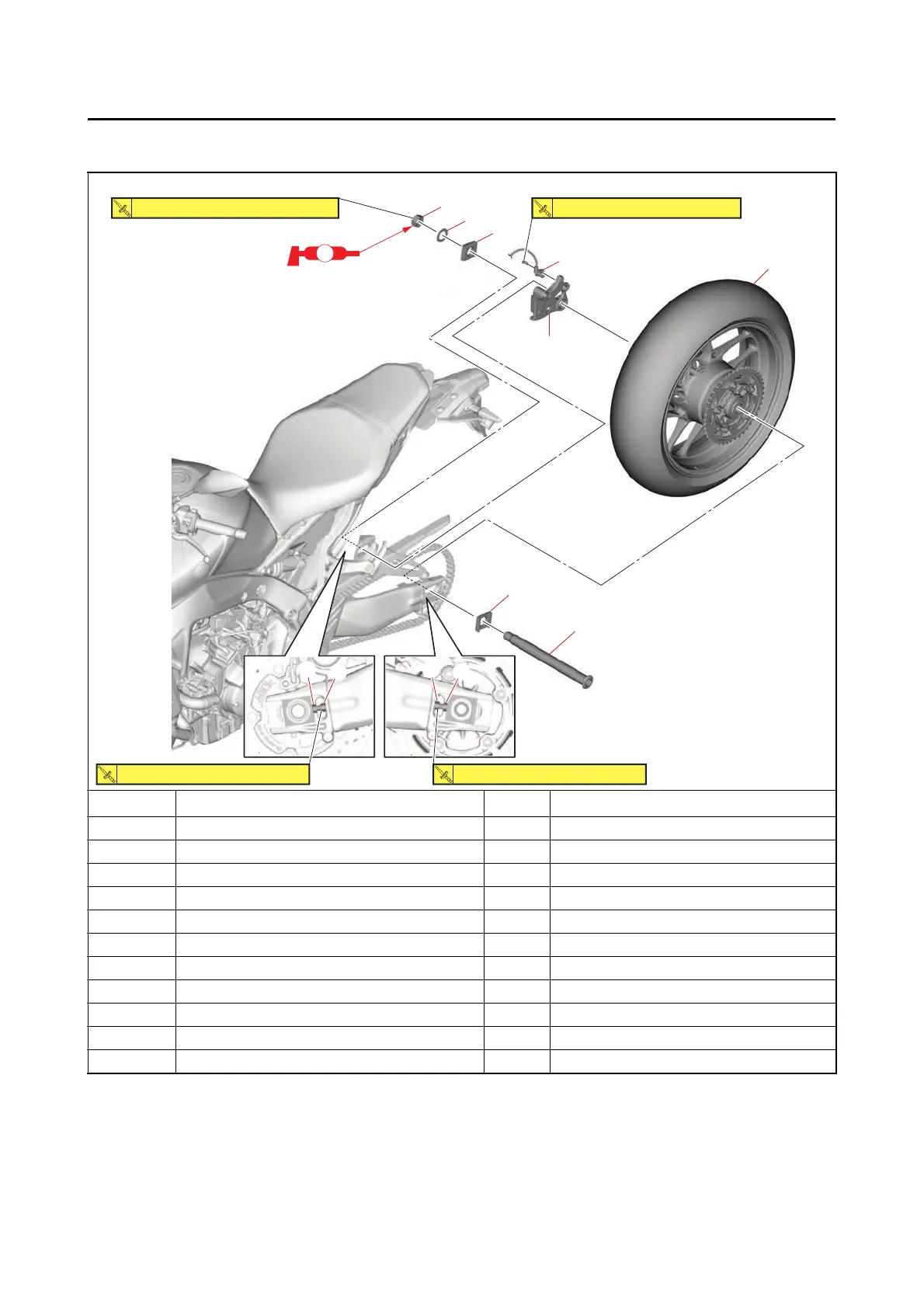

REAR WHEEL
EAS20029
REAR WHEEL
Removing the rear wheel
Order Job/Parts to remove Q’ty Remarks
Rear brake caliper Refer to “REAR BRAKE” on page 4-37.
1 Rear wheel sensor 1
2 Locknut 2 Loosen.
3 Adjusting bolt 2 Loosen.
4 Wheel axle nut 1
5Washer 1
6 Wheel axle 1
7 Adjusting block (left) 1
8 Adjusting block (right) 1
9 Rear wheel 1
10 Brake caliper bracket assembly 1
LS
4
5
8
1
10
9
7
6
23
32
105 N・m (10.5 kgf・m, 77 lb・ft) 7 N・m (0.7 kgf・m, 5.2 lb・ft)
16 N・m (1.6 kgf・m, 12 lb・ft)16 N・m (1.6 kgf・m, 12 lb・ft)
