Yamaha MT-09 2021 - Steering Head

4-74

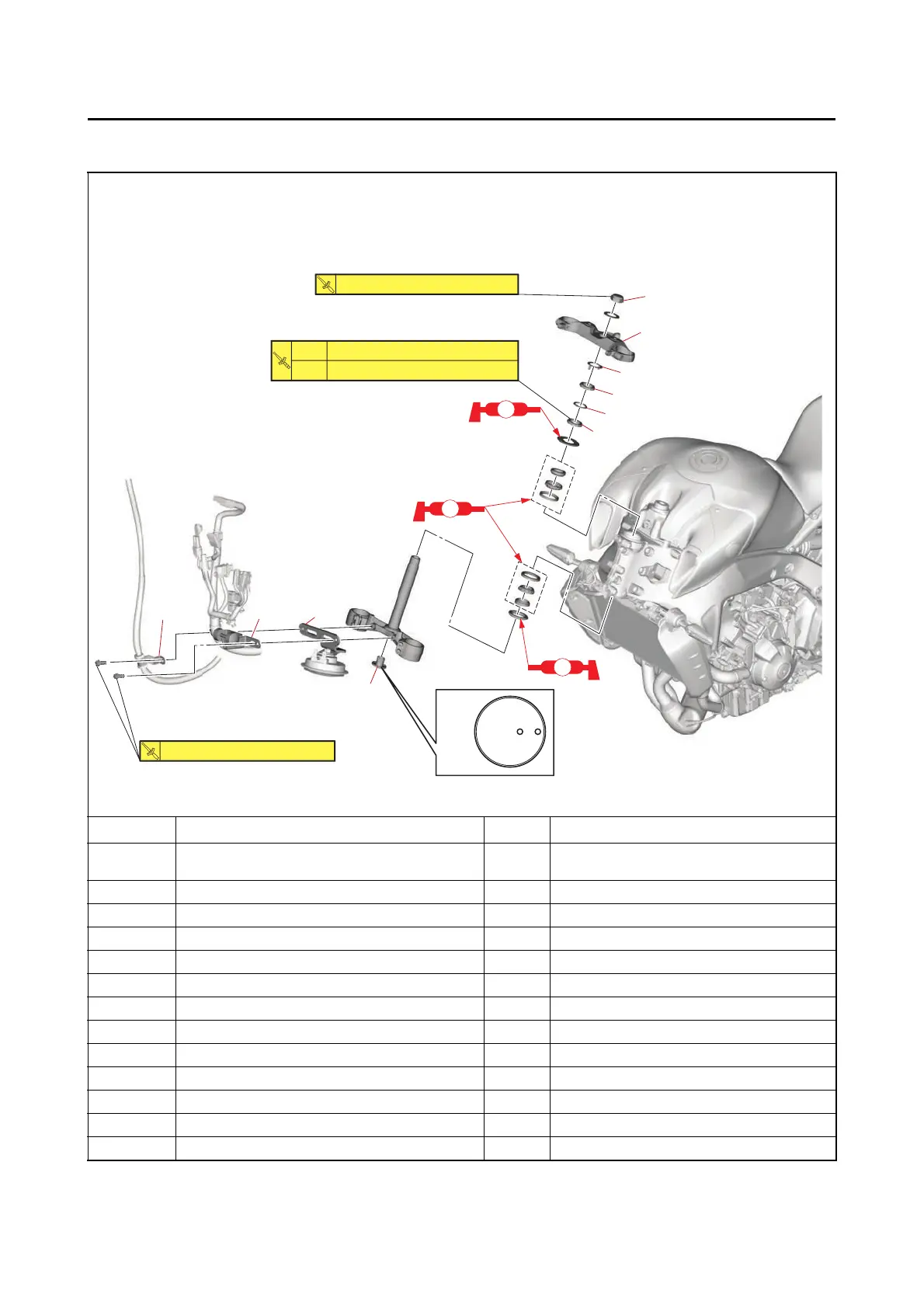

STEERING HEAD
EAS20035
STEERING HEAD
Removing the lower bracket
* Loosen the lower ring nut completely, and then tighten it to specification.
Order Job/Parts to remove Q’ty Remarks
Meter assembly bracket
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Handlebar Refer to “HANDLEBAR” on page 4-57.
Front fork legs Refer to “FRONT FORK” on page 4-63.
1 Front brake hose bracket 1
2 Headlight bracket 1
3 Horn bracket 1
4 Lower bracket cap 1
5 Steering stem nut 1
6 Upper bracket 1
7 Lock washer 1
8 Upper ring nut 1
9 Rubber washer 1
10 Lower ring nut 1
110 N
•
m (11 kgf
•
m, 81 lb
•
ft)
T
.R.
7 N
•
m (0.7 kgf
•
m, 5.2 lb
•
ft)
T
.R.
1st
*2nd
52 N・m (5.2 kgf・m, 38 lb・ft)
14 N・m (1.4 kgf・m, 10 lb・ft)
10
9
8
7
6
5
4
123
FWD
LS
LS
LS
