Yamaha MT-09 2021 - Page 191

4-58
HANDLEBAR

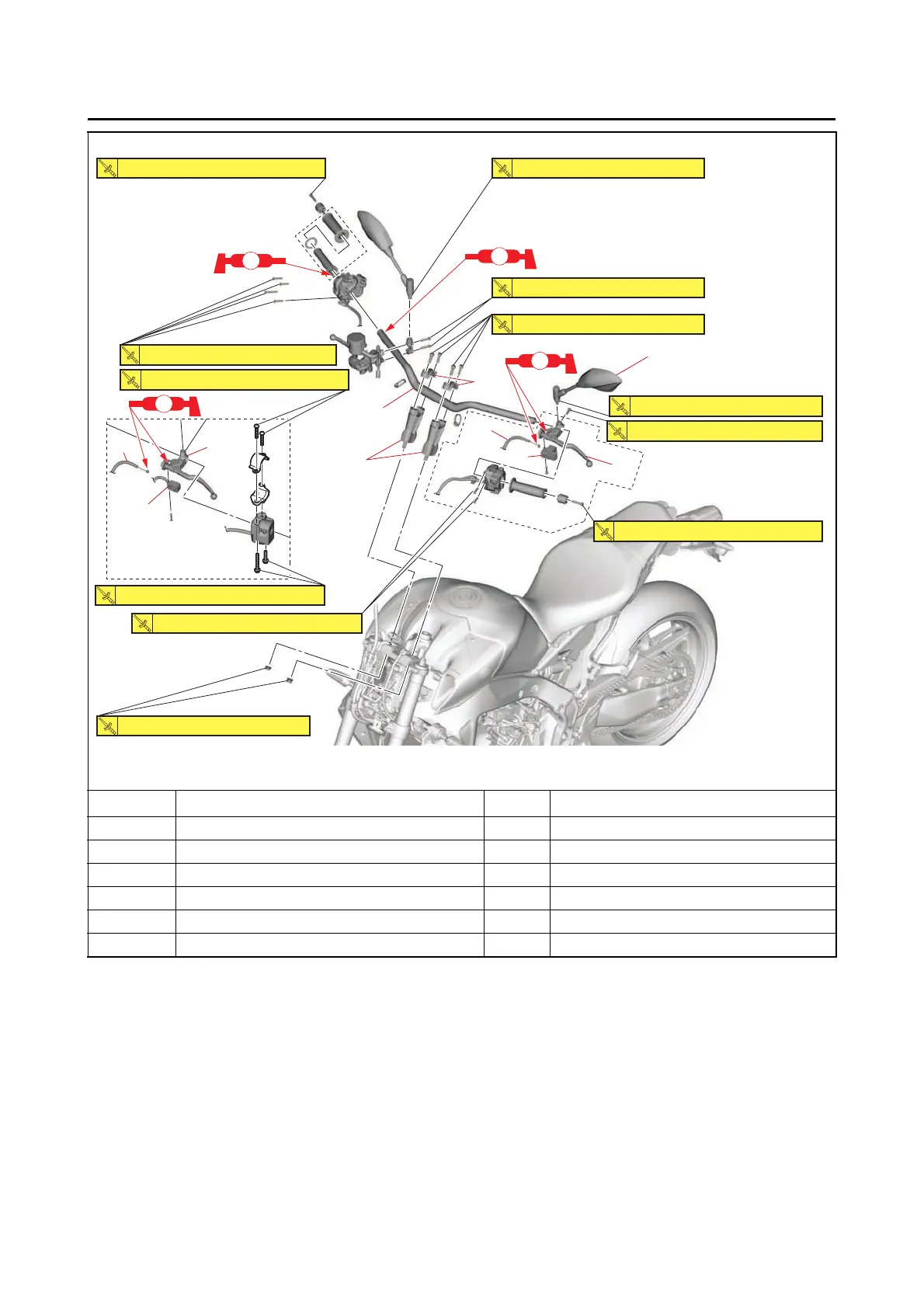

Removing the handlebar
* For MTN890
** For MTN890D
Order Job/Parts to remove Q’ty Remarks
14 Clutch cable 1 Disconnect.
15 Clutch lever holder 1
16 Clutch switch 1
17 Upper handlebar holder 2
18 Handlebar 1
19 Lower handlebar holder 2
3.8 N・m (0.38 kgf・m, 2.8 lb・ft)
3.8 N・m (0.38 kgf・m, 2.8 lb・ft)
17 N・m (1.7 kgf・m, 13 lb・ft)
16 N・m (1.6 kgf・m, 12 lb・ft)
22 N・m (2.2 kgf・m, 16 lb・ft)
17 N・m (1.7 kgf・m, 13 lb・ft)
11 N・m (1.1 kgf・m, 8.1 lb・ft)
40 N・m (4.0 kgf・m, 30 lb・ft)
1.8 N・m (0.18 kgf・m, 1.3 lb・ft)
1.8 N・m (0.18 kgf・m, 1.3 lb・ft)
3.5 N・m (0.35 kgf・m, 2.6 lb・ft)
1.8 N・m (0.18 kgf・m, 1.3 lb・ft)
8
17
14
15
15
14
16
16
19
18
**
*
LS
LS
LS
LS
