Yamaha MT-09 2021 - Page 139

4-6
GENERAL CHASSIS (1)

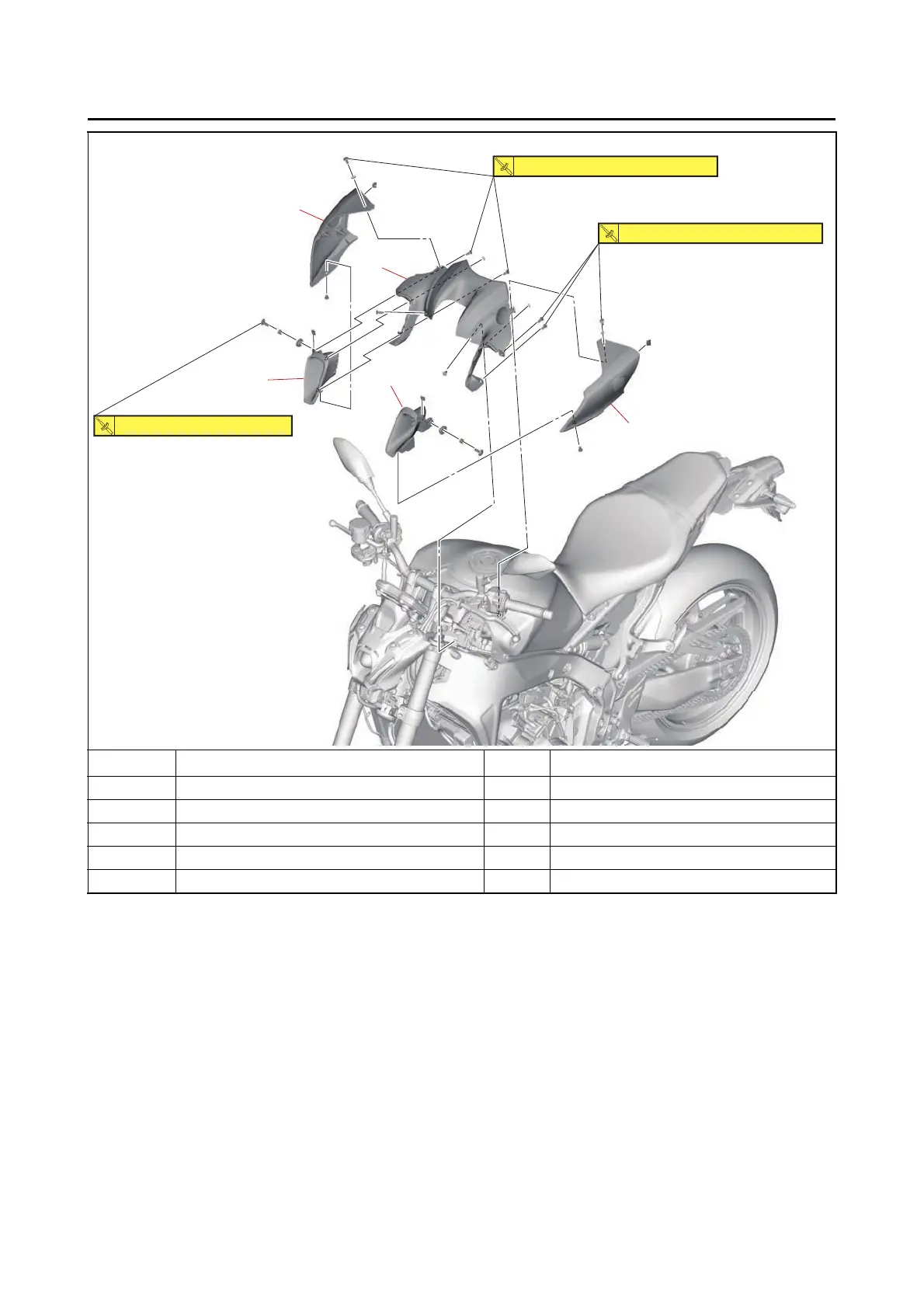

Removing the air scoop and fuel tank center cover
Order Job/Parts to remove Q’ty Remarks
1 Fuel tank side cover (left) 1
2 Fuel tank side cover (right) 1
3 Fuel tank center cover 1
4 Air scoop (left) 1
5 Air scoop (right) 1
5
3
4
2
1
1.0 N
•
m (0.10 kgf
•
m, 0.73 lb
•
ft)
T.R.
7 N
•
m (0.7 kgf
•
m, 5.2 lb
•
ft)
T.R.
1.0 N
•
m (0.10 kgf
•
m, 0.73 lb
•
ft)
T.R.
