7-5
THROTTLE BODIES
EAS20070
THROTTLE BODIES

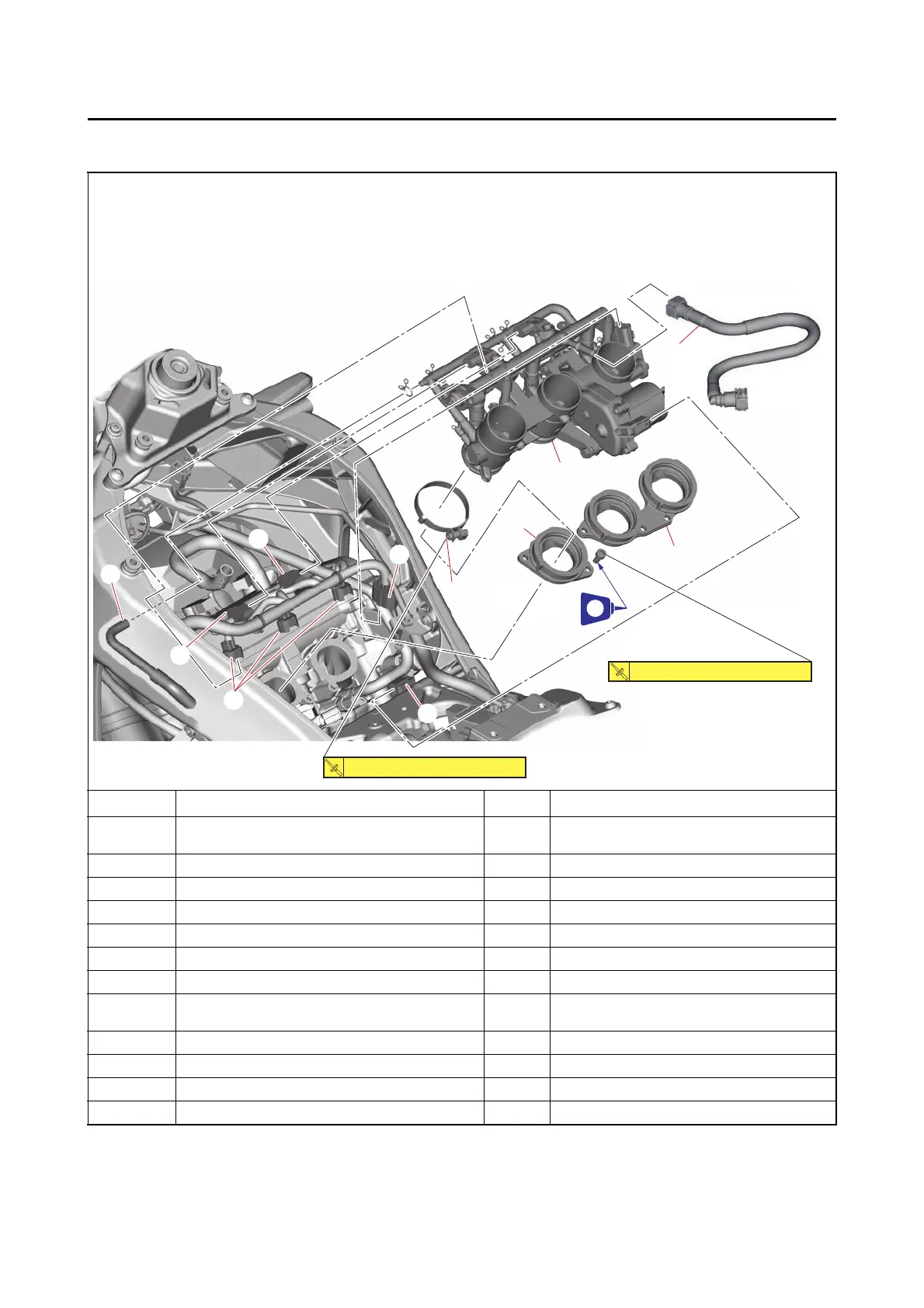

Removing the throttle bodies
Order Job/Parts to remove Q’ty Remarks
Air filter case
Refer to “GENERAL CHASSIS (2)” on
page 4-10.
1 Fuel hose 1
2 Intake air pressure sensor 1 coupler 1 Disconnect.
3 Intake air pressure sensor 2 coupler 1 Disconnect.
4 Injector coupler 3 Disconnect.
5 Throttle servo motor coupler 1 Disconnect.
6 Throttle position sensor coupler 1 Disconnect.
7
Canister purge hose (purge cut valve solenoid
to hose joint)
1 Disconnect.
8 Throttle body joint clamp screw 3 Loosen.
9 Throttle body assembly 1
10 Throttle body joint 1
11 Throttle body joint 1
LT
10
11
1
8 (3)
9
6
2
3
7
4
5
3 N
•
m (0.30 kgf
•
m, 2.2 lb
•
ft)
T.R.
10 N
•
m (1.0 kgf
•
m, 7.4 lb
•
ft)
T.R.
