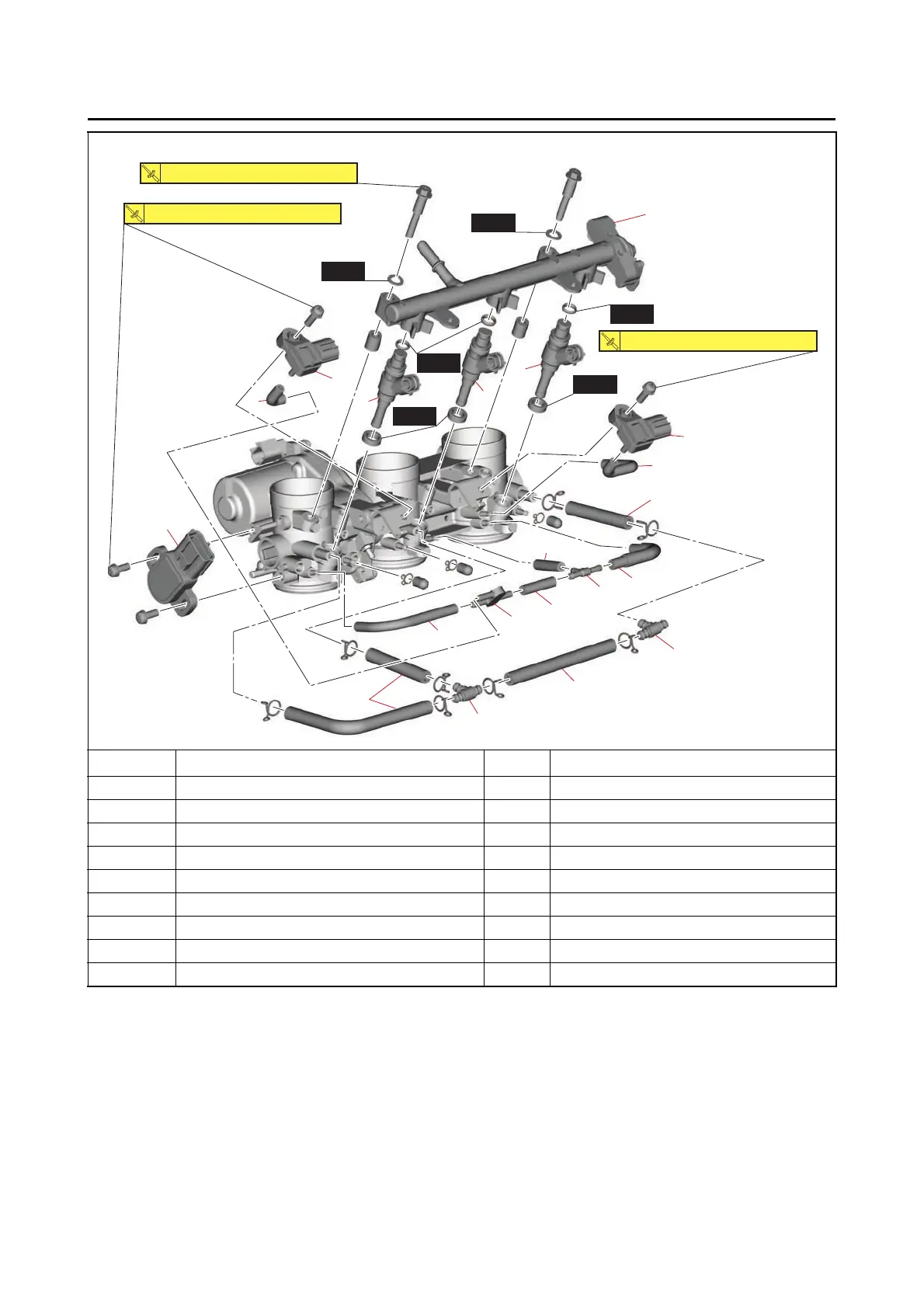

THROTTLE BODIES
Removing the injectors
Order Job/Parts to remove Q’ty Remarks
1 Fuel rail 1
2Injector 3
3 Intake air pressure sensor 2 1
4 Intake air pressure sensor 1 1
5 Throttle position sensor 1
6 Negative pressure hose 6
7 Hose joint 2
8 Canister purge hose 4
9 Hose joint 2
8
6
6
6
7
9
9
8
7
8
6
6
5
3
2
2
2
4
6
New
New
New
New
New
New
1
3.5 N
•
m (0.35 kgf
•
m, 2.6 lb
•
ft)
T.R.
3.5 N
•
m (0.35 kgf
•
m, 2.6 lb
•
ft)
T.R.
3.5 N
•
m (0.35 kgf
•
m, 2.6 lb
•
ft)
T.R.
