4-3
GENERAL CHASSIS (1)

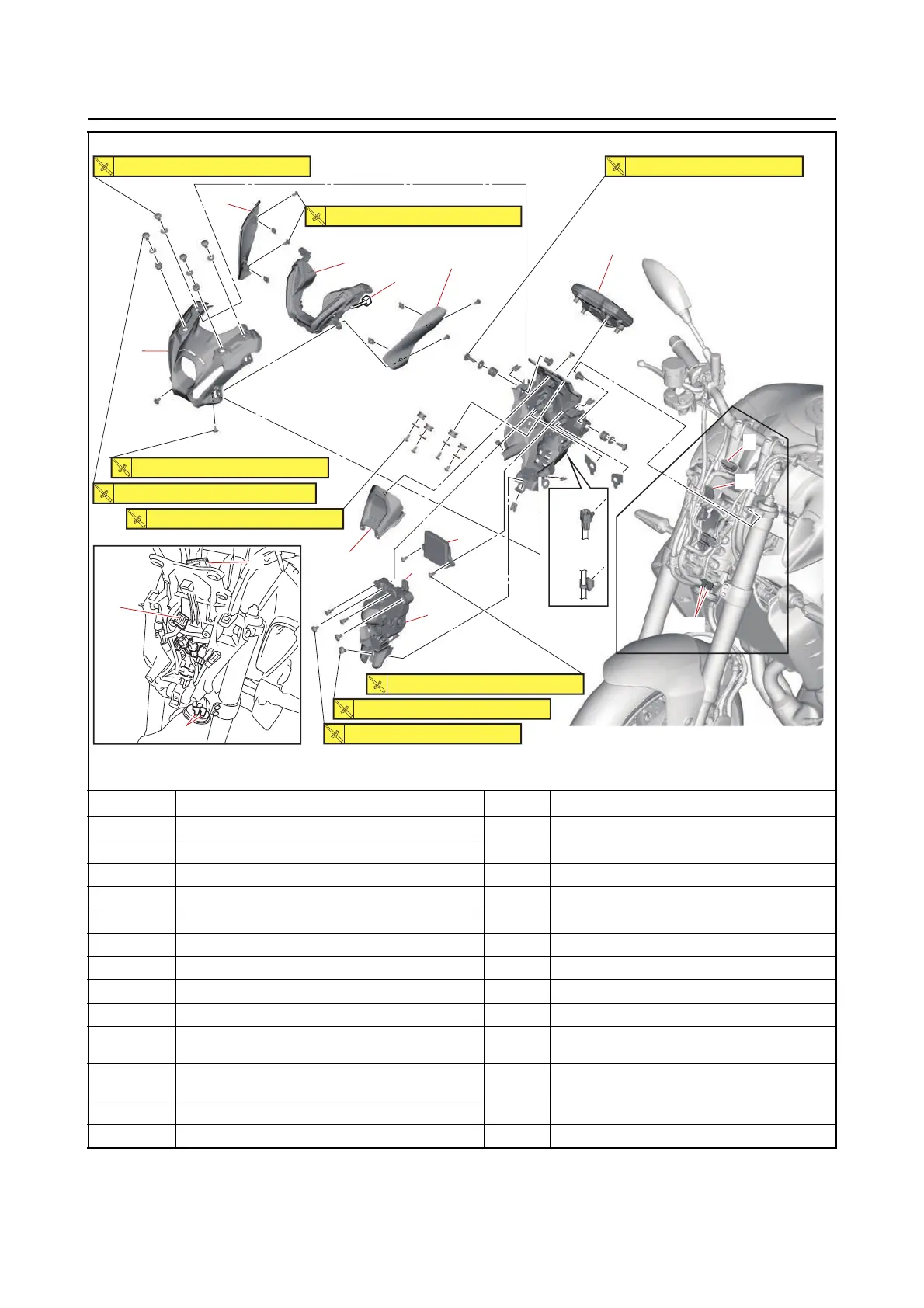

Removing the headlight assembly, auxiliary light and meter assembly
* For MTN890
** For MTN890D
Order Job/Parts to remove Q’ty Remarks
1 Auxiliary light coupler 1 Disconnect.
2 Headlight front cover 1
3 Headlight side cover (left) 1
4 Headlight side cover (right) 1
5 Auxiliary light 1
6 Meter assembly coupler 1 Disconnect.
7 Meter assembly 1
8 Headlight control unit cover 1
9 Headlight assembly 1
10
Headlight control unit coupler (headlight assem-
bly side)
1 Disconnect.
11
Headlight control unit coupler (wire harness
side)
1 Disconnect.
12 Headlight control unit 1
13 Horn lead connector 2 Disconnect.
1
(4)
(3)
6
11
13
10
12
3
7
5
2
4
8
9
11
6
**
*
(6)
**
*
13
1.5 N
•
m (0.15 kgf
•
m, 1.1 lb
•
ft)
T.R.
4.3 N
•
m (0.43 kgf
•
m, 3.2 lb
•
ft)
T.R.
4.3 N
•
m (0.43 kgf
•
m, 3.2 lb
•
ft)
T.R.
1.5 N
•
m (0.15 kgf
•
m, 1.1 lb
•
ft)
T.R.
0.7 N
•
m (0.07 kgf
•
m, 0.52 lb
•
ft)
T.R.
7 N
•
m (0.7 kgf
•
m, 5.2 lb
•
ft)
T.R.
7 N
•
m (0.7 kgf
•
m, 5.2 lb
•
ft)
T.R.
1.8 N
•
m (0.18 kgf
•
m, 1.3 lb
•
ft)
T.R.
1.8 N
•
m (0.18 kgf
•
m, 1.3 lb
•
ft)
T.R.
