4-36
FRONT BRAKE

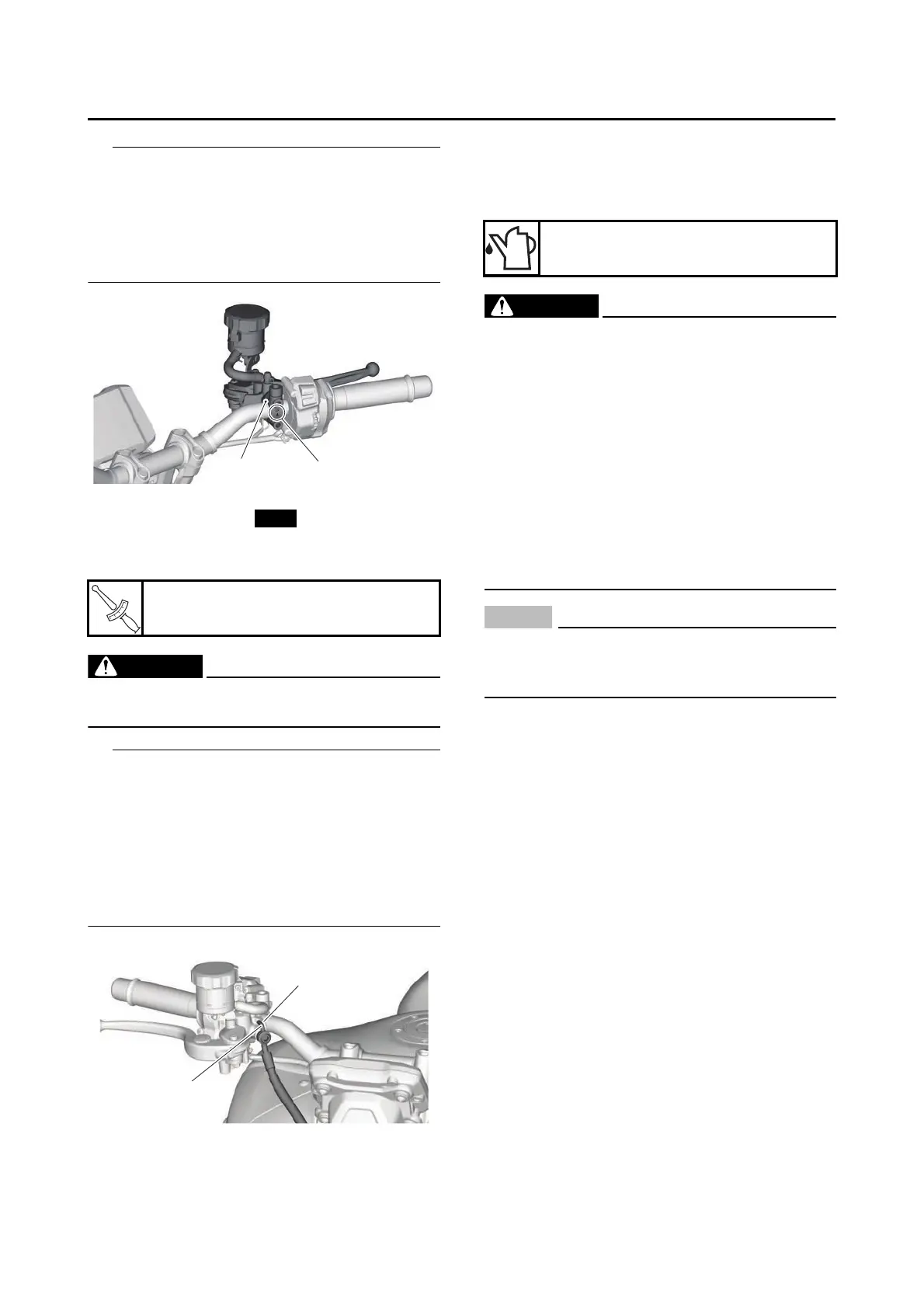

• Install the front brake master cylinder holder
with the “UP” mark “a” facing up.
• Align the end of the front brake master cylinder
holder with the punch mark “b” on the handle-
bar.
• First, tighten the upper bolt, then the lower bolt.
2. Install:
• Brake hose gasket
• Brake hose
• Brake hose union bolt
EWA13531
Proper brake hose routing is essential to in-
sure safe vehicle operation.
• When installing the brake hose onto the master
cylinder, make sure the projection “a” on the
brake hose touches the projection “b” on the
master cylinder.
• Turn the handlebar to the left and right to make
sure the brake hose does not touch other parts
(e.g., wire harness, cables, leads). Correct if
necessary.
3. Fill:
• Brake master cylinder reservoir
(with the specified amount of the specified
brake fluid)
WARNING
EWA13540
• Use only the designated brake fluid. Other
brake fluids may cause the rubber seals to
deteriorate, causing leakage and poor
brake performance.
• Refill with the same type of brake fluid that
is already in the system. Mixing brake fluids
may result in a harmful chemical reaction,
leading to poor brake performance.
• When refilling, be careful that water does
not enter the brake master cylinder reser-
voir. Water will significantly lower the boil-
ing point of the brake fluid and could cause
vapor lock.
NOTICE
ECA13540
Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean up
any spilt brake fluid immediately.
4. Bleed:
• Brake system
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM (ABS)” on page 3-15.
5. Check:
• Brake fluid level
Below the minimum level mark → Add the
specified brake fluid to the proper level.
Refer to “CHECKING THE BRAKE FLUID
LEVEL” on page 3-13.
6. Check:
• Brake lever operation
Soft or spongy feeling → Bleed the brake sys-
tem.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM (ABS)” on page 3-15.
Front brake hose union bolt
30 N·m (3.0 kgf·m, 22 lb·ft)
Specified brake fluid
DOT 4
