Yamaha MT-09 2021 - Page 172

4-39
REAR BRAKE

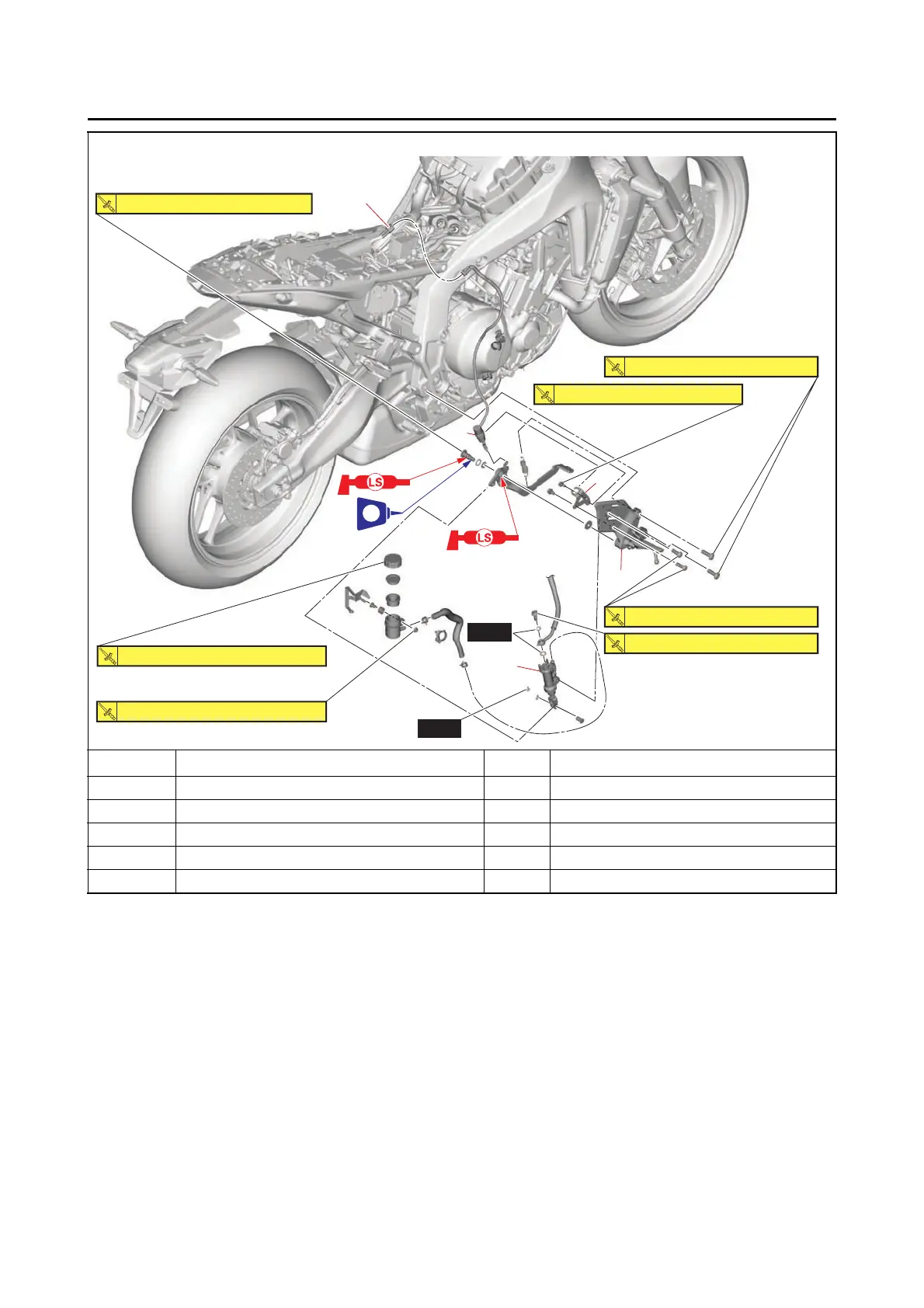

Removing the rear brake master cylinder
Order Job/Parts to remove Q’ty Remarks
10 Footrest assembly (right) 1
11 Rear brake master cylinder assembly 1
12 Rear brake light switch bracket 1
13 Rear brake light switch coupler 1 Disconnect.
14 Rear brake light switch 1
11
10
12
14
13
3.8 N・m (0.38 kgf・m, 2.8 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
New
30 N・m (3.0 kgf・m, 22 lb・ft)
30 N・m (3.0 kgf・m, 22 lb・ft)
23 N・m (2.3 kgf・m, 17 lb・ft)
28 N・m (2.8 kgf・m, 21 lb・ft)
5 N・m (0.5 kgf・m, 3.7 lb・ft)
New
LT
