4-61

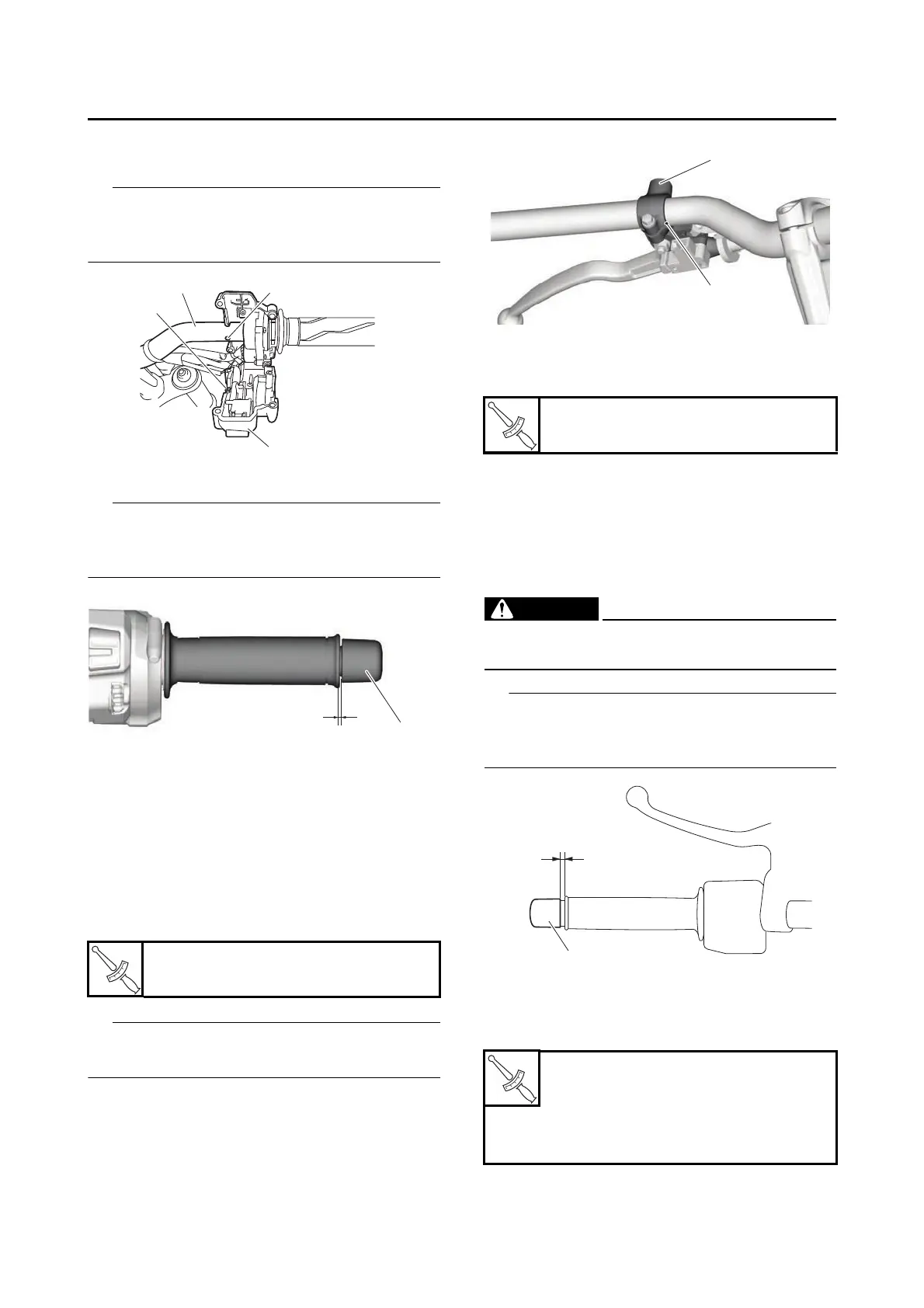

HANDLEBAR
c. Install the handlebar switch (right, rear side)
“4”.
TIP
Align the projection “c” on the handlebar switch
(right, rear side) with the hole “d” in the handle-
bar “3”.
d. Install the grip end (right) “5”.
TIP
There should be 1–3 mm (0.04–0.12 in) of clear-
ance “e” between the throttle grip and the grip
end.
5. Install:
• Front brake master cylinder assembly
Refer to “INSTALLING THE FRONT BRAKE
MASTER CYLINDER” on page 4-35.
6. Install:
• Clutch lever holder “1”
• Clutch cable
TIP
Align the center of slit on the clutch lever holder
with the punch mark “a” on the handlebar.
7. Install:
• Handlebar grip
• Grip end (left) “1”
a. Apply a thin coat of rubber adhesive onto
the end of the handlebar (left).
b. Slide the handlebar grip over the end of the
handlebar (left).
c. Wipe off any excess rubber adhesive with a
clean rag.
WARNING
EWA13700
Do not touch the handlebar grip until the rub-
ber adhesive has fully dried.
TIP
There should be 1–3 mm (0.04–0.12 in) of clear-
ance “a” between the handlebar grip and the grip
end.
8. Install:
• Handlebar switch holder (for MTN890D)
• Handlebar switch screw (left)
Clutch lever holder pinch bolt
11 N·m (1.1 kgf·m, 8.1 lb·ft)
c
3
4
d
e5
T
R
.
.
Grip end bolt
3.8 N·m (0.38 kgf·m, 2.8 lb·ft)
Handlebar switch holder screw
(for MTN890D)
3.5 N·m (0.35 kgf·m, 2.6 lb·ft)
Handlebar switch screw
1.8 N·m (0.18 kgf·m, 1.3 lb·ft)
1
a
T
R
.
.
1
a
G088918
T
R
.
.
