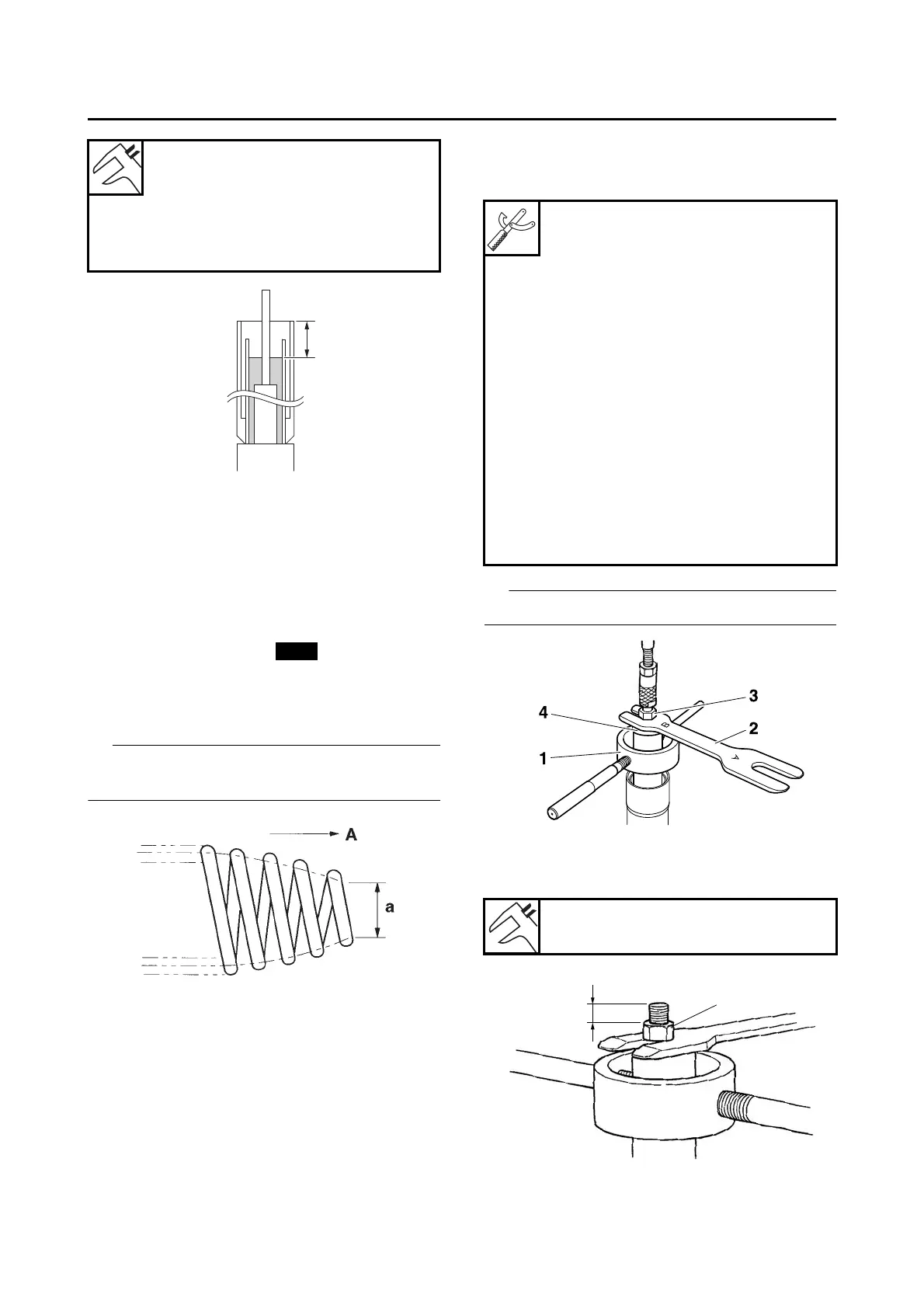

FRONT FORK
15.Install:
• Fork spring
• Spacer
• Locknut
• Damper adjusting rod (damper rod assem-
bly)
• Washer
• Cap bolt
(along with the O-ring )
a. Remove the rod puller and rod puller at-
tachment.
b. Install the fork spring.
TIP
Install the fork spring with the smaller diameter
“a” facing up “A”.
c. Install the locknut all the way onto the
damper rod assembly.
d. Install the rod puller and rod puller attach-
ment.
e. Install the spacer and washer.
f. Install the fork spring compressor.
g. Press down on the spacer with the fork
spring compressor “1”.
h. Pull up the rod puller and install the rod
holder “2” between the locknut “3” and the
washer “4”.
TIP
Use the side of the rod holder that is marked “B”.
i. Remove the rod puller and rod puller at-
tachment.
j. Position the locknut “3” as distance “b”.
k. Set the cap bolt distance “c” to specifica-
tion.
Level (left)
107 mm (4.2 in) (MTN890)
110 mm (4.3 in) (MTN890D)
Level (right)
107 mm (4.2 in) (MTN890)
110 mm (4.3 in) (MTN890D)
a
G088930
New
G088931
Rod puller
90890-01437
Universal damping rod bleeding
tool set
YM-A8703
Rod puller attachment (M10 long)
90890-01578
Universal damping rod bleeding
tool set
YM-A8703
Fork spring compressor
90890-01441
Fork spring compressor
YM-01441
Rod holder
90890-01434
Damper rod holder double ended
YM-01434
Distance “b”
12 mm (0.47 in)
3
b
