SWINGARM
TIP
When installing the oil seals to the swingarm,
face the character stamp of the oil seals outside.
3. Install:
• Swingarm
• Pivot shaft
4. Install:
• Rear wheel
Refer to “REAR WHEEL” on page 4-18.
5. Adjust:
• Drive chain slack
Refer to “DRIVE CHAIN SLACK” on page 3-
18.

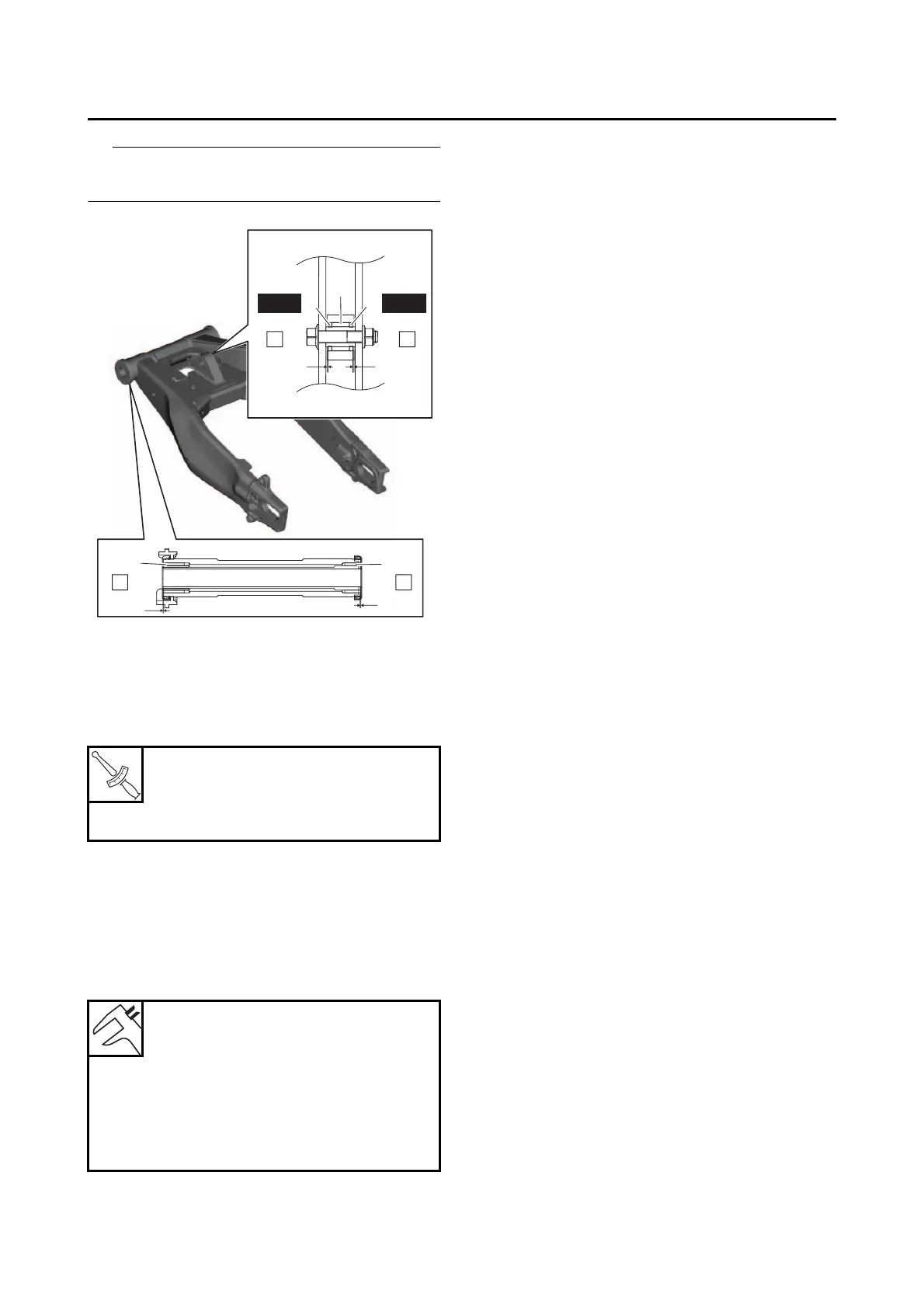

A. Left side
B. Right side
Relay arm nut
44 N·m (4.4 kgf·m, 32 lb·ft)
Pivot shaft nut
105 N·m (10.5 kgf·m, 77 lb·ft)
Drive chain slack (Sidestand)
36.0–41.0 mm (1.42–1.61 in)
Drive chain slack (Maintenance
stand)
36.0–41.0 mm (1.42–1.61 in)
Drive chain slack limit (Side-
stand)
46.0 mm (1.81 in)
1
1
2
1
N
2
AB
aa
aa
A B
New New
