CHAIN DRIVE

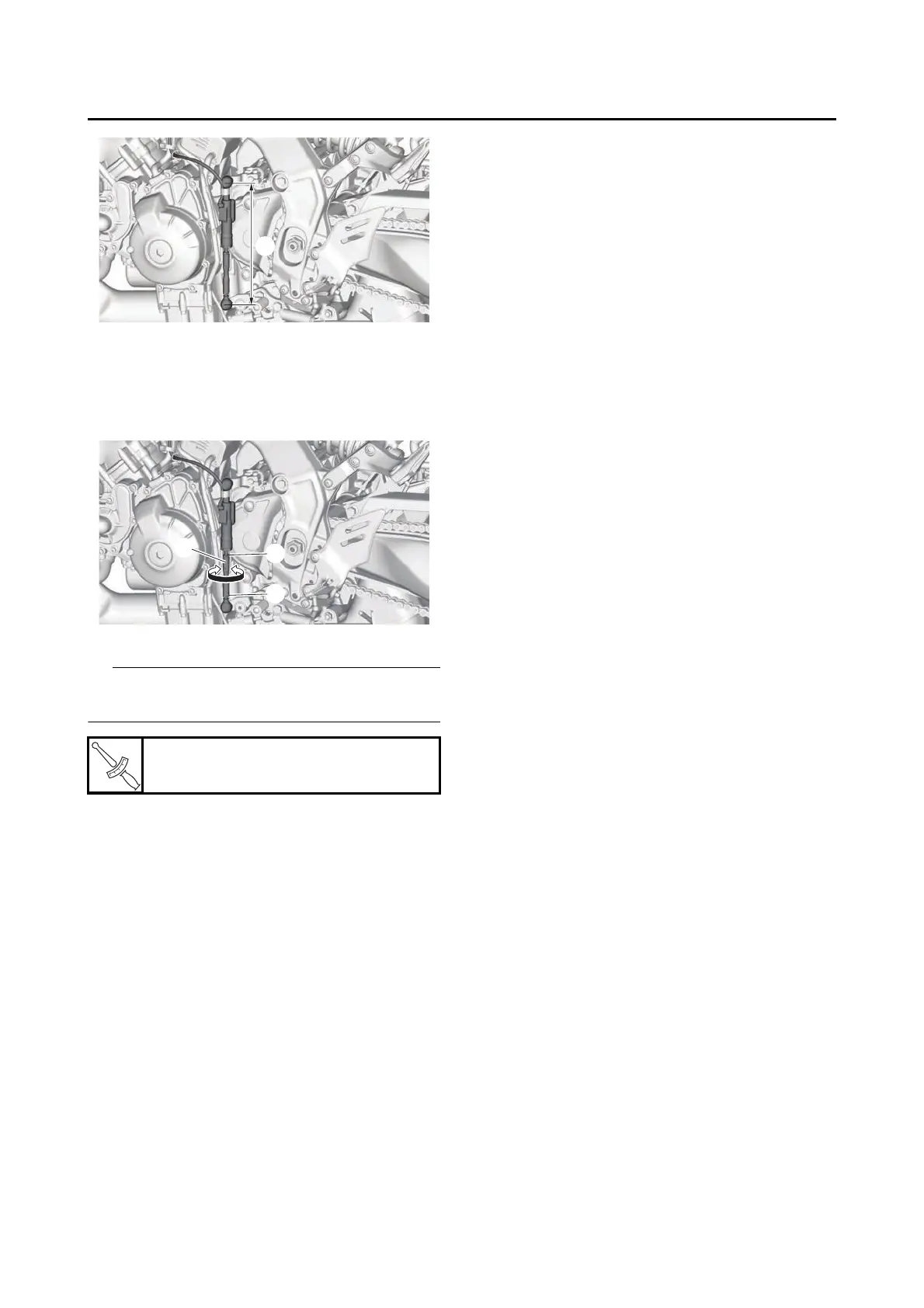

2. Adjust:
• Installed shift rod length
a. Loosen both locknuts “1”.
b. Turn the shift rod “2” until the specified in-
stalled shift rod length is obtained.
c. Tighten both locknuts.
TIP
Be sure to place the shift rod joints in parallel.
The allowable twist of the shift rod joints is ±5°.
d. Make sure the installed shift rod length is
within specification.
Shift rod locknut
7 N·m (0.7 kgf·m, 5.2 lb·ft)
