Yamaha MT-09 2021 - Page 239

5-12

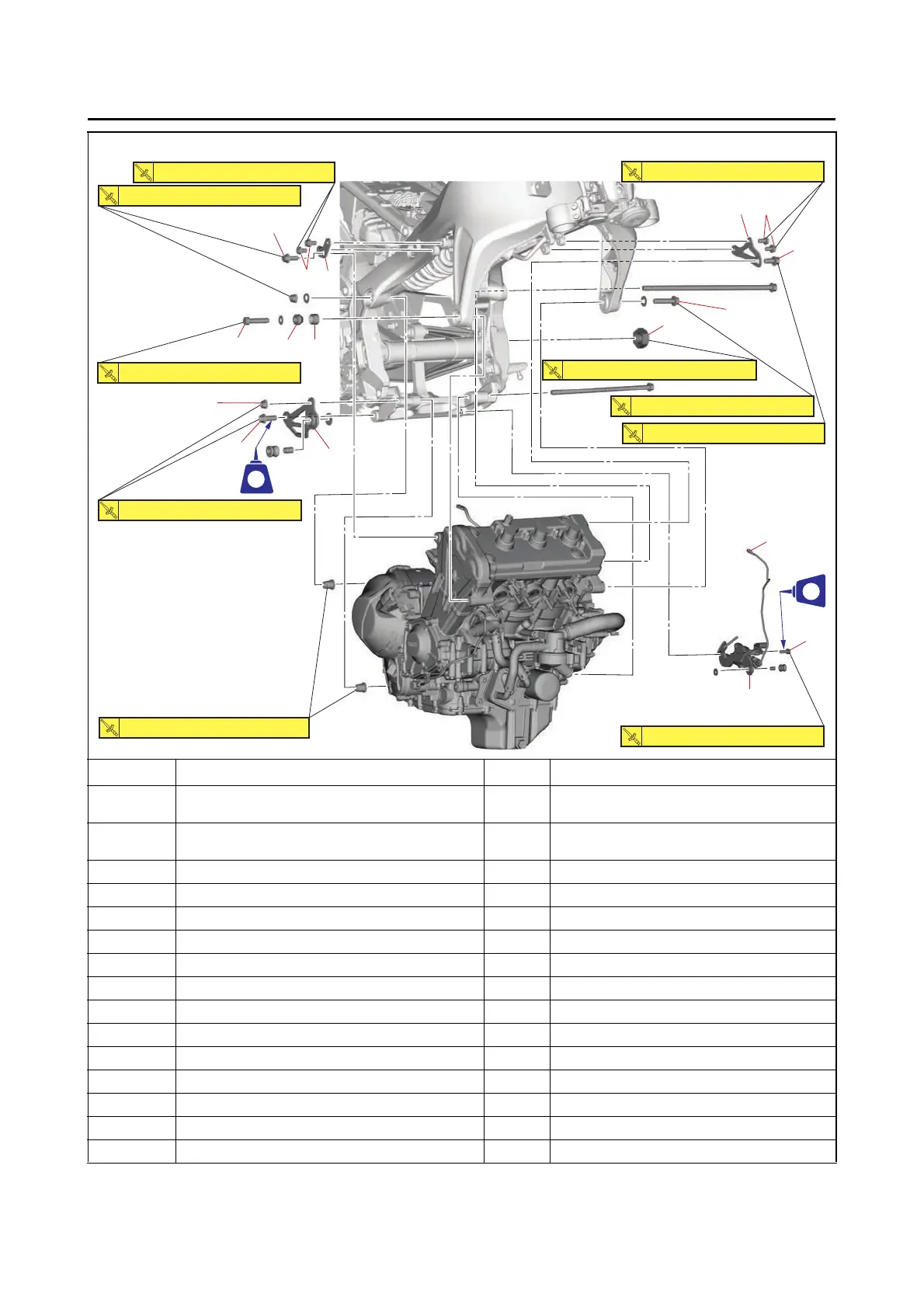

ENGINE REMOVAL
Removing the engine
Order Job/Parts to remove Q’ty Remarks
1
Engine mounting bolt (right front upper side)/
Engine mounting bolt (left front upper side)
1/1
2
Engine bracket bolt (right)/Engine bracket bolt
(left)
2/2
3 Engine bracket (right) 1
4 Engine bracket (left) 1
5 Engine mounting bolt (right front lower side) 1
6Collar 1
7Collar 1
8 Engine mounting bolt (left front lower side) 1
9 Engine mounting nut (lower) 1
10 Muffler bracket bolt 1
11 Muffler bracket 1
12 Sidestand switch coupler 1 Disconnect.
13 Muffler bracket bolt 1
14 Muffler bracket 1
15 Pivot shaft nut 1 Loosen.
1
23
9
10
5 6 7
11
4
1
8
15
13
12
14
2
LT
LT
LT
LT
25 N•m (2.5 kgf•m, 18 lb•ft)
25 N•m (2.5 kgf•m, 18 lb•ft)
45 N•m (4.5 kgf•m, 33 lb•ft)
60 N•m (6.0 kgf•m, 44 lb•ft)
60 N•m (6.0 kgf•m, 44 lb•ft)
105 N•m (10.5 kgf•m, 77 lb•ft)
45 N•m (4.5 kgf•m, 33 lb•ft)
55 N•m (5.5 kgf•m, 41 lb•ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
55 N•m (5.5 kgf•m, 41 lb•ft)
