5-40

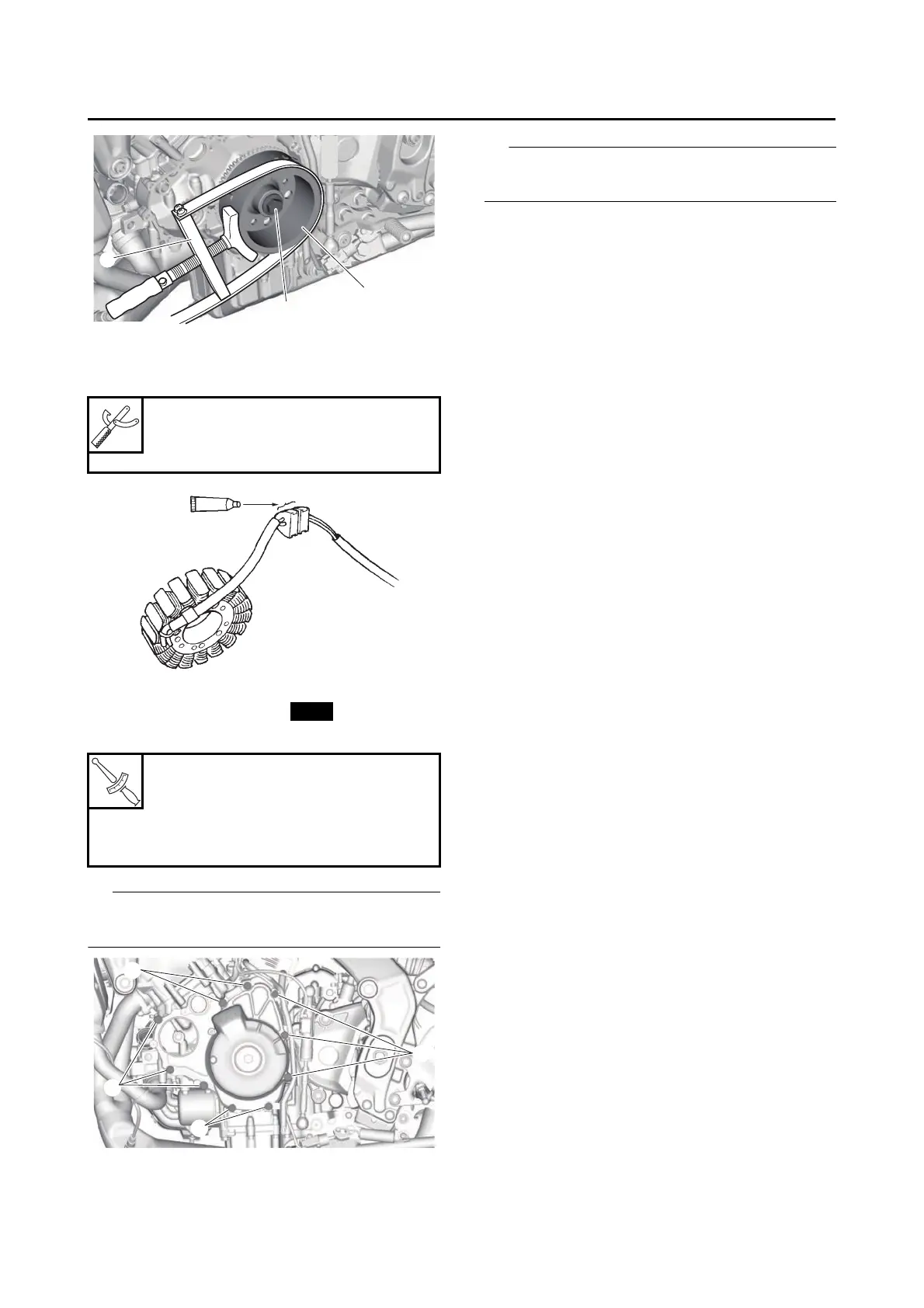

GENERATOR AND STARTER CLUTCH
3. Apply:
• Sealant
(onto the stator coil assembly lead grommet)
4. Install:
• Generator cover gasket
• Generator cover
TIP
Tighten the generator cover bolts in stages and
in a crisscross pattern.
5. Connect:
• Stator coil coupler
• Crankshaft position sensor coupler
TIP
To route the stator coil lead, refer to “CABLE
ROUTING” on page 2-15.
Yamaha bond No. 1215
90890-85505
Three bond No. 1215®
Generator cover bolt “1”
12 N·m (1.2 kgf·m, 8.9 lb·ft)
LOCTITE®
Generator cover bolt “2”
12 N·m (1.2 kgf·m, 8.9 lb·ft)
1
2
3
G088980
New
T
R
.
.
1
2
2
2
