5-42
ELECTRIC STARTER

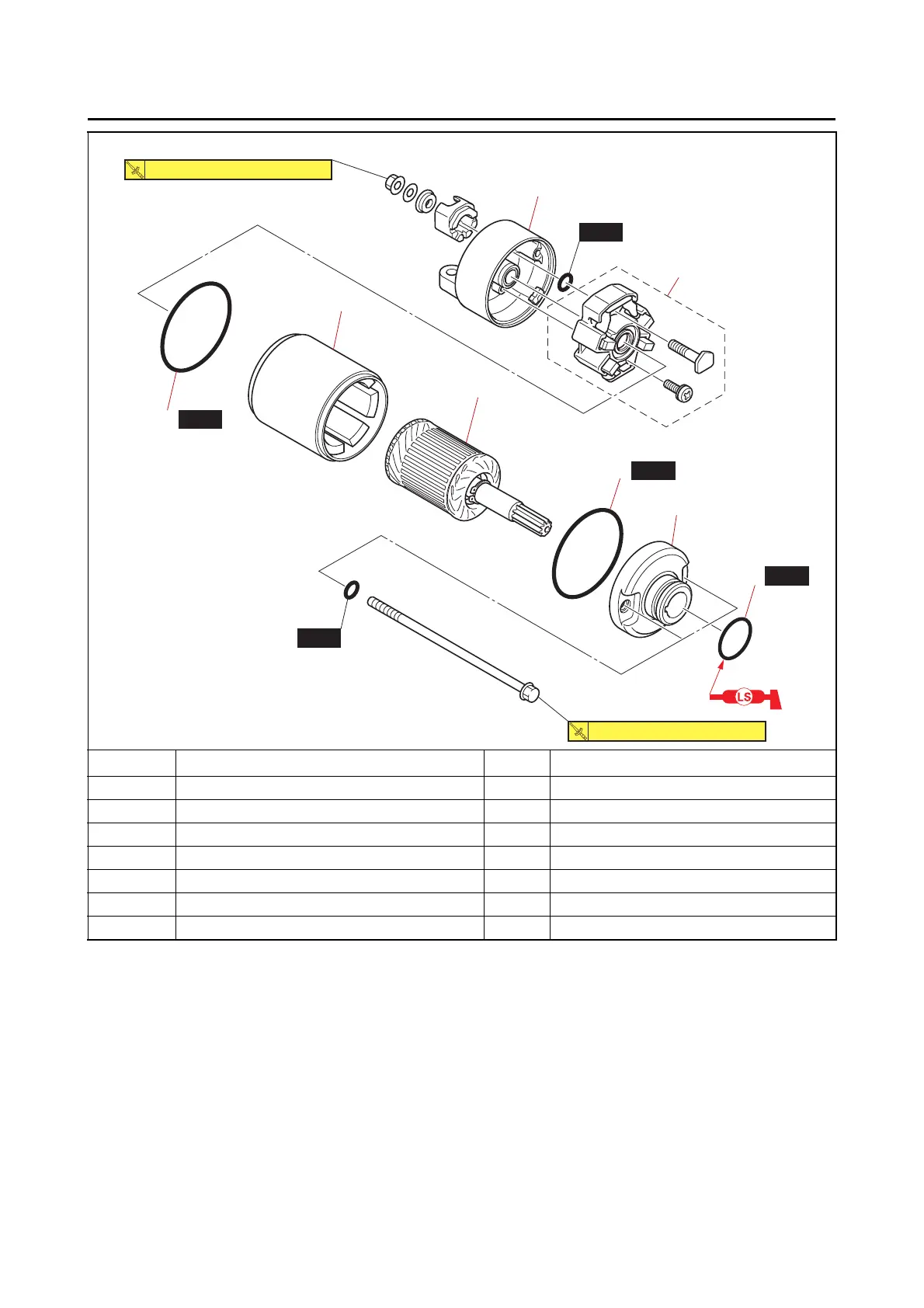

Disassembling the starter motor
Order Job/Parts to remove Q’ty Remarks
1 O-ring 1
2 Starter motor front cover 1
3 Starter motor yoke 1
4 Armature assembly 1
5Gasket 2
6 Brush holder set 1
7 Starter motor rear cover 1
1
2
5
4
6
3
7
5
11 N
•
m (1.1 kgf
•
m, 8.1 lb
•
ft)
5 N
•
m (0.5 kgf
•
m, 3.7 lb
•
ft)
New
New
New
New
New
