5-54
CLUTCH

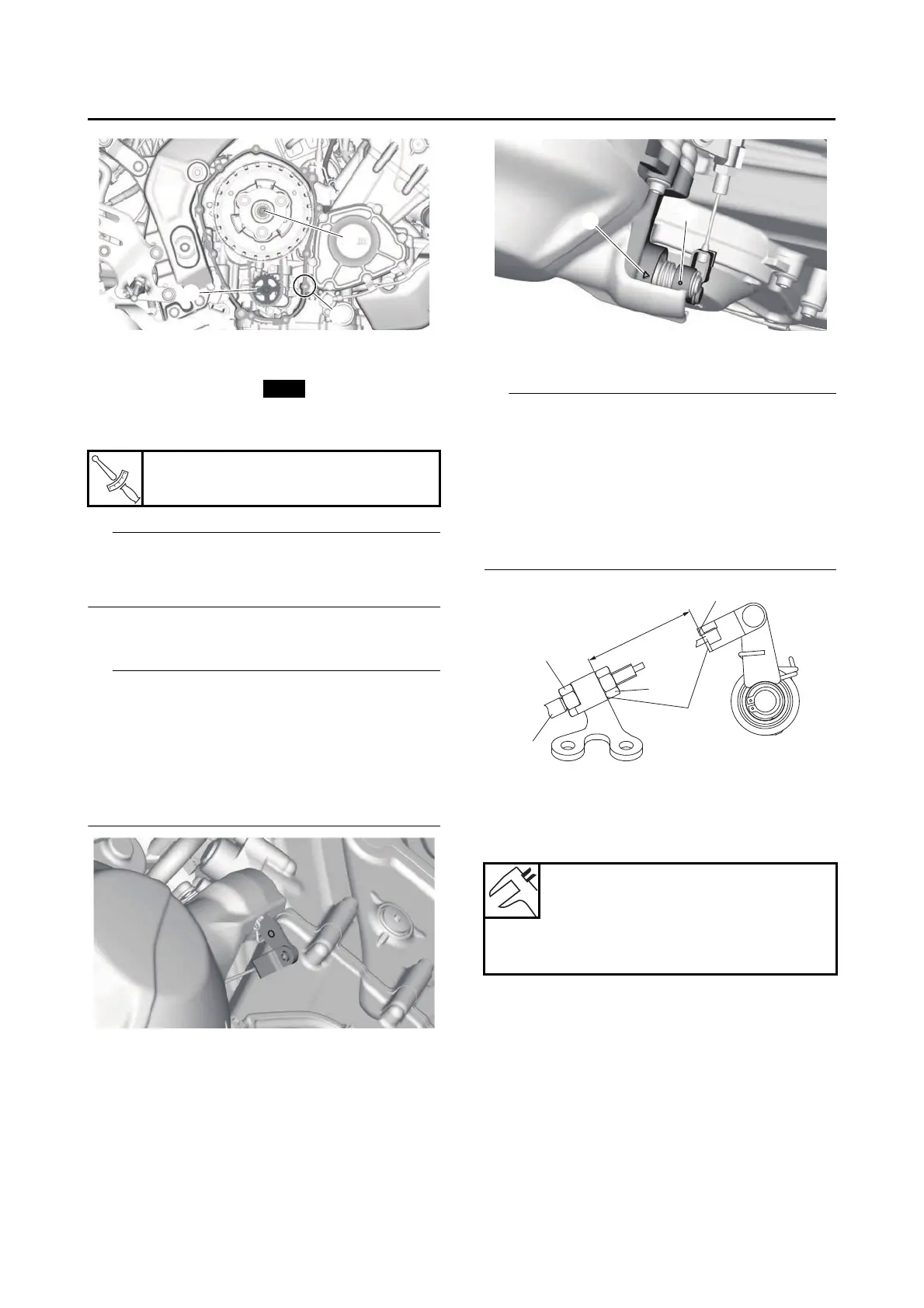

5. Install:
• Dowel pin
• Clutch cover gasket
•Clutch cover
• Cover
TIP
• Apply engine oil onto the bearing.
• Tighten the clutch cover bolts in stages and in
a crisscross pattern.
6. Install:
• Pull lever
TIP
• Install the pull lever with the “O” mark facing to-
ward lower side.
• When installing the pull lever, push the pull le-
ver and check that the punch mark “a” on the
pull lever aligns with the mark “b” on the clutch
cover. Make sure that the pull rod teeth and
pull lever shaft pinion gear are engaged.
7. Connect:
• Clutch cable “1”
TIP
• For the clutch cable “1”, turn the nut “2” in fully
and then adjust the length “a” by using the nut
“3” so that the cable length is 47.1–54.8 mm
(1.85–2.16 in).
• Measure the length while keeping the measur-
ing surface “b” parallel.
• After installing the clutch cable, bend the pro-
jection “c” on the pull lever.
8. Adjust:
• Clutch lever free play
Refer to “ADJUSTING THE CLUTCH LEVER
FREE PLAY” on page 3-12.
Clutch cover bolt
12 N·m (1.2 kgf·m, 8.9 lb·ft)
a
b
2
New
T
R
.
.
Clutch lever free play
10.0–15.0 mm (0.39–0.59 in)
(MTN890)
5.0–10.0 mm (0.20–0.39 in)
(MTN890D)
a
b
1
2
3
a
b
c
