5-58

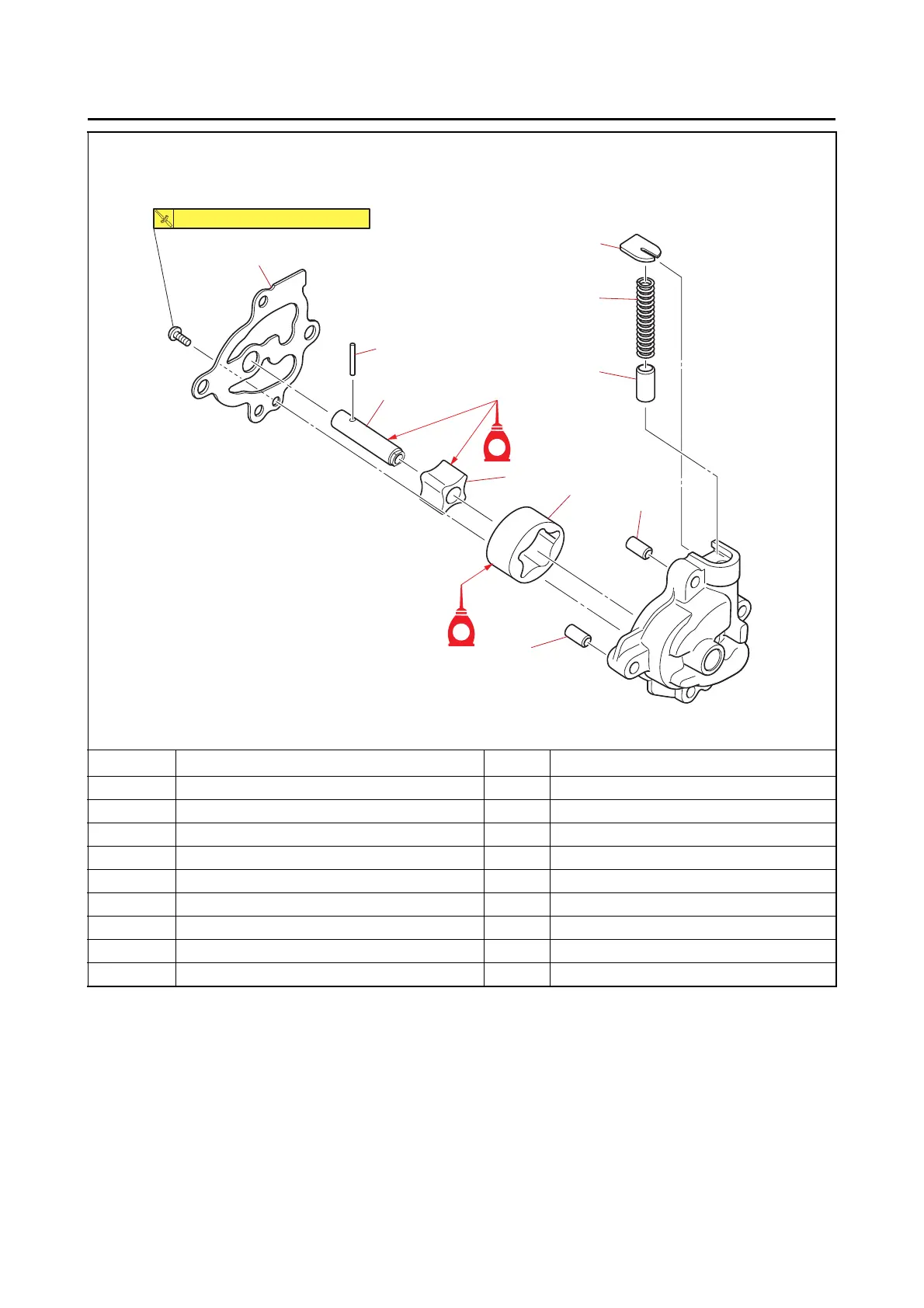

OIL PUMP
Disassembling the oil pump
Order Job/Parts to remove Q’ty Remarks
1 Oil pump cover 1
2 Oil pump shaft 1
3Pin 1
4 Oil pump inner rotor 1
5 Oil pump outer rotor 1
6Washer 1
7Spring 1
8 Relief valve 1
9 Dowel pin 2
2
5
4
9
8
7
6
9
3
1
E
E
3.8 N
•
m (0.38 kgf
•
m, 2.8 lb
•
ft)
T.R.
