5-80
CRANKSHAFT AND BALANCER SHAFT
EAS20178
CRANKSHAFT AND BALANCER SHAFT

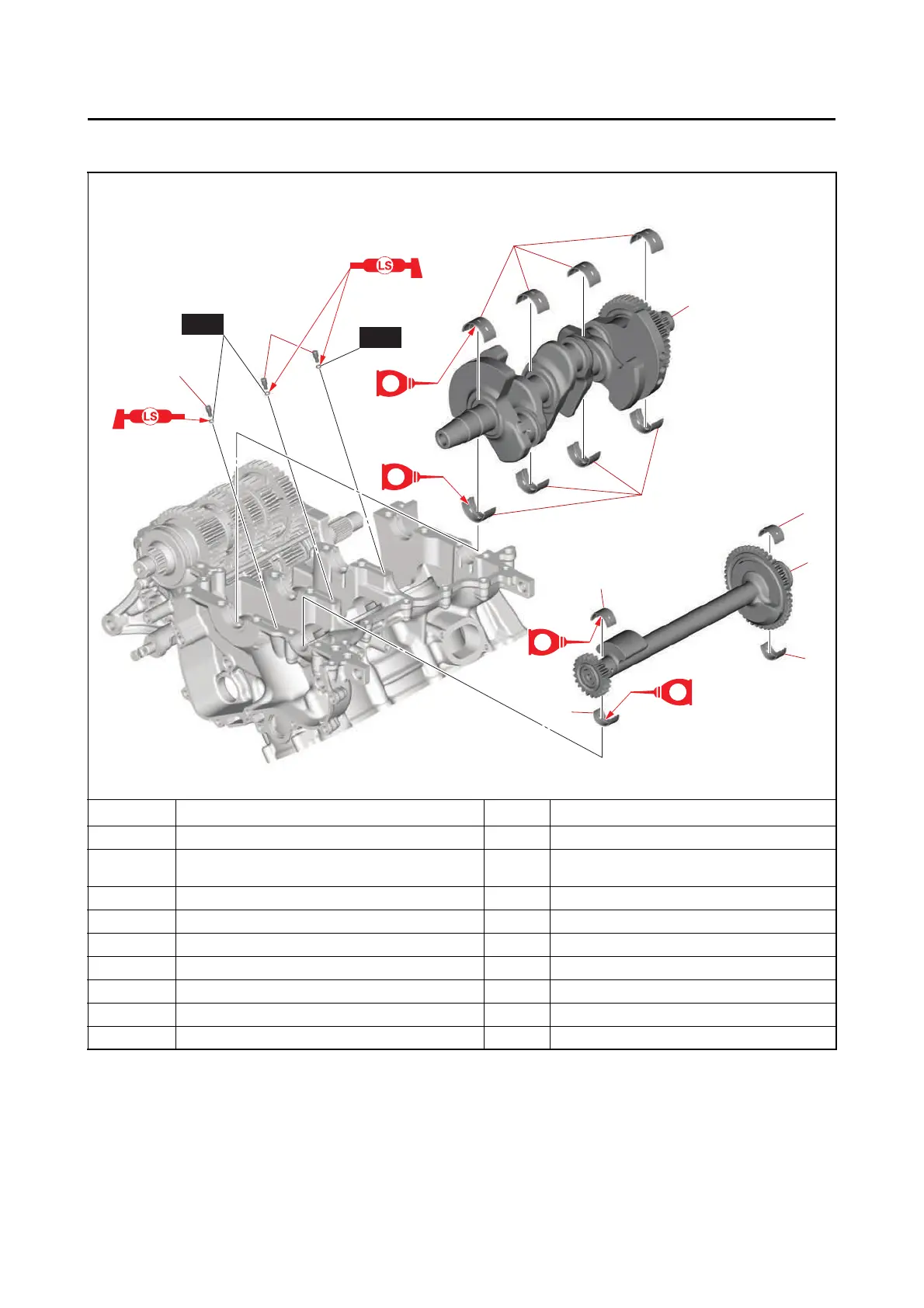

Removing the crankshaft and balancer shaft
Order Job/Parts to remove Q’ty Remarks
Lower crankcase Refer to “CRANKCASE” on page 5-63.
Connecting rod
Refer to “REMOVING THE CONNECTING
RODS AND PISTONS” on page 5-70.
1 Balancer shaft 1
2 Balancer shaft journal lower bearing 2
3 Balancer shaft journal upper bearing 2
4 Crankshaft 1
5 Crankshaft journal lower bearing 4
6 Crankshaft journal upper bearing 4
7 Oil nozzle 3
7
7
5
1
2
3
4
6
E
2
3
E
New
New
E
E
