6-2

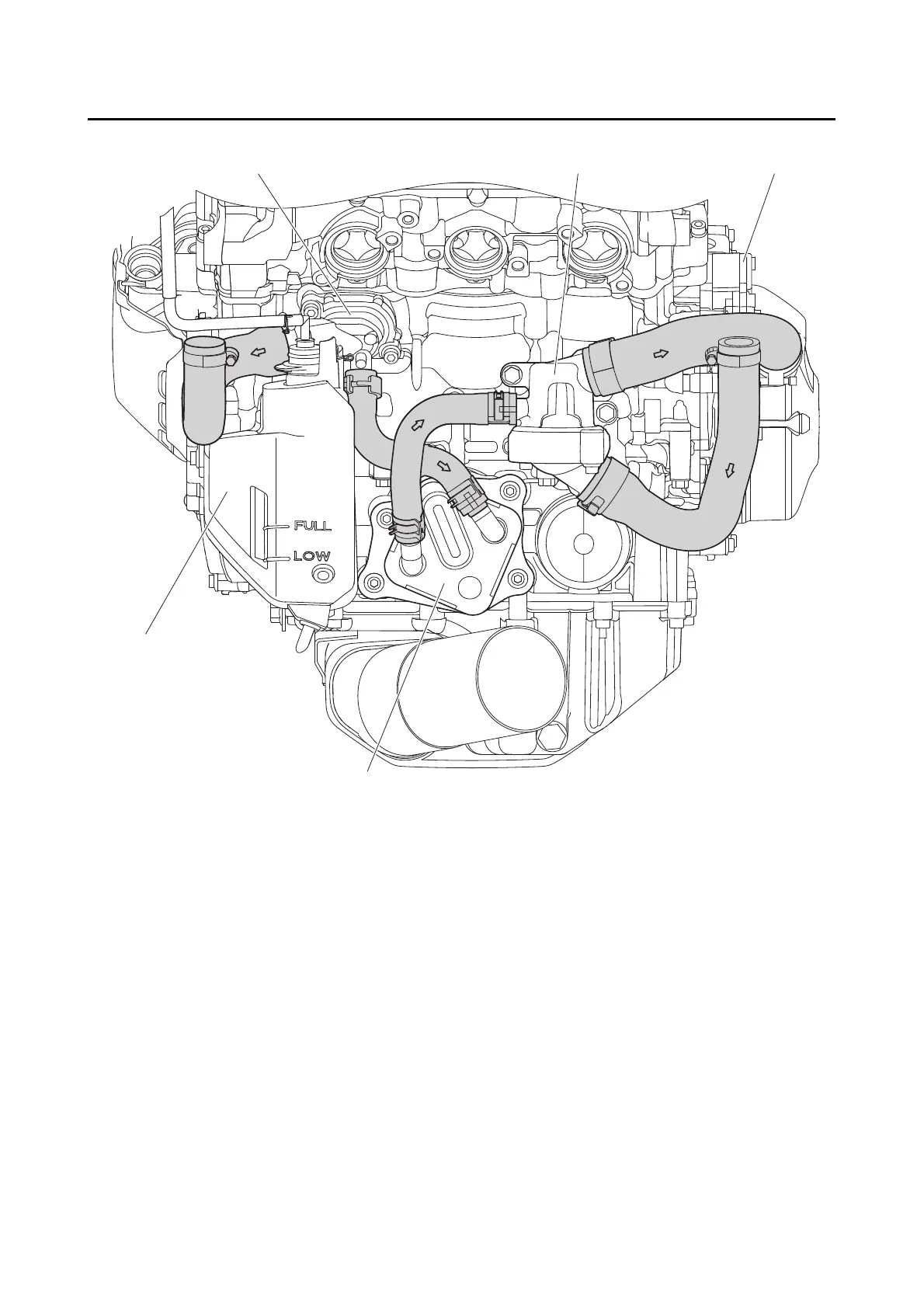

COOLING SYSTEM DIAGRAMS
1
23
4
5
1. Water jacket
2. Thermostat
3. Water pump
4. Oil cooler
5. Coolant reservoir
