8-66
ELECTRICAL COMPONENTS

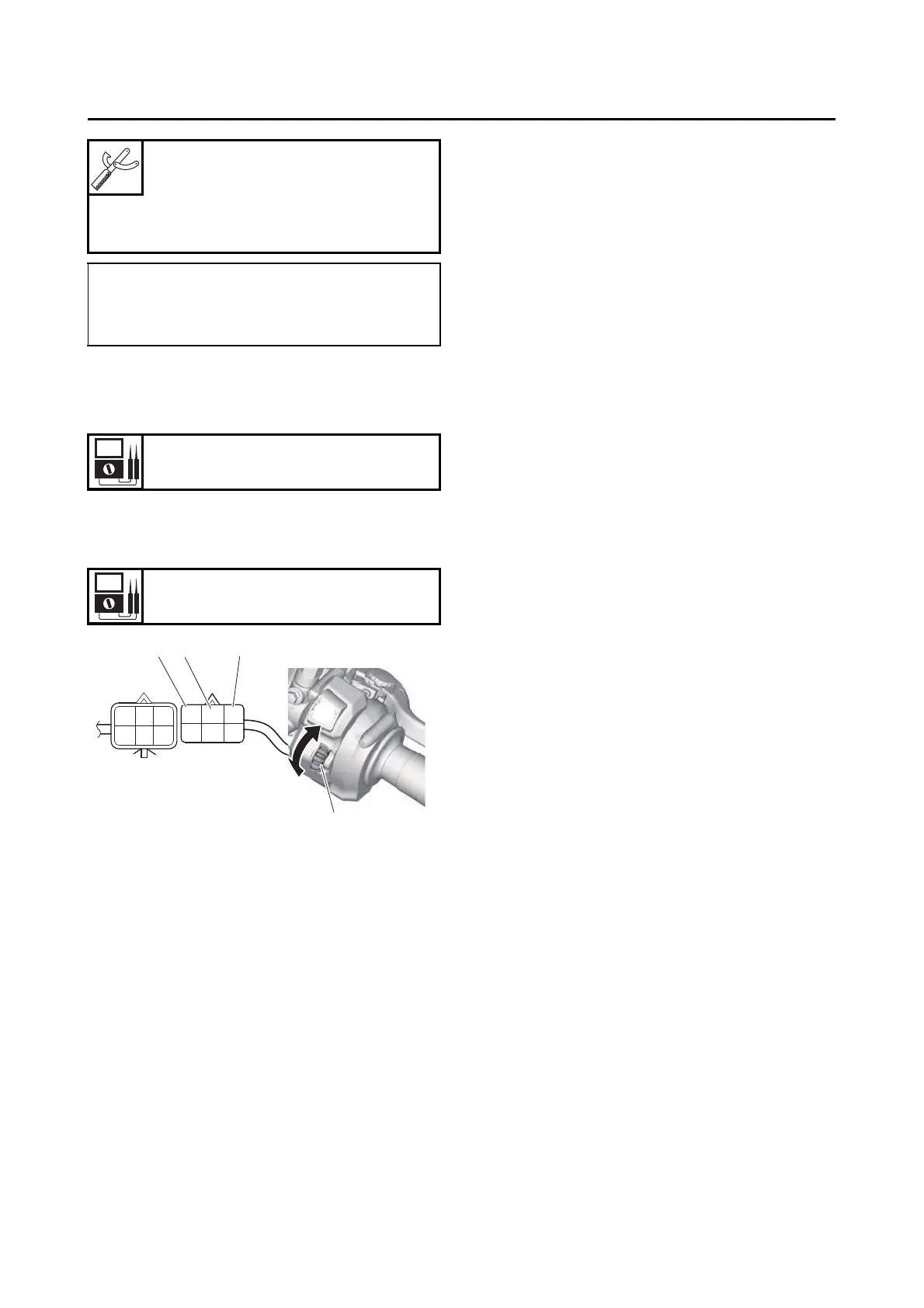

e. When turning the wheel switch in direction
“a”, check that the output voltage is within
the specified values.
f. When turning the wheel switch in direction
“b”, check that the output voltage is within
the specified values.
Digital circuit tester (CD732)
90890-03243
Model 88 Multimeter with ta-
chometer
YU-A1927
• Positive tester probe
white/black “4”
• Negative tester probe
black/white “3”
Output voltage
More than 5 V
Output voltage
Less than 0.5 V
W/B W/G B/W
R/W
BW
W/BW/GB/W
R/W
BR
1
234
b
a
