9-190
P0564
• Short circuit check
Disconnect the ECU related connectors before checking.
Refer to “PARTS CONNECTED TO THE ECU” on page 9-4.

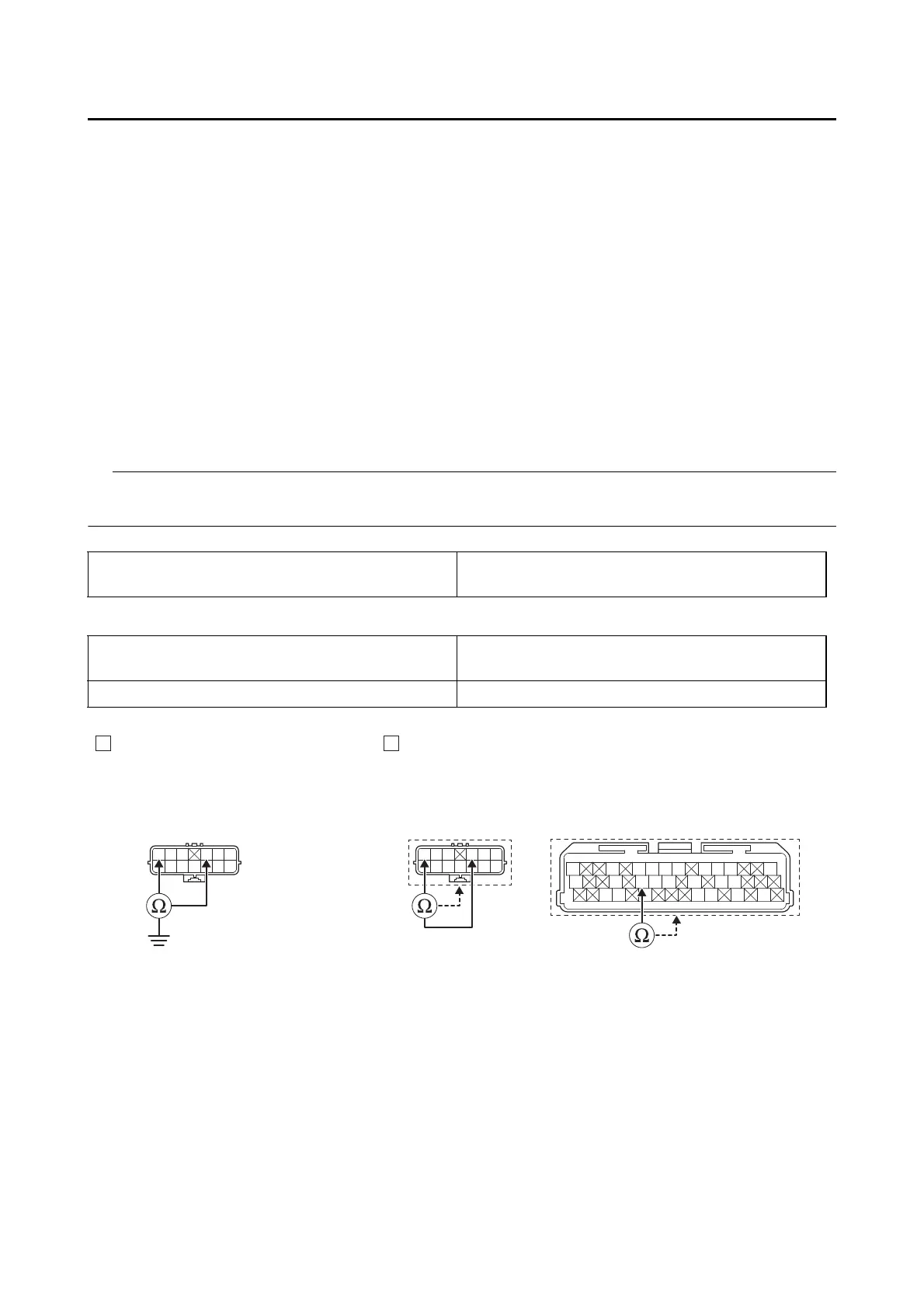

Ground short circuit check “A”
Lines short circuit check “B”
Is resistance 0 Ω?
YES
→Go to “Short circuit check”.
NO
a. Replace the wire harness.
b. Turn the main switch to “ON”.
c. Push and release the “RES+” side of the cruise control setting switch, and then check the condi-
tion of the DTC using the malfunction mode of the YDT.
Is it in the “Recovered” condition?
YES
→Go to step 10, and complete the service.
NO
→Go to “Short circuit check”.
Between handlebar switch coupler (left) “2” and
ground
brown/blue–ground
yellow/white–ground
Handlebar switch coupler (left) “2”
brown/blue–any other coupler terminal
yellow/white–any other coupler terminal
ECU coupler “3” brown/blue–any other coupler terminal
Is resistance ∞ Ω?
YES
→Go to step 5.
NO
a. Replace the wire harness.
b. Turn the main switch to “ON”.
c. Push and release the “RES+” side of the cruise control setting switch, and then check the condi-
tion of the DTC using the malfunction mode of the YDT.
W/RG/BY/WO/WG/LBr/L
W/G
B
W/YW/LL/R
Y
Y/B
W/RG/BY/WO/WG/LBr/L
W/G
B
W/YW/LL/R
Y
Y/B
BA
Gy
LLVP
P/WLg/LO/WY/LL/B
B/LB/LBr/WGy/GG/LBr/LB/YL/W
W/YW/GG/WG/WLg/BL/WL/Y
322
