9-193
P0564
8. Defective cruise control setting switch.
• Replace the handlebar switch (left).
• Turn the main switch to “ON”.
• Push the “RES+” side and “SET–” side of the cruise control setting switch, and then check the con-
dition of the DTC using the malfunction mode of the YDT.
9. Malfunction in ECU.
• Replace the ECU, and complete the service.
Refer to “REPLACING THE ECU (Engine Control Unit)” on page 8-56.
10.Delete the DTC and check that the MIL goes off.
• Confirm that the DTC has a condition of “Recovered” using the YDT, and then delete the DTC.

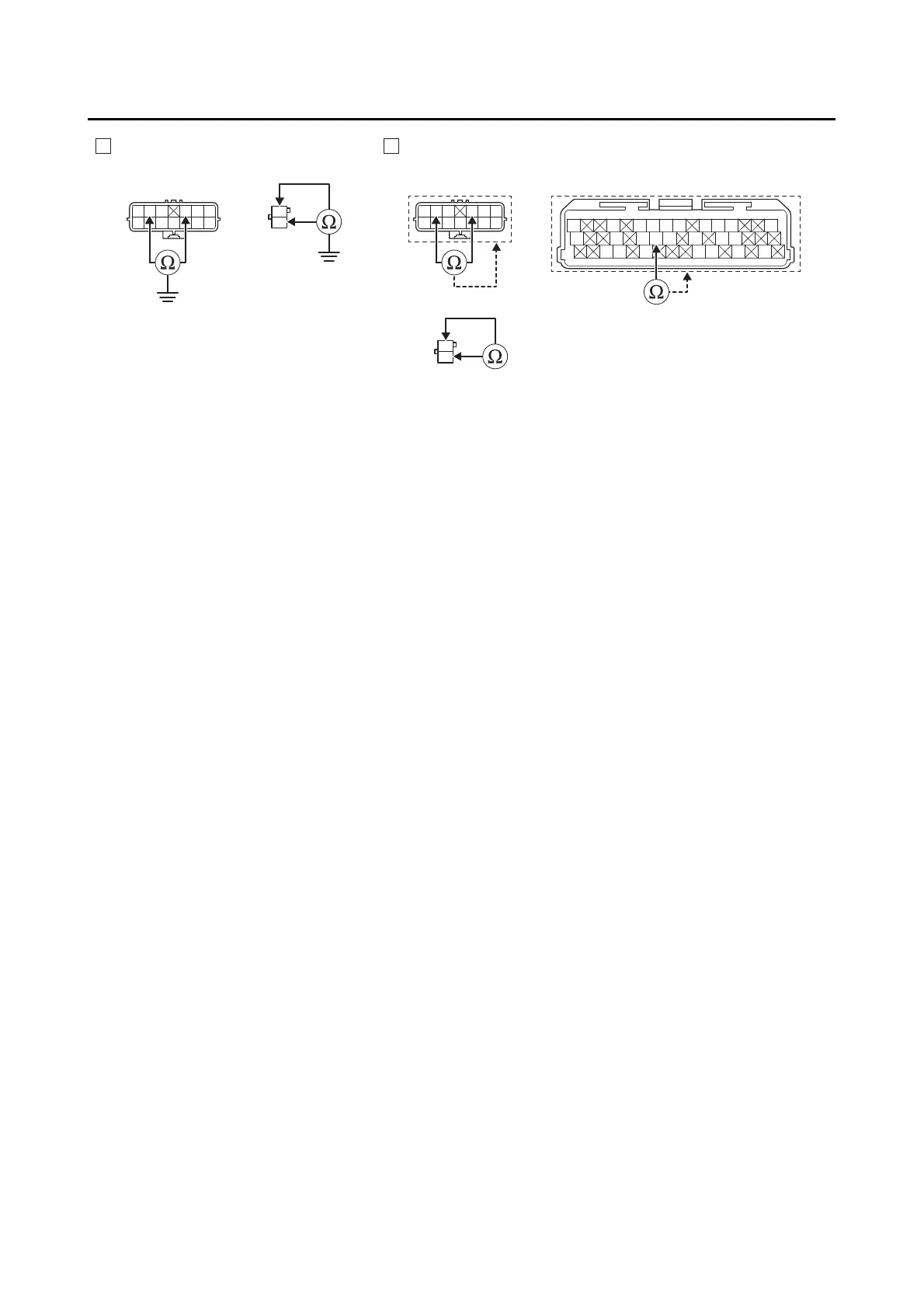

Is resistance ∞ Ω?
YES
→Go to step 8.
NO
a. Replace the wire harness.
b. Turn the main switch to “ON”.
c. Push and “SET–” side of the cruise control setting switch, and then check the condition of the
DTC using the malfunction mode of the YDT.
Is it in the “Recovered” condition?
YES
→Go to step 10, and complete the service.
NO
→Go to step 8.
Is it in the “Recovered” condition?
YES
→Go to step 10, and complete the service.
NO
→Go to step 9.
