9-219
P0916, P0917
4. Installed condition of gear position sensor.
• Check for looseness or pinching.
Gy
LLVP
P/WY/LL/B
B/LB/LBr/WGy/GB/YL/W
W/YW/GG/WG/WL/WL/Y
Gy
LLVP
P/WLg/LO/WY/LL/B
B/LB/LBr/WGy/GG/LBr/LB/YL/W
W/YW/GG/WG/WLg/BL/WL/Y
L
G/W B/L
L
G/W B/L
A B
1
2
*
2
**
1
*. MTN890
**. MTN890D

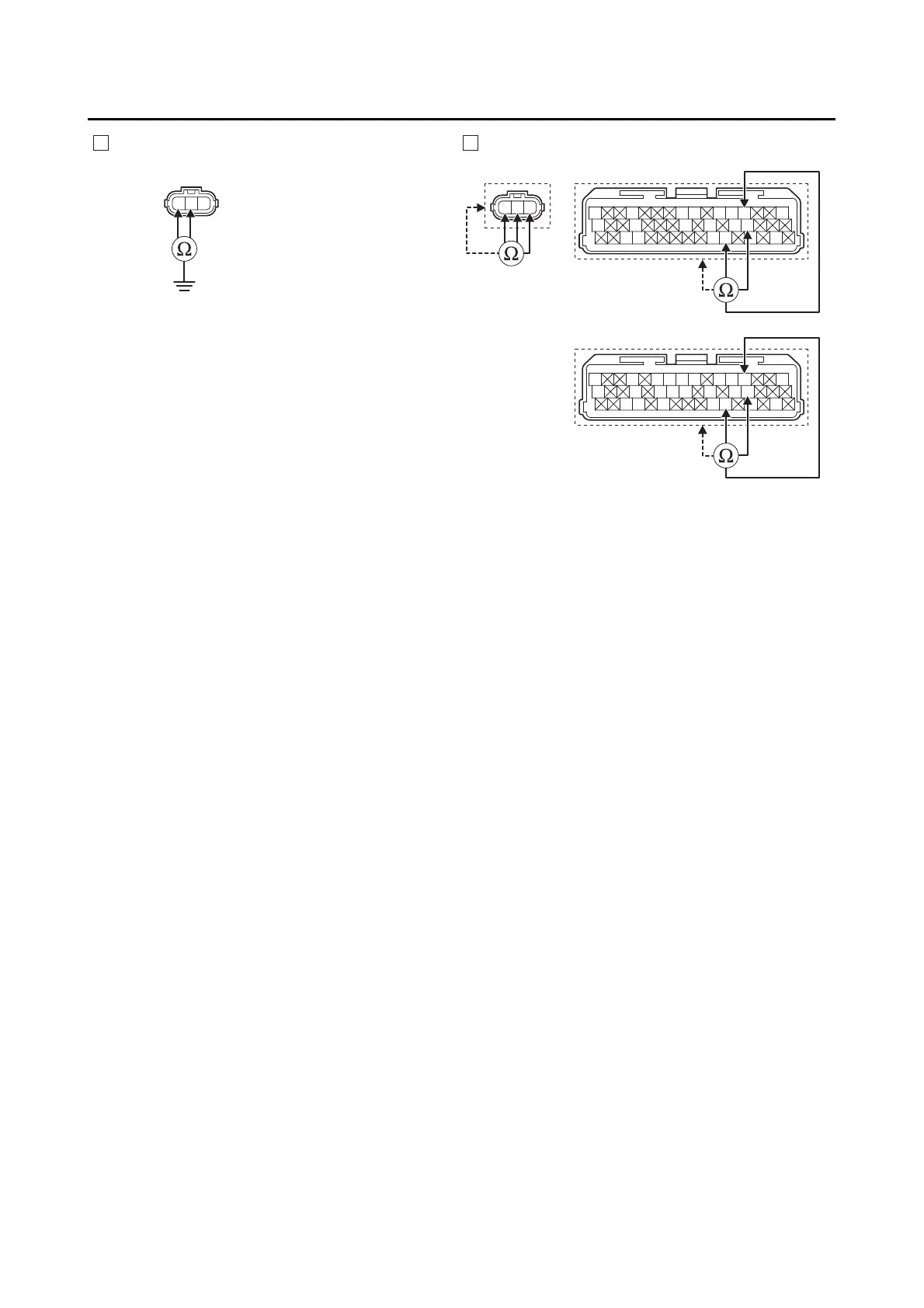

Is resistance ∞ Ω?
YES
→ Go to step 4.
NO
a. Replace the wire harness.
b. Turn the main switch to “ON”, and then check the condition of the DTC using the malfunction
mode of the YDT.
Is it in the “Recovered” condition?
YES
→ Go to step 7, and complete the service.
NO
→ Go to step 4.
Is check result OK?
YES
→ Go to step 5.
NO
a. Reinstall or replace the sensor.
Refer to “CRANKCASE” on page 5-63.
b. Turn the main switch to “ON”, and then check the condition of the DTC using the malfunction
mode of the YDT.
Is it in the “Recovered” condition?
YES
→ Go to step 7, and complete the service.
NO
→ Go to step 5.
