7. Defective front wheel sensor.
• Check the front wheel sensor.
Refer to “FRONT WHEEL” on page 4-11.
8. Malfunction in ECU.
Gy
LLVP
P/WLg/LO/WY/LL/B
B/LB/LBr/WGy/GG/LBr/LB/YL/W
W/YW/GG/WG/WLg/BL/WL/Y
R
L/W
B
B/W
W/G
GYL
R/B
Br
L/W
G/O W/Y
LBWY
L/B
R
L/W
B
B/W
W/G
GYL
R/B
Br
L/W
G/O W/Y
LBWY
L/B
BA
YBr
Gy
LLVP
P/WLg/LY/LL/B
B/LB/LBr/WGy/GG/LB/YL/W
W/YW/GG/WG/WL/WL/Y
3
*
3
**
1
22
*. MTN890
**. MTN890D

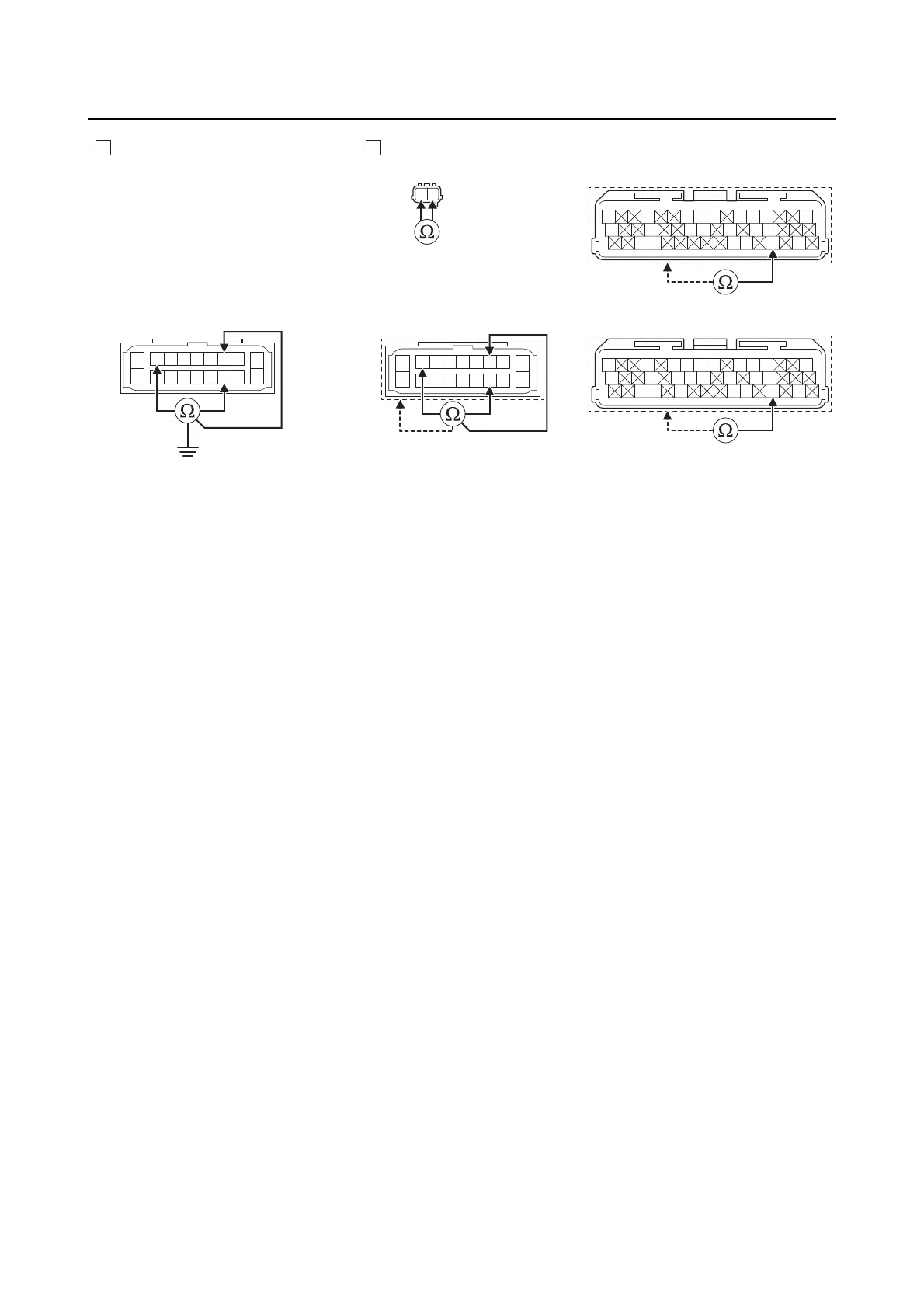

Is resistance ∞ Ω?
YES
→ Go to step 7.
NO
a. Replace the wire harness.
b. Execute the diagnostic mode. (Code 16)
c. Rotate the front wheel by hand and check that the indicated value increases.
Is that value increased?
YES
→ Go to step 10, and complete the service.
NO
→ Go to step 7.
Is check result OK?
YES
→ Go to step 8.
NO
a. Reinstall or replace the front wheel sensor.
Refer to “FRONT WHEEL” on page 4-11.
b. Execute the diagnostic mode. (Code 16)
c. Rotate the front wheel by hand and check that the indicated value increases.
Is that value increased?
YES
→ Go to step 10, and complete the service.
NO
→ Go to step 8.
