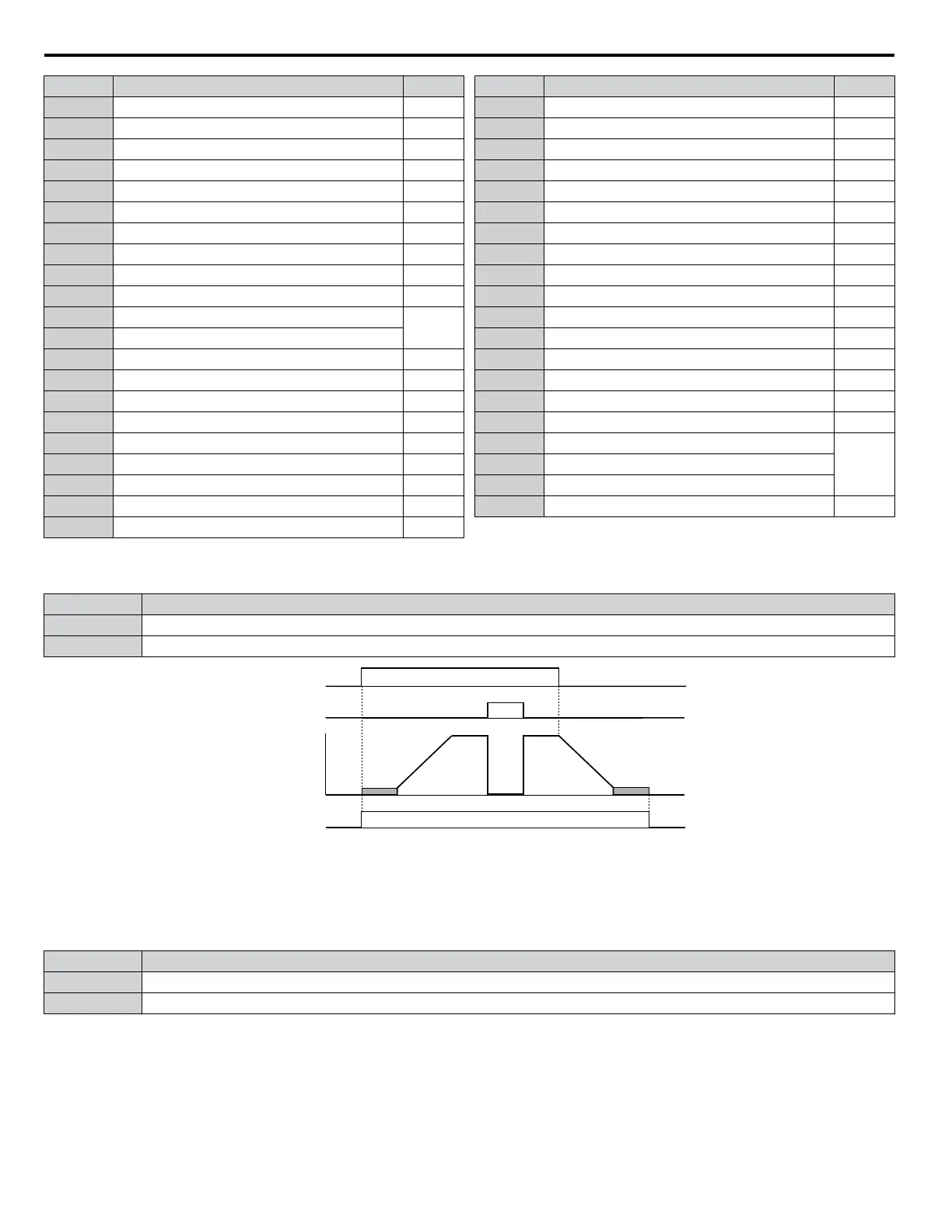

Setting Function Page
C Frequency Reference Loss 109
E Fault 109
F Through Mode 109
10 Minor Fault 110
11 Fault Reset Command Active 110
12 Timer Output 110
13 Speed Agree 2 110
14 User-Set Speed Agree 2 110
15 Frequency Detection 3 111
16 Frequency Detection 4 111
17 Torque Detection 1 (N.C.)
109
18 Torque Detection 2 (N.O.)
19 Torque Detection 2 (N.C.) 109
1A During Reverse 112
1B During Baseblock (N.C.) 112
1C Motor 2 Selection 112
1D During regeneration 112
1E Restart Enabled 112
1F Motor Overload Alarm (oL1) 113
20 Drive Overheat Pre-Alarm (oH) 113
22 Mechanical Weakening Detection 113
Setting Function Page
2F Maintenance Period 113
30 During Torque Limit 113
31 During Speed Limit 113
32 During Speed Limit in Torque Control 113
33 Zero Servo Complete 113
37 During Frequency Output 113
38 Drive Enabled 114
39 Watt Hour Pulse Output 114
3C LOCAL/REMOTE Status 114
3D During Speed Search 114
3E PID Feedback Low 114
3F PID Feedback High 114
4A During KEB Operation 114
4C During Fast Stop 114
4D oH Pre-Alarm Time Limit 114
60 Internal Cooling Fan Alarm 114
90 DriveWorksEZ Digital Output 1
11491 DriveWorksEZ Digital Output 2
92 DriveWorksEZ Digital Output 3
100 to 192 Functions 0 to 92 with Inverse Output 114
Setting 0: During Run
Output closes when the drive is outputting a voltage.
Status Description
Open Drive is stopped.
Closed A Run command is input or the drive is in deceleration or DC injection.
ON
ON
OFF
OFF
ONOFF
Run command
Baseblock
command
Output
frequency
During Run
Figure 1.62 During Run Time Chart
Setting 1: Zero Speed
Terminal closes when the output frequency or motor speed (CLV, CLV/PM) falls below the minimum output frequency set
to E1-09 or b2-01.
Status Description
Open Output frequency is above the minimum output frequency set to E1-09 or b2-01
Closed Output frequency is less than the minimum output frequency set to E1-09 or b2-01
Note: In CLV and CLV/PM control modes, the zero speed level is defined by b2-01. In all other control modes, the zero speed level is the minimum
output frequency set to E1-09.
1.7 H: Terminal Functions
106
YASKAWA ELECTRIC SIEP YEAHHP 01B YASKAWA AC Drive – A1000 HHP Programming Manual
