8.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables
8.3.2 Cables without Connectors
8
Cables and User-Assembled Wiring Materials for Direct Drive Servomotors
8-17

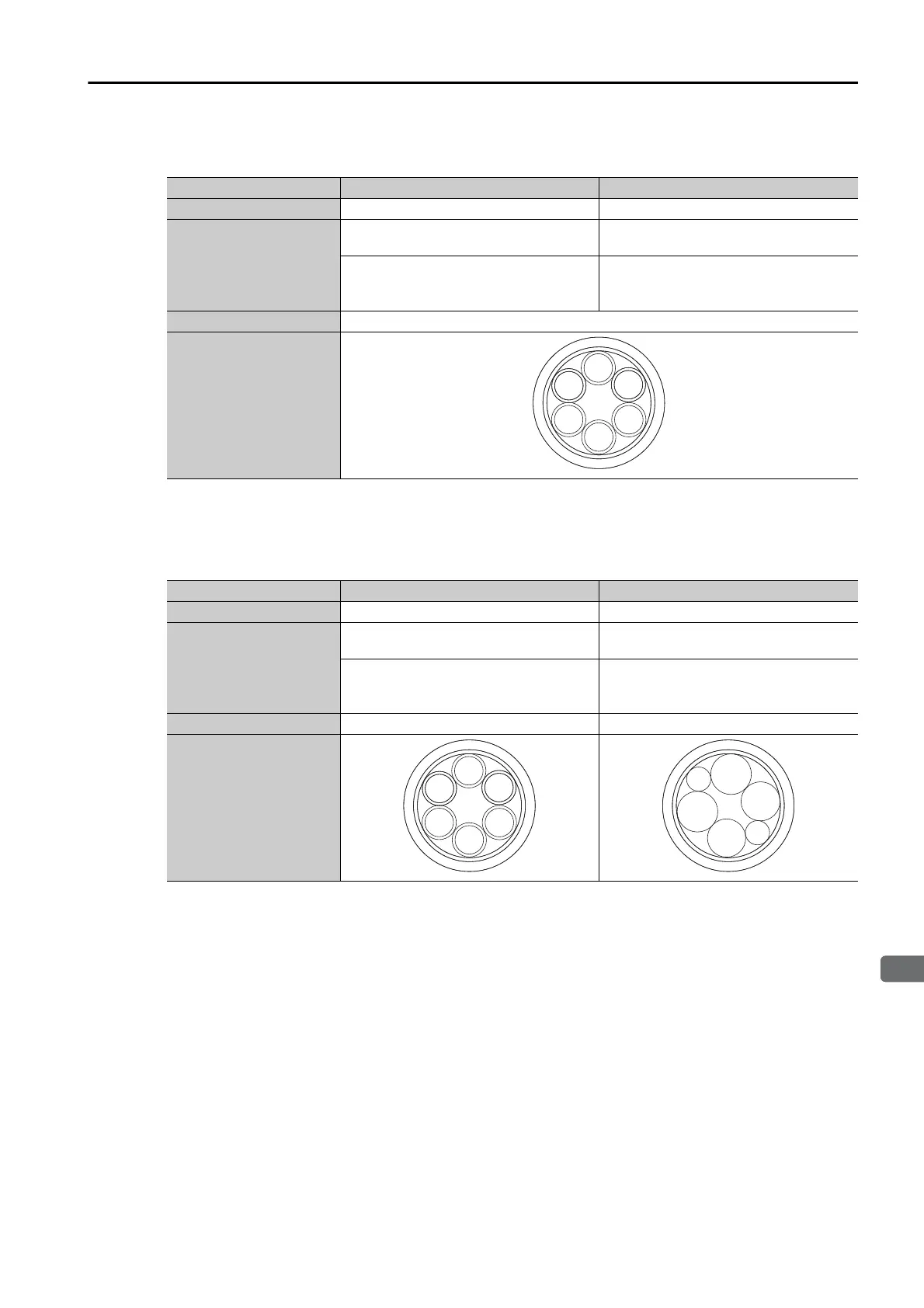

Main Circuit Cables for SGM7E Servomotors and SGMCS
Small-Capacity, Coreless Servomotors
* Replace the boxes () in the order number with the cable length (05, 10, 15, 20, or 50).
Main Circuit Cables for SGM7F-A to -D Servomotors
and SGMCV Servomotors
* Replace the boxes () in the order number with the cable length (05, 10, 15, 20, or 50).
Item Standard Cable Flexible Cable
Order Number* JZSP-CSM90--E JZSP-CSM80--E
Specifications
UL2517 (rated temperature: 105°C)
AWG20 × 6C
UL2517 (rated temperature: 105°C)
AWG22 × 6C
AWG20 (0.52 mm
2
)
Outer diameter of insulating sheath:
1.53 mm
AWG22 (0.33 mm
2
)
Outer diameter of insulating sheath:
1.37 mm
Finished Diameter 7 mm ±0.3 mm
Internal Structure and
Lead Colors
Item Standard Cable Flexible Cable
Order Number* JZSP-CSM90--E JZSP-C7M29--E
Specifications
UL2517 (rated temperature: 105°C)
AWG20 × 6C
UL2517 (rated temperature: 105°C)
AWG20 × 4C, AWG22C × 2C
AWG20 (0.52 mm
2
)
Outer diameter of insulating sheath:
1.53 mm
AWG20 (0.52 mm
2
)
Outer diameter of insulating sheath:
1.37 mm
Finished Diameter 7 mm ±0.3 mm 7 mm ±0.2 mm
Internal Structure and
Lead Colors
Black
White
Red
Black
Blue
Green
/(yellow)
Black
White
Red
Black
Blue
Green
/(yellow)
Red
Yellow
/green
Blue
White
Black
Black
