8.4 Encoder Cables of 20 m or Less
8.4.4 SGMCS Encoder Cables
8-28

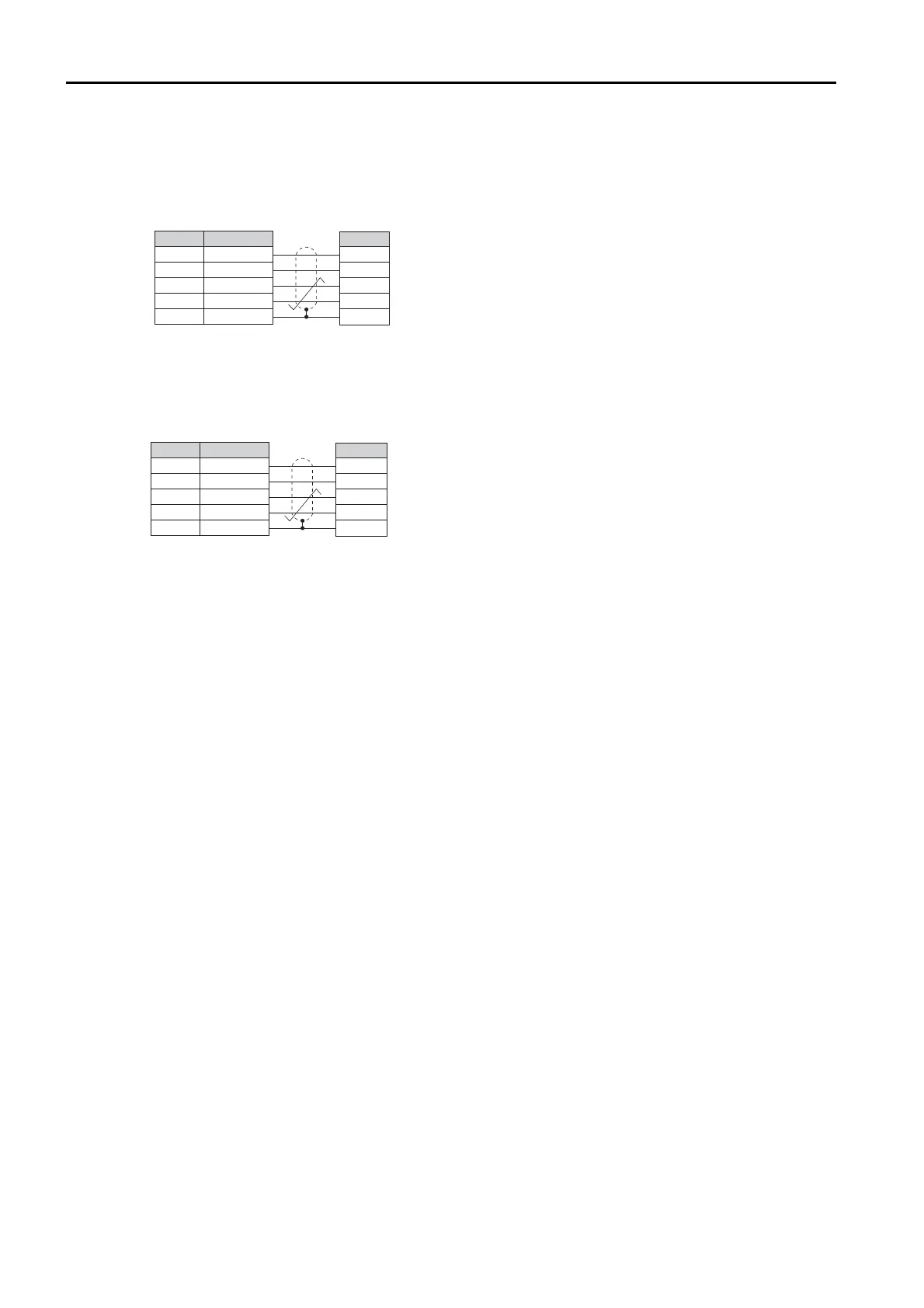

Wiring Specifications
 JZSP-CMP60--E (Standard Cables) and JZSP-CSP60--E
(Flexible Cables)
Note: Always connect the shield wire from the Encoder Cable to the connector case (shell).
 JZSP-CMP00--E (Standard Cables) and JZSP-CMP10--E
(Flexible Cables)
Note: Always connect the shield wire from the Encoder Cable to the connector case (shell).
SERVOPACK end
Signal
PG5V
PG0V
PS
/PS
FG
Pin
1
2
5
6
Shell
Pin
4
9
1
2
7
Encoder (motor) end
Shield wire
SERVOPACK end
Signal
PG5V
PG0V
PS
/PS
FG
Pin
1
2
5
6
Shell
Pin
1
2
5
6
7
Encoder (motor) end
Shield wire
