YASKAWA SGD7W - Page 192

9.2 Cable Configurations
9.2.2 Connections to Linear Encoder from Renishaw plc
9-10

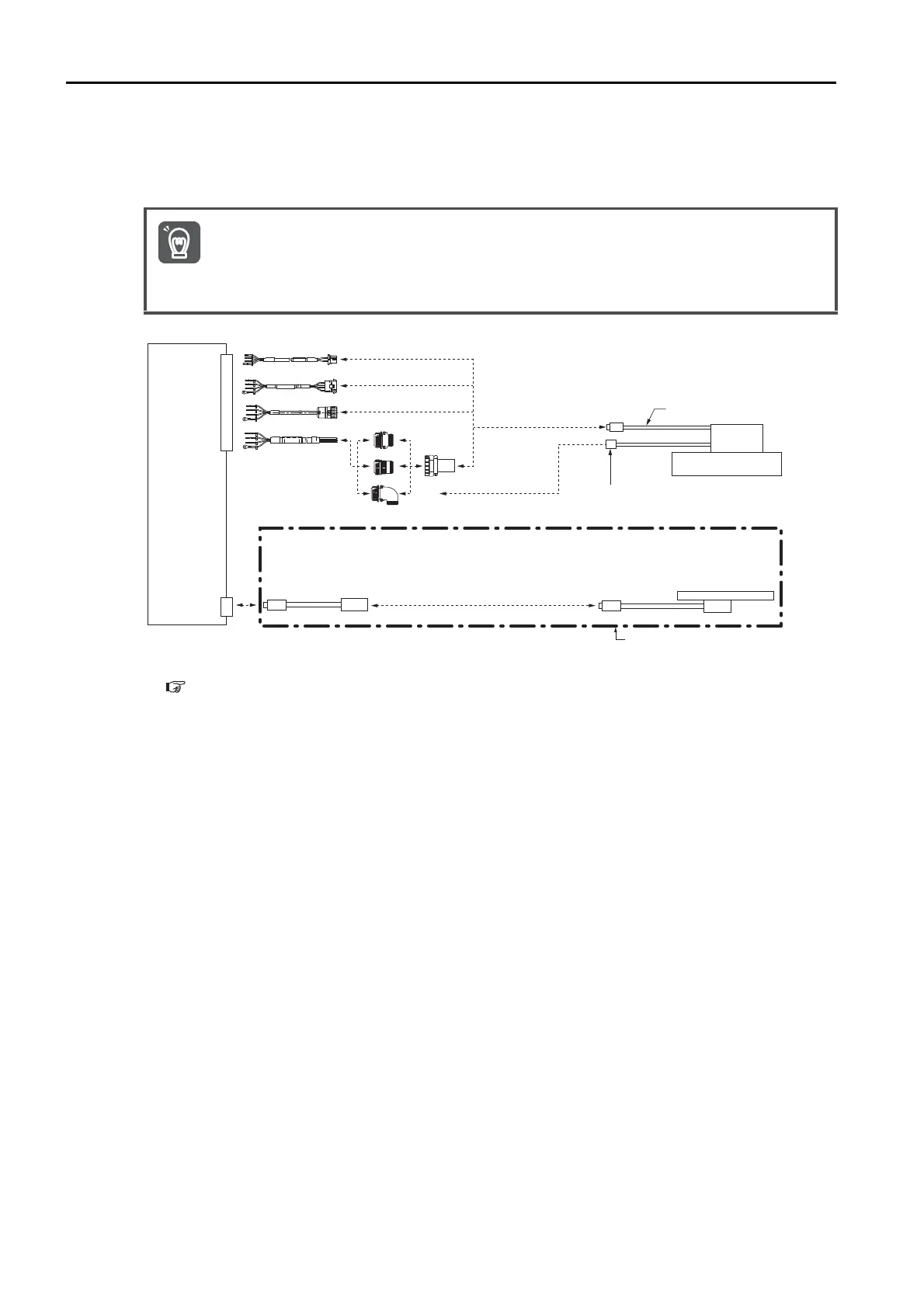

EVOLUTE-Series Linear Encoder (Model: EL36Y-
), RESOLUTE-Series Linear Encoder
(Model: RL36Y-)
*1. Cables to connect to the host controller are not provided by Yaskawa.
Refer to the following section for information on connector models.
JZSP-CL2TH00-
 -E Sensor Cables on page 9-28
*2. Only SGLFW2 Servomotors come equipped with Thermal Protector Relay Connectors.
*3. Use an Encoder Cable from Renishaw plc. Contact Renishaw plc for detailed Encoder Cable specifications.
1. You cannot use an EVOLUTE-Series or RESOLUTE-Series Linear Encoder together with a Lin-
ear Servomotor with a Polarity Sensor.
2. If you use an SGLFW2 Servomotor, input the thermal protector signal from the Linear Servo-
motor to the host controller. The thermal protector signal is closed when the temperature is
normal and open when the thermal protector is activated. Do not exceed 3 A or 30 V.
Important
SERVOPACK
Main circuit
connector
CN2
Servomotor Main Circuit Cable
Linear Encoder from
Renishaw plc
• EVOLUTE Series
• RESOLUTE Series
Encoder Cable
from Renishaw plc
*3
Products from Renishaw plc
Servomotor Main
Circuit Cable
Moving
Coil
Magnetic Way
Thermal Protector
Relay Connector
*2
Input to host controller
*1
