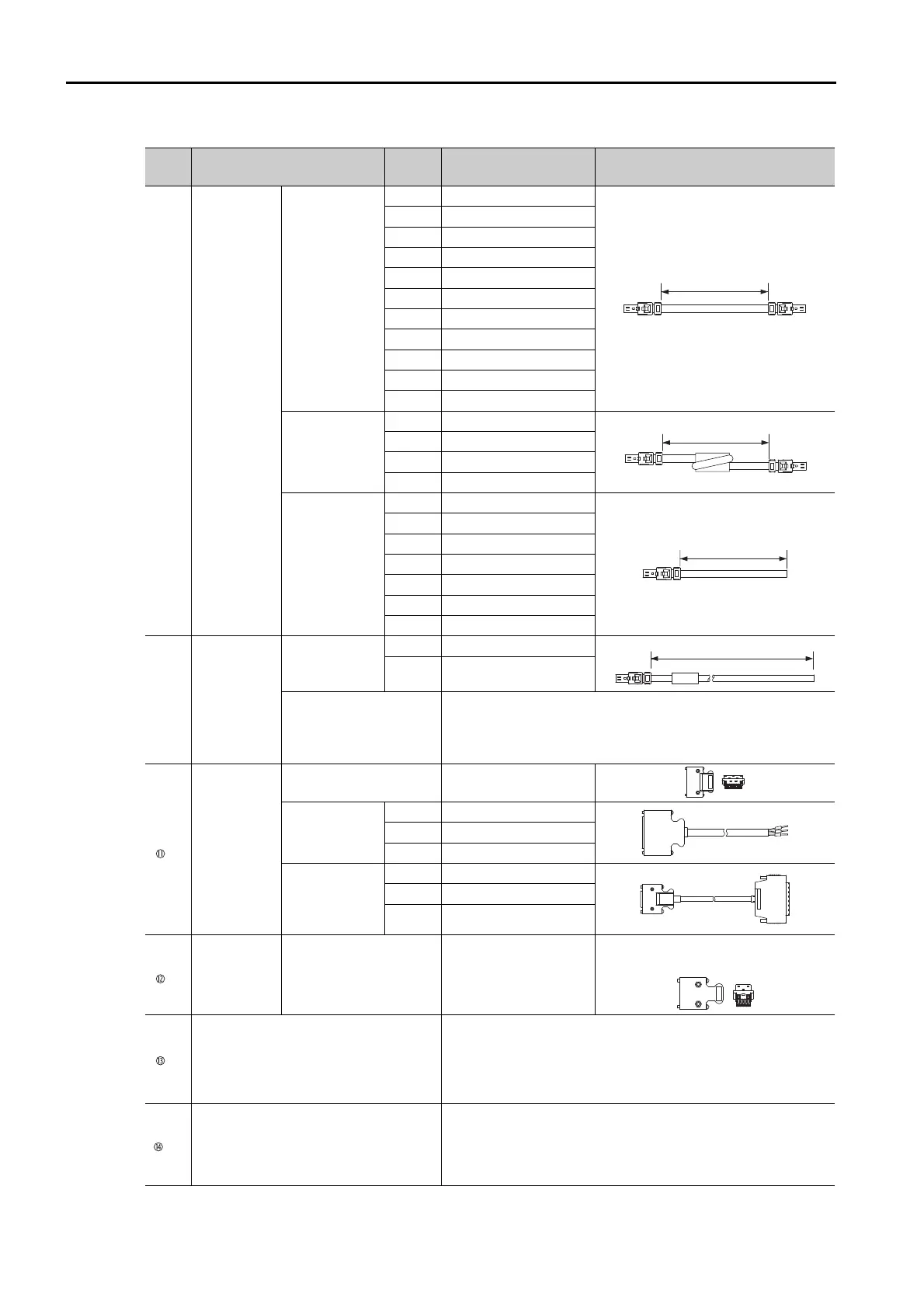

10.1 System Configuration Diagrams and Selection Tables
10.1.2 Selection Table
10-8

MECHATRO
LINK-III
Communi-
cations
Cables
Cables with
Connectors
on Both Ends
0.2 m JEPMC-W6012-A2-E
0.5 m JEPMC-W6012-A5-E
1 m JEPMC-W6012-01-E
2 m JEPMC-W6012-02-E
3 m JEPMC-W6012-03-E
4 m JEPMC-W6012-04-E
5 m JEPMC-W6012-05-E
10 m JEPMC-W6012-10-E
20 m JEPMC-W6012-20-E
30 m JEPMC-W6012-30-E
50 m JEPMC-W6012-50-E
Cables with
Connectors
on Both Ends
(with core)
10 m JEPMC-W6013-10-E
20 m JEPMC-W6013-20-E
30 m JEPMC-W6013-30-E
50 m JEPMC-W6013-50-E
Cable with
Loose Wires
at One End
0.5 m JEPMC-W6014-A5-E
1 m JEPMC-W6014-01-E
3 m JEPMC-W6014-03-E
5 m JEPMC-W6014-05-E
10 m JEPMC-W6014-10-E
30 m JEPMC-W6014-30-E
50 m JEPMC-W6014-50-E

Safety
Function
Device
Cables
Cables with
Connectors
*3
1 m JZSP-CVH03-01-E
3 m JZSP-CVH03-03-E
Connector Kit
*4
Contact Tyco Electronics Japan G.K.
Product name: Industrial Mini I/O D-shape Type 1 Plug Con-
nector Kit
Model number: 2013595-1
I/O Signal
Cables
Connector Kit DP9420007-E
Cables with
Loose Wires
at One End
1 m JZSP-CVI01-1-E
2 m JZSP-CVI01-2-E
3 m JZSP-CVI01-3-E
Cables with
Ter mi nal
Block on One
End
0.5 m JUSP-TA36V-E
1 m JUSP-TA36V-1-E
2 m JUSP-TA36V-2-E
Serial Com-
mand Cable
Connector Kit
*4
JZSP-CHI9-1
Contact Yaskawa Controls Co., Ltd.
for the cable.
DeviceNet Communications Cable
The communications cable must be an ODVA-Compliant
DeviceNet communications cable. We recommend the fol-
lowing Cable.
OMRON DCA1-5CN02F1 Cable with Connectors or the
equivalent.
Ethernet Communications Cable
Use a commercially available cable that satisfies the following
conditions.
• Ethernet type: 100Base-TX
• Category 5 or higher
• Twisted-pair cable with RJ-45 connector
Continued from previous page.
Code Name
Length
(L)
Order Number Appearance
L
L
L
