10.10 I/O Signal Cables for INDEXER Modules
10.10.1 Cables with Loose Wires at One End
10-33
10
Cables and User-Assembled Wiring Materials for SERVOPACKs
10.10 I/O Signal Cables for INDEXER Modules
Use these Cables to connect INDEXER Modules to host controllers.
10.10.1 Cables with Loose Wires at One End
Selection Table

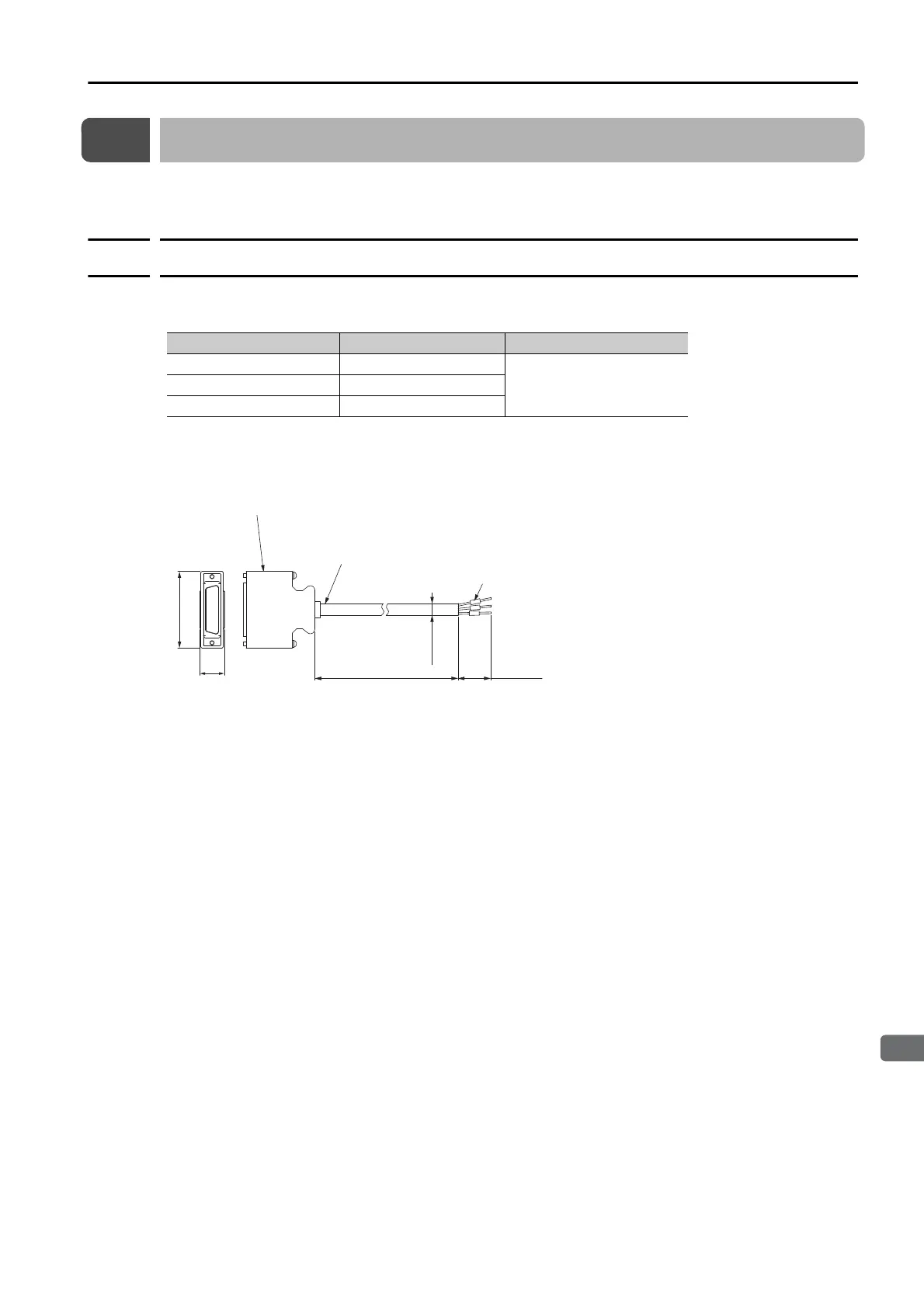

Dimensional Drawing
Order Number Length (L) Inquiries
JZSP-CVI01-1-E 1 m
Yaskawa Controls Co., Ltd.JZSP-CVI01-2-E 2 m
JZSP-CVI01-3-E 3 m
Cable
FA375440
AWG28×25P (from Taiyo Cabletec Corporation)
SERVOPACK end
Connector: 10136-6000EL (36P) (from 3M Japan Limited)
Shell: 10336-52A0-008
14
L 100
Wire markers, 3 dia.
43.5
+10
- 0
(8.1 dia.)
Unit: mm
