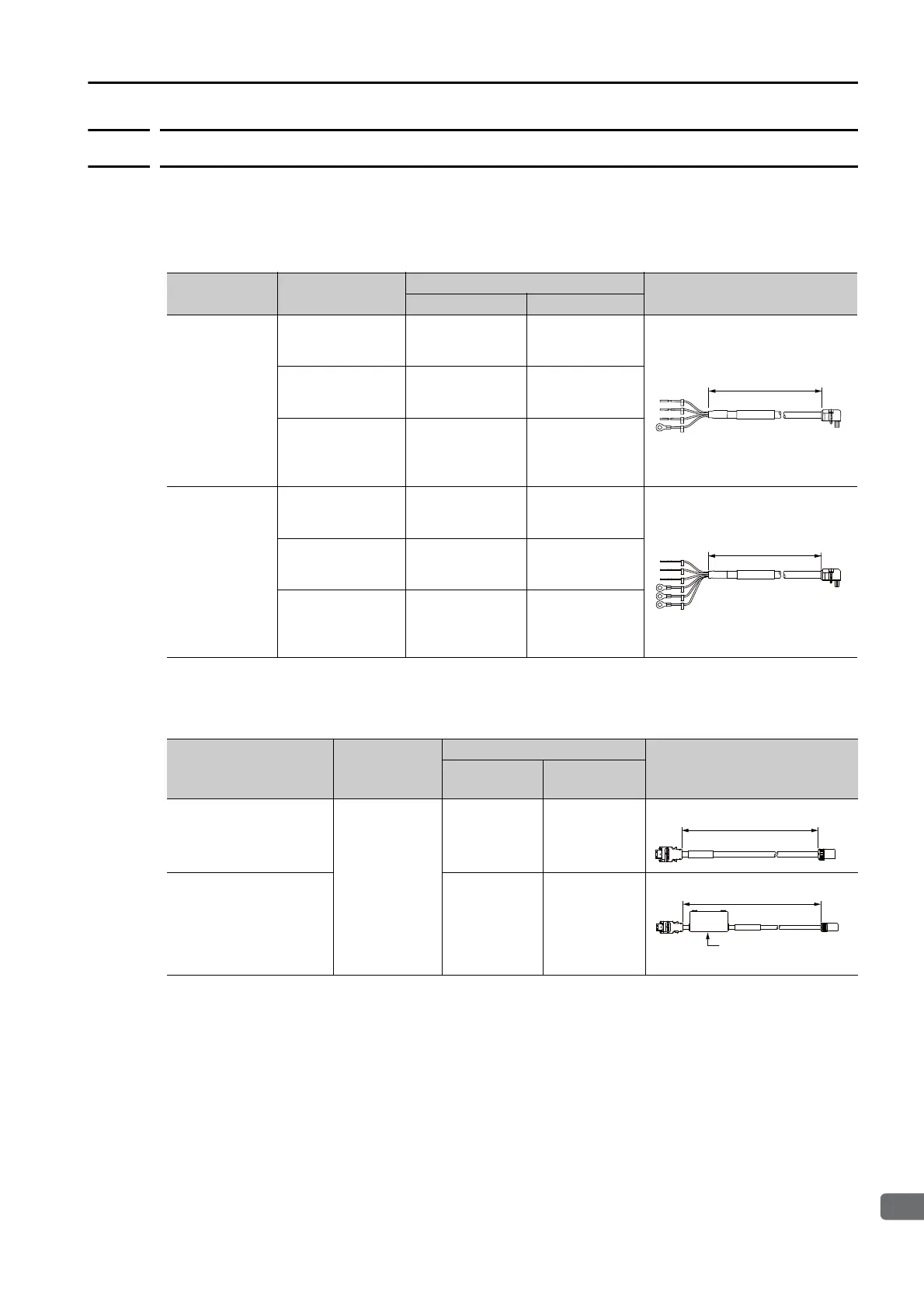

The following tables list the Cables that you can connect to Σ-7-Series SGM7J and SGM7A
Servomotors.
Servomotor Main Circuit Cables
* Replace the boxes () in the order number with the cable length (03, 05, 10, 15, 20, 30, 40, or 50).
Encoder Cables
* Replace the boxes () in the order number with the cable length (03, 05, 10, 15, or 20).
Name
Servomotor
Model
Order Number*
Appearance
Standard Cable Flexible Cable
For Servomo-
tors without
Holding Brakes
SGM7J-A5 to -C2
SGM7A-A5 to -C2
50 W to 150 W
JZSP-CSM01-
-E
JZSP-CSM21-
-E
SGM7J-02 to -06
SGM7A-02 to -06
200 W to 600 W
JZSP-CSM02-
-E
JZSP-CSM22-
-E
SGM7J-08
750 W
SGM7A-08 or -10
750 W or 1.0 kW
JZSP-CSM03-
-E
JZSP-CSM23-
-E
For Servomo-
tors with
Holding Brakes
SGM7J-A5 to -C2
SGM7A-A5 to -C2
50 W to 150 W
JZSP-CSM11-
-E
JZSP-CSM31-
-E
SGM7J-02 to -06
SGM7A-02 to -06
200 W to 600 W
JZSP-CSM12-
-E
JZSP-CSM32-
-E
SGM7J-08
750 W
SGM7A-08 or -10
750 W or 1.0 kW
JZSP-CSM13-
-E
JZSP-CSM33-
-E
Name
Servomotor
Model
Order Number*
Appearance
Standard
Cable
Flexible Cable
Encoder Cables for
Incremental Encoders or
Batteryless Absolute
Encoders
SGM7J
(all models)
SGM7A
(SGM7A-A5 to
-10)
JZSP-CSP01-
-E
JZSP-CSP21-
-E
Encoder Cables for
Absolute Encoders
JZSP-CSP05-
-E
JZSP-CSP25-
-E
L
Motor endSERVOPACK end
L
Encoder end
SERVOPACK end
L
Encoder end
Battery Case
(Battery included)
SERVOPACK end
To Next Page
