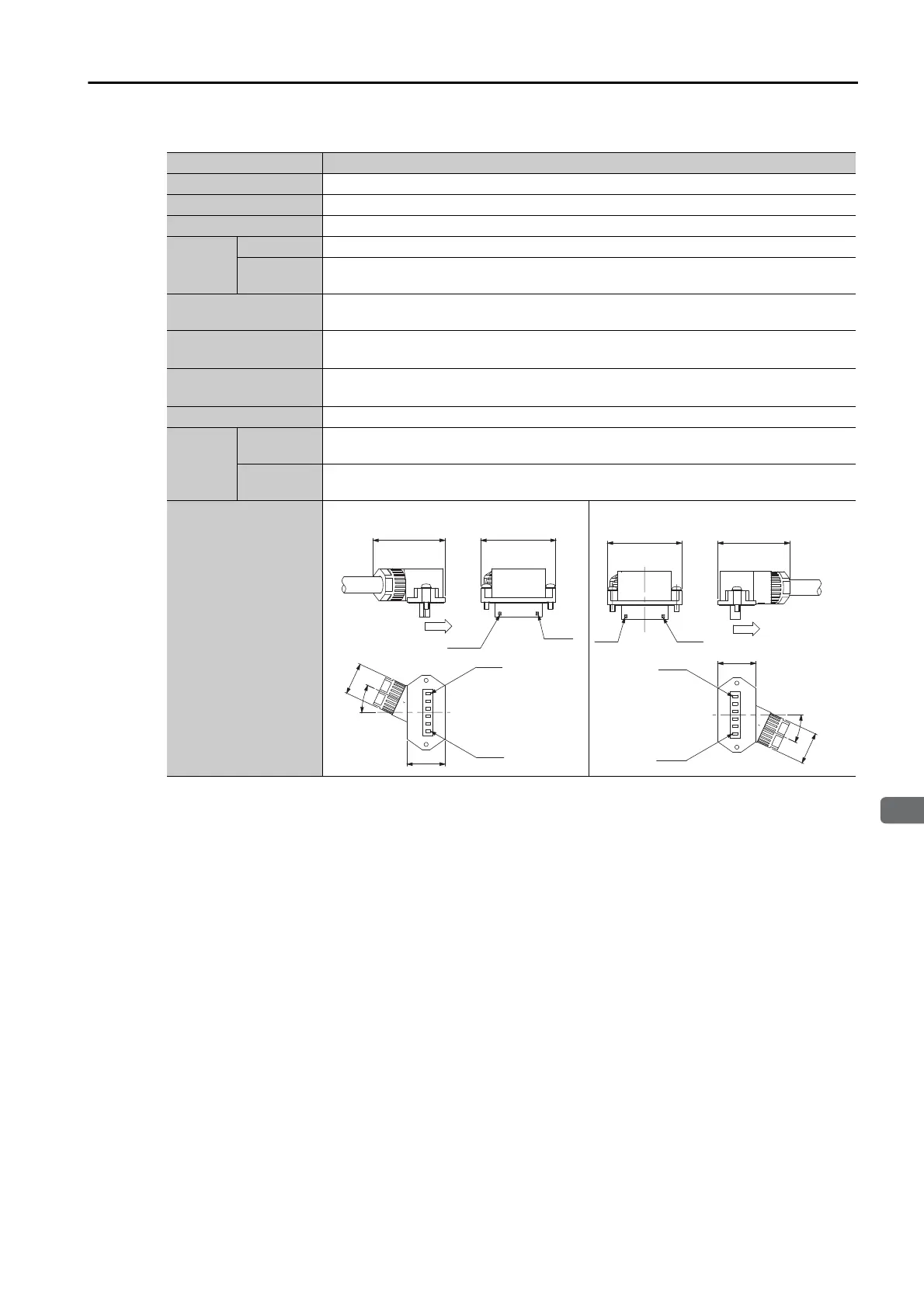

4.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables
4.3.1 Servomotor Connector Kits for 50 W to 1.0 kW
4
Cables and User-Assembled Wiring Materials for SGM7A Rotary Servomotors
4-13
 SGM7A-08 or -10 (750 W or 1.0 kW)
* A Crimping Tool is required. Contact the connector manufacturer for details.
Item Description
Order Number JZSP-C7M9-3-E
Manufacturer J.S.T. Mfg. Co., Ltd.
User Instructions JFA Connector J-3700
Compo-
nents
Receptacle J37S-06FMH-8KL-M-CF
Contacts
Power terminals: SJ3F-41GF-P1.8
Holding brake terminals: SJ3F-01GF-P1.8
Applicable Wire Sizes
Power terminals: AWG16
Holding brake terminals: AWG20 to AWG24
Applicable Cable
Diameter
8 mm ±0.3 mm
Outer Diameter of
Insulating Sheath
Power terminals: 1.53 mm to 2.5 mm
Holding brake terminals: 1.11 mm to 1.86 mm
Mounting Screws M2.5 pan-head screws
Crimp-
ing Tool*
Hand Tool
Power terminals: YRF-880
Holding brake terminals: YRF-881
Applicator
Power terminals: APLMK SJ3F/M41-20
Holding brake terminals: APLMK SJ3F/M01-20
External Dimensions
[mm]
 Cable on Non-load Side
 Cable on Load Side
38
(36.6)
19.3
16.2 dia.
25°
Pin 6
Pin 1
Motor mounting
surface
Pin 1
Pin 6
38
(36.6)
19.3
φ16.2
25°
Motor mounting
surface
Pin 1
Pin 6
Pin 6
Pin 1
