YASKAWA SGDM User Manual

5 Specifications and Dimensional Drawings of Cables and Peripheral Devices
5.8.2 Digital Operator
5-60

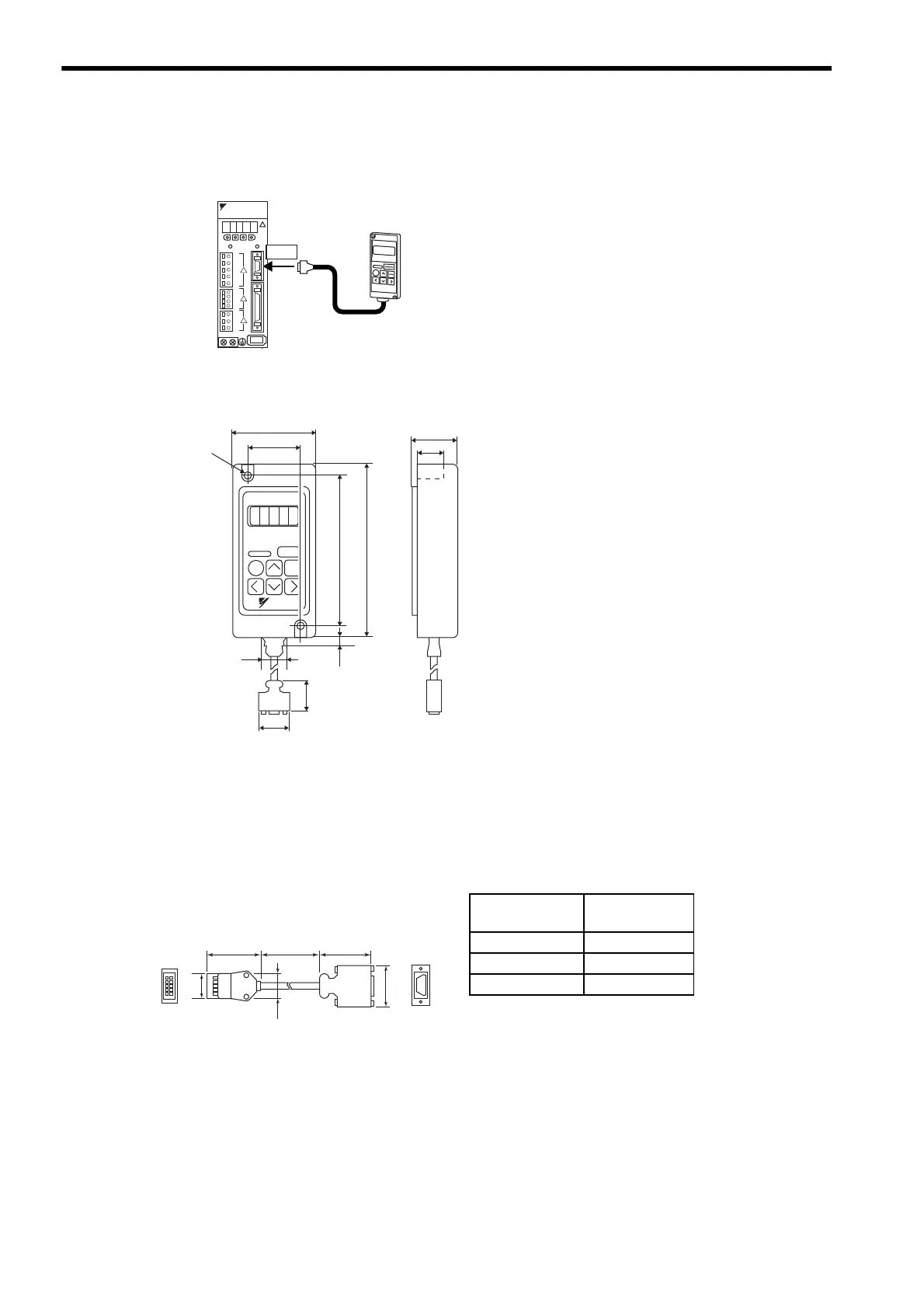

5.8.2 Digital Operator
(1) Model JUSP-OP02A-2 with a 1m-connection Cable
(2) Dimensional Drawing
(3) Other Types of the Applicable Connection Cables: JZSP-CMS00-
Order your cable from Yaskawa Controls Co., Ltd. in the following cases.
• When you need a longer cable than the one supplied with the digital operator.
• When you need additional cables.
• When you use the digital operator for the Σ-I series (model: JUSP-OP02A-1).
Connect
to CN3
SERVOPACK
Digital Operator
YASKAWA
CN3
2 ×φ4.5
mounting holes
125
135
63
Units: mm
18.5
7
50
YASKAWA
26
(8)
39
29.5
Cable Type
Cable Length
(L)
JZSP-CMS00-1
1 m
JZSP-CMS00-2
1.5 m
JZSP-CMS00-3
2 m
L
2
10
1
9
8
11
1
7
Digital Operator end
Units: mm
SERVOPACK end
17.3
29.5
20.2
30
39

YASKAWA SGDM Specifications

General

Communication Interface	MECHATROLINK-II, MECHATROLINK-III, EtherCAT
Feedback	Incremental encoder, Absolute encoder
Protection Features	Overcurrent, Overvoltage, Overload, Overheat
Ambient Temperature	0°C to 55°C
Storage Temperature	-20 to +85°C (-4 to 185°F)
Vibration	5.9 m/s2 (0.6 G) at 10 to 55 Hz
