YASKAWA SGDM User Manual

5 Specifications and Dimensional Drawings of Cables and Peripheral Devices
5.8.4 Connector Terminal Block Converter Unit
5-62
5.8.4 Connector Terminal Block Converter Unit
(1) Model: JUSP-TA50P

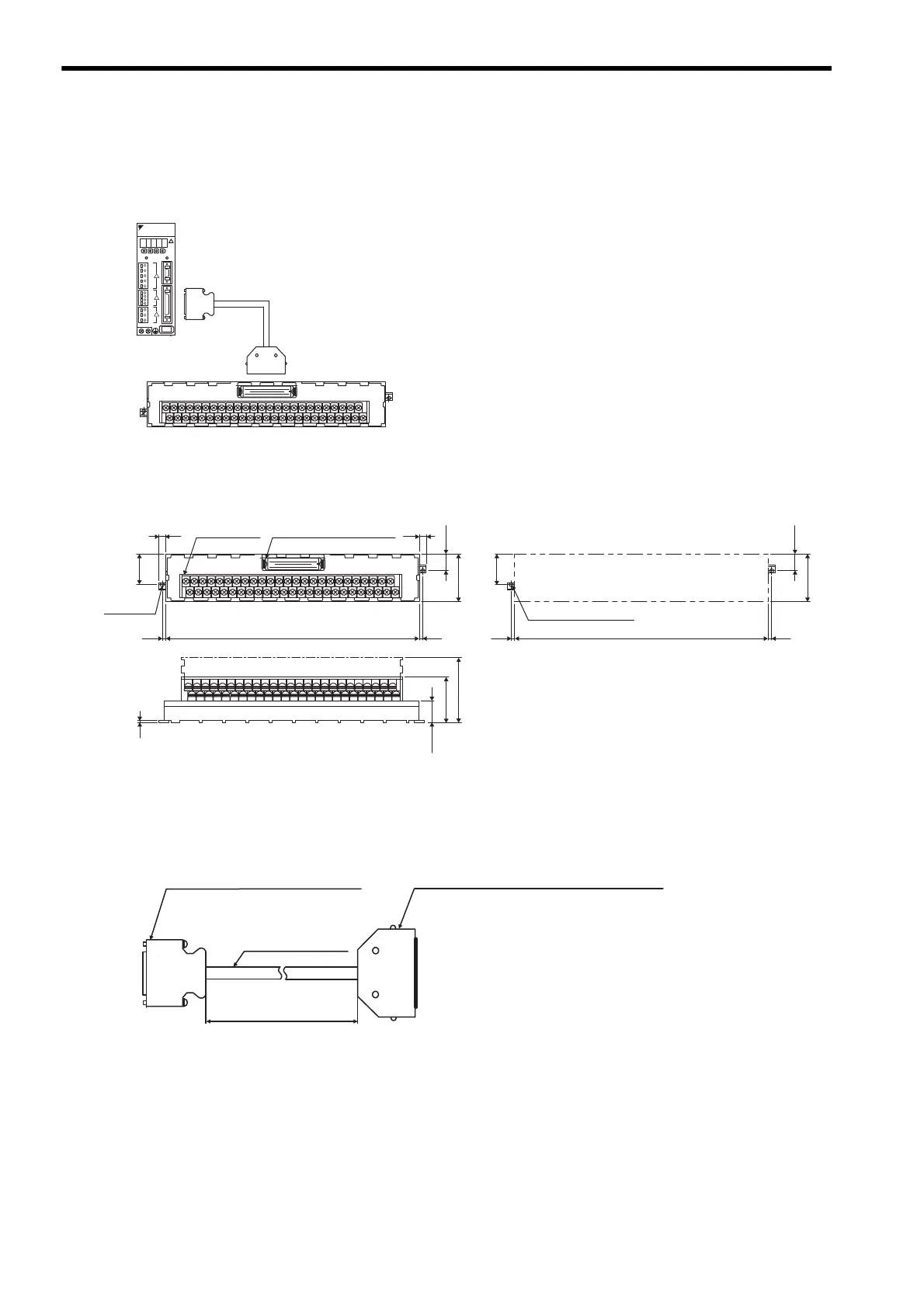

The connection between the connector terminal block converter and the SERVOPACK is shown below.
(2) Dimensional Drawings of Terminal Block
(3) Dimensional Drawing of Cable
1
19
33
16
32
50
1
1
2
49
50
SERVOPACK
Connector terminal block converter unit
model: JUSP-TA50P
CN1
Attached cable length: 500
mm
+50
-0
YASKAWA
1
19
33
16
32
50
1
1
2
49
50
Terminal
block (50P)
M3.5 screw
Connector plug (50P)
MR-50RMD2
7
7
15.5
45
15.5
45
3.5
3.5
29.5
29.5
2×φ3.5
247.5
3.5
3.5
2×M3 screw holes
247.5
2
20.5
43.5
Can be fixed on DIN rail
(62)
Units: mm
With terminal block
cover removed
500
SERVOPACK end connector (50P)
10150-6000EL (Sumitomo 3M Ltd.)
Shell
10350-52AO-008 (Sumitomo 3M Ltd.)
Cable (black)
AWG#2825P
UL20276 VW-1SC
Connector terminal block converter unit
end connector (50P)
MRP-50F01 (Honda Tsushin Kogyo Co., Ltd.)
Case
MR-50L
(Honda Tsushin Kogyo Co., Ltd.)
+50
0
Units: mm
