YASKAWA SGDM User Manual

5.8 Peripheral Devices
5-81
5
Specifications and Dimensional Drawings of Cables and Peripheral Devices
5.8.15 Variable Resistor for Speed and Torque Setting
(1) Model: 25HP-10B
The multiturn type winding variable resistors with dial MD10-30B4 are manufactured by Sakae Tsushin Kogyo
Co., Ltd. Contact Yaskawa Controls Co., Ltd.

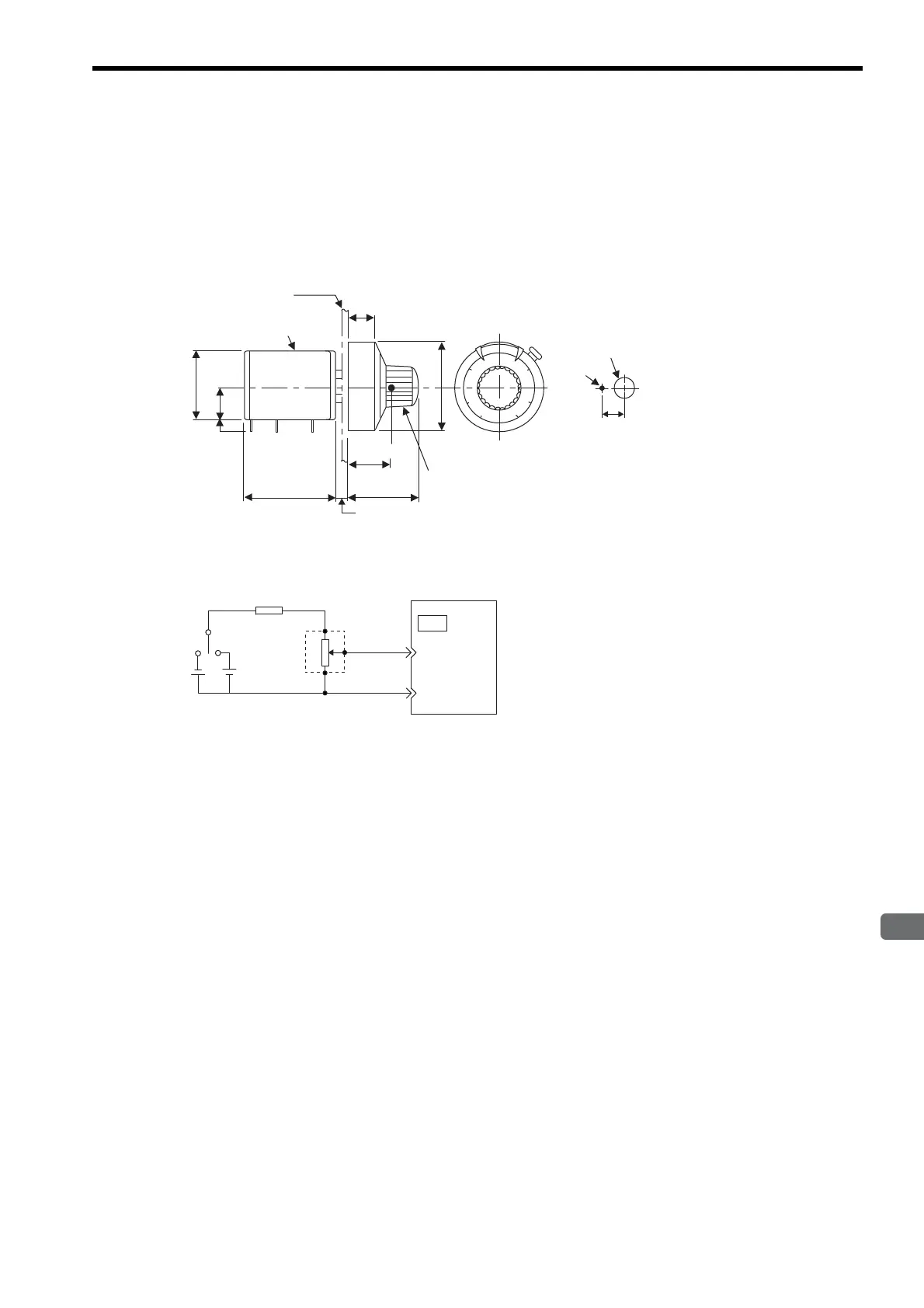

(2) Dimensional Drawings
(3) Example of Connection to an External Power Supply
MD multi-dial
25 HP Helicolumn
Panel driling diagram
Panel
11.5±1
37.5±1
24±1
14.5±1
φ25±1
φ31±1
21 max.
23 1
4.5
φ2.5
hole
φ7.5 hole
10
Units: mm
12V
1.8 kΩ (1/2 W) min.
25HP-10B
2 kΩ
3
1
2
SERVOPACK
5
6
(9)
(10)
CN1
V-REF
(T-REF)
SG
