5.2 Servomotor Main Circuit Wire Size and Connectors
5-31
5
Specifications and Dimensional Drawings of Cables and Peripheral Devices

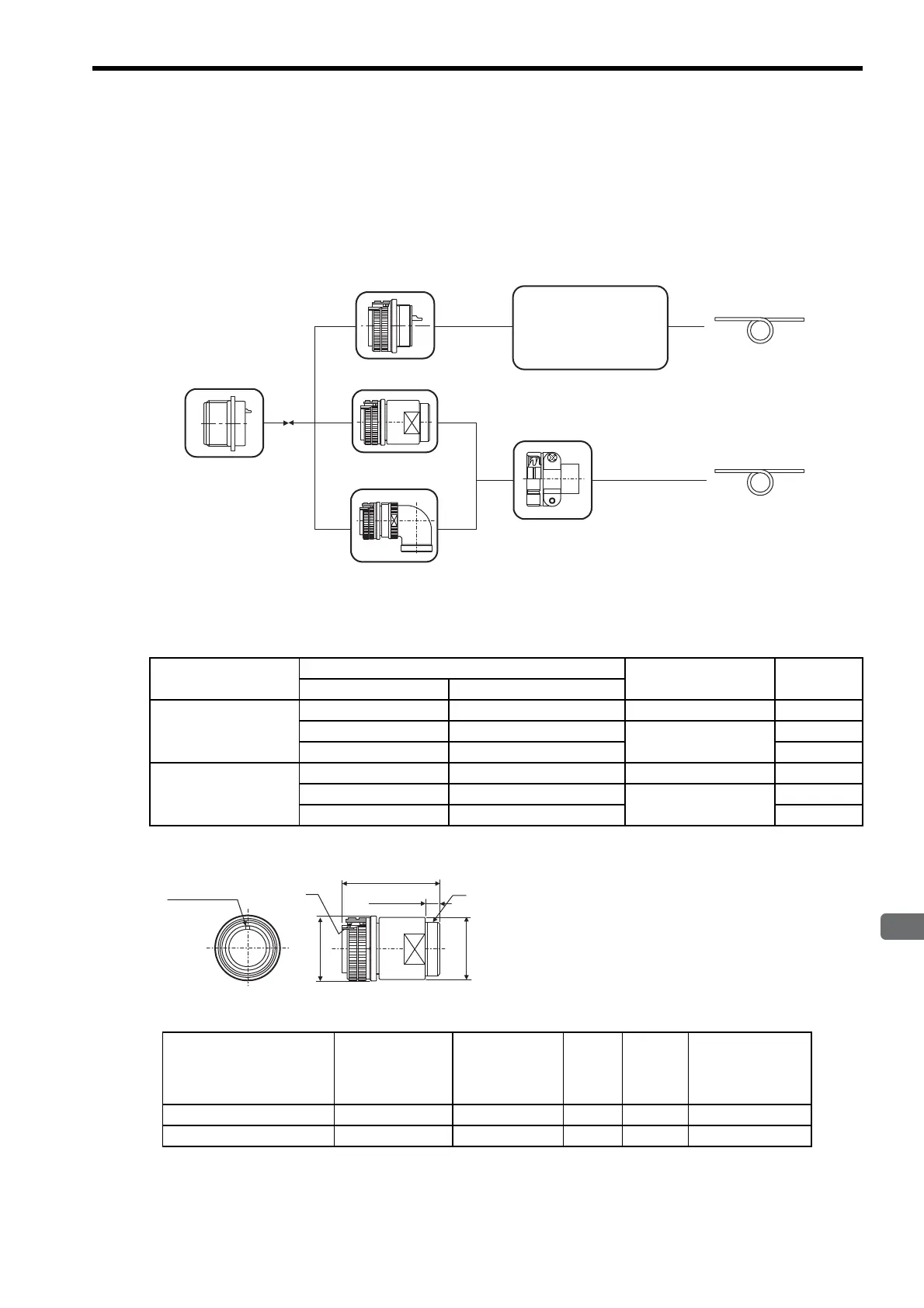

5.2.13 Connector Dimensional Drawings
(1) Connectors Conforming to European Safety Standards (TÜV Certified), Manufactured
by DDK Electronics, Inc.
Contact Yaskawa Controls Co., Ltd.
(a) CE05 Series Products
For more information, contact the manufacturer of the conduit being used.
(b) Straight Plugs
Note: The plug CE05-6A-P-B-BSS is pin inserting type. The mating receptacle is socket
inserting type.
Receptacle
(Waterproof)
Box mounting type
Plug
(Waterproof when inserted only)
Straight plug
L-shaped plug
Cable clamp
(Waterproof when inserted only)
Conduit
Note: Possible to connect with an MS connector.
 Nippon Flex Co., Ltd.
Manufacturers

DAIWA DENGYO CO., Ltd.
 NEOFLEX Co., Ltd.
 SANKEI Manufacturing Co., Ltd.
Cable
Cable
Receptacle
Plug
Waterproof Cable
Clamp
Reference
Type Model
CE05-2A10SL-3PC-B
Plug CE05-6A10SL-3SC-B Applicable with conduit
(d)
Straight plug CE05-6A10SL-3SC-B-BSS
CE3057-4A-1
(D265)
(b) and (e)
L-shaped plug CE05-8A10SL-3SC-B-BAS
(c) and (e)
CE05-2A18-10PD-B
Plug CE05-6A18-10SD-B Applicable with conduit
(d)
Straight plug CE05-6A18-10SD-B-BSS
CE3057-10A-
(D265)
(b) and (e)
L-shaped plug CE05-8A18-10SD-B-BAS
(c) and (e)
Units: mm
Model
Joint Screw
A
Outer Diameter
of Nut
φQ
φC±0.8
Max.
Overall
Length
L
Cable Clamp
Mounting Screw
V
CE05-6A10SL-3SC-BSS 5/8-24UNEF-2B
22.22 18.6 40 5/8-24UNEF-2A
CE05-6A18-10SD-B-BSS 1 1/8-18UNEF-2B
34.13 32.1 57 1-20UNEF-2A
V
A
φQ
φC
L
7.85 min.
Positioning key
+0
-0.38
