YASKAWA SGDM User Manual

3 Servomotor Specifications and Dimensional Drawings
3.5.2 SGMSH Servomotors (3000 min
-1
) With Low-backlash Gears
3-30
* 1. The maximum input motor speed of the gears is 4000
min
-1
.

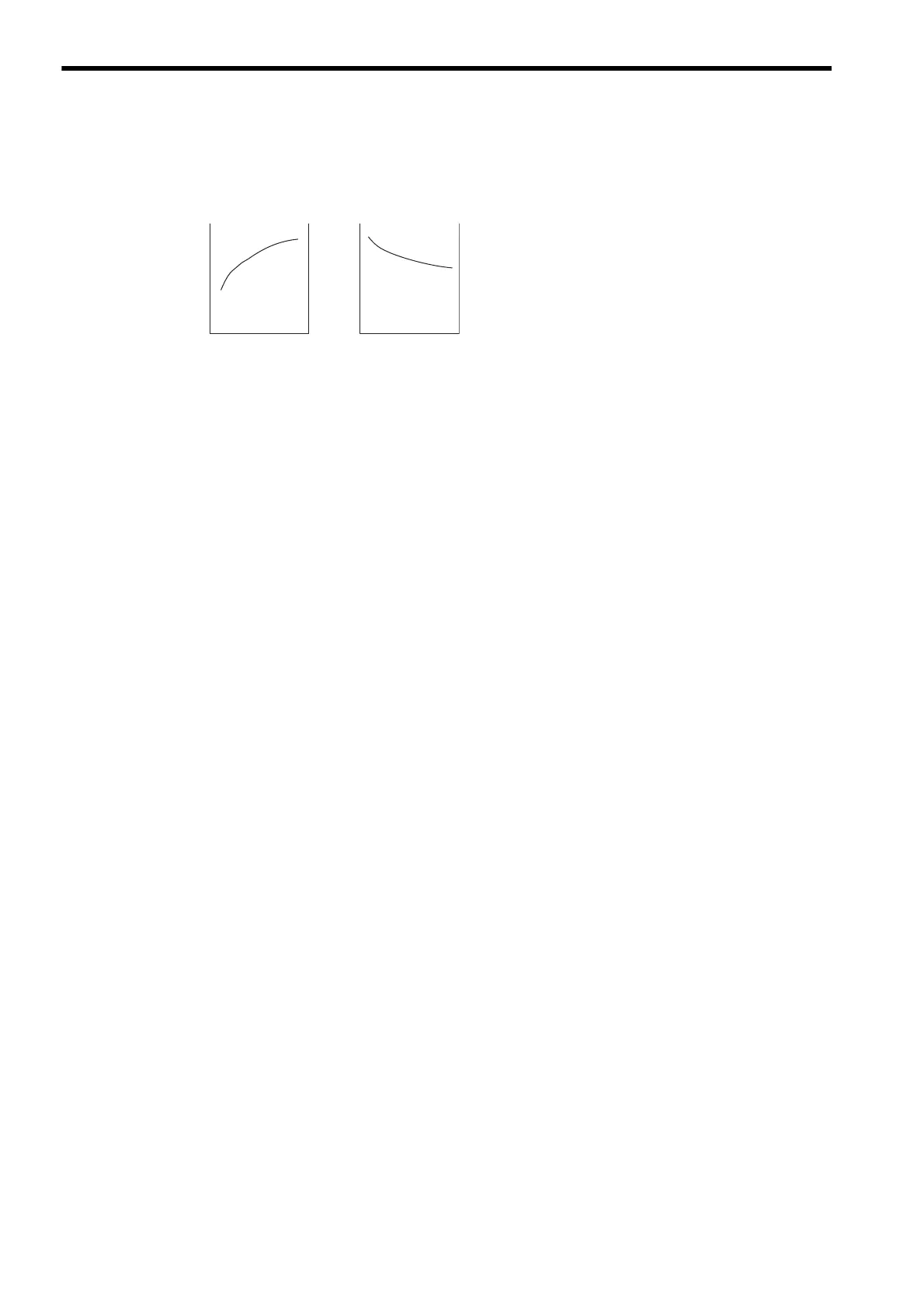

* 2. Output torque and motor speed produce the following trends in efficiency. Values in the table are at
the rated motor speed.
Note: 1. For the shaft center allowable radial load, refer to the servomotor dimensional drawing.
2. The no-load torque for a servomotor with gears is high immediately after the servomotor starts,
and it then decreases and becomes stable a few minutes later. This is a common phenomenon
caused by grease being circulated in the gear and not by a faulty gear.
Output torque
Efficiency
Efficiency
Output torque

YASKAWA SGDM Specifications

General

Communication Interface	MECHATROLINK-II, MECHATROLINK-III, EtherCAT
Feedback	Incremental encoder, Absolute encoder
Protection Features	Overcurrent, Overvoltage, Overload, Overheat
Ambient Temperature	0°C to 55°C
Storage Temperature	-20 to +85°C (-4 to 185°F)
Vibration	5.9 m/s2 (0.6 G) at 10 to 55 Hz
