YASKAWA SIGMA-7 Series User Manual

3.4 Position Correction Table Settings
3.4.3 Setting Method with the SigmaWin+
3-16

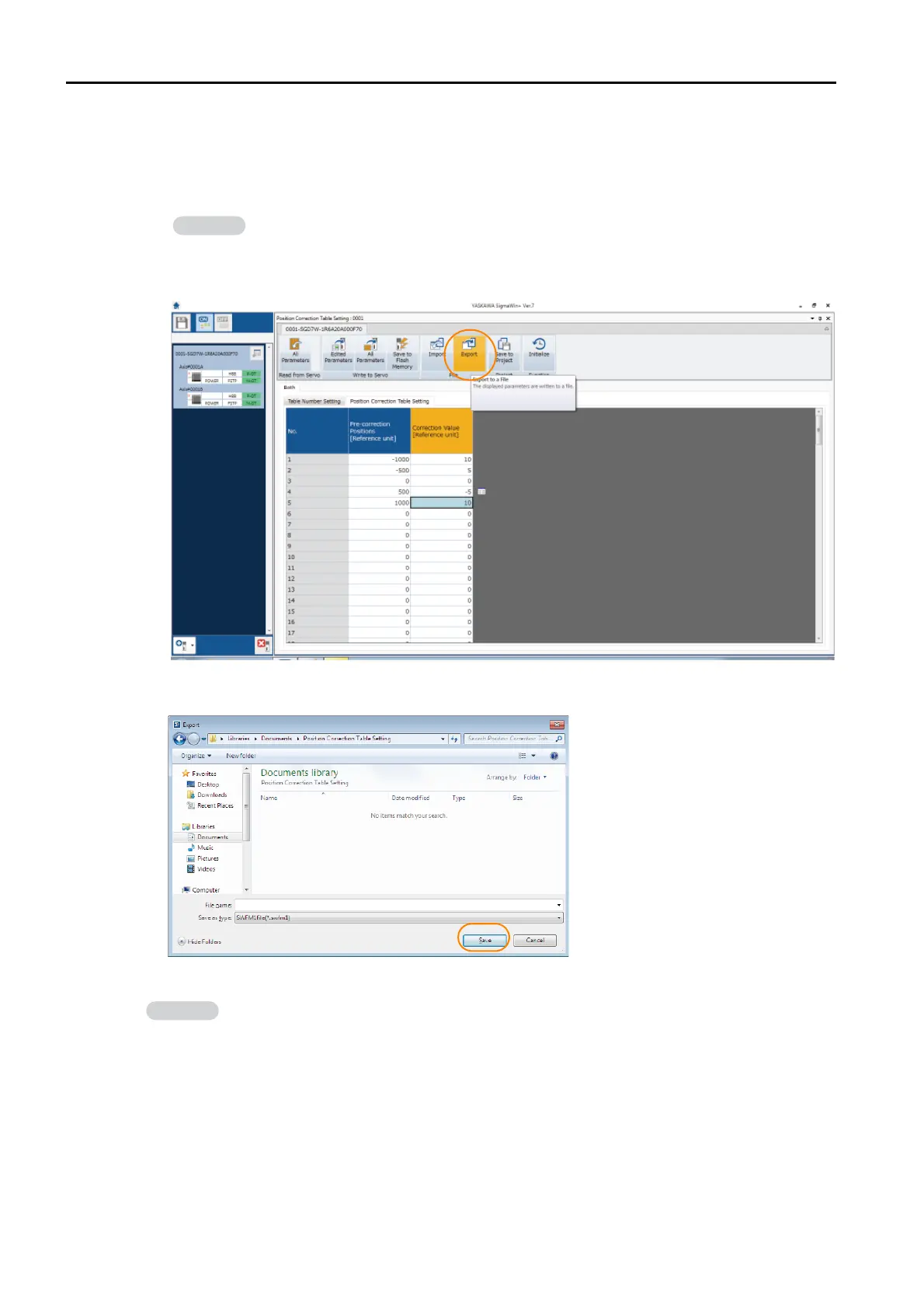

Writing the Position Correction Table
Use the following procedure to write the Position Correction Table to a file.
1. Click Export in the File Group.
2. Enter the file name and click the Save Button.
This concludes the procedure to write the Position Correction Table to a file.
When the cursor is positioned on Export in the window, the “The displayed parameters
are written to a file” message will be displayed, but the parameters will not be written to
the file.
The Position Correction Table will be written to the file.
Information
You can also copy Position Correction Table data and paste it to a spreadsheet in Excel.
Information

YASKAWA SIGMA-7 Series Specifications

General

Encoder Resolution	24-bit absolute encoder
Pollution Degree	2
Cooling Method	Natural cooling or forced air cooling
Control Method	Vector control
Communication Protocols	EtherCAT, MECHATROLINK-III
Input Voltage	AC 200 V, AC 400 V
Rated Output	Varies by model
Safety Function	STO (Safe Torque Off), SS1 (Safe Stop 1), SS2 (Safe Stop 2), SLS (Safely Limited Speed), SBC (Safe Brake Control)
Power Supply Voltage	AC 200 V, AC 400 V
Rated Output Current	Varies by model
Protection Functions	Overload, overvoltage, undervoltage, overheat, short circuit
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 65°C
Vibration Resistance	5.9 m/s² at 10 Hz to 55 Hz
Ambient Humidity	5% to 95% RH (non-condensing)
Altitude	Up to 1000 m
Installation	Panel mounted
