YASKAWA SIGMA-7 Series User Manual

3.4 Position Correction Table Settings
3.4.3 Setting Method with the SigmaWin+
3-18

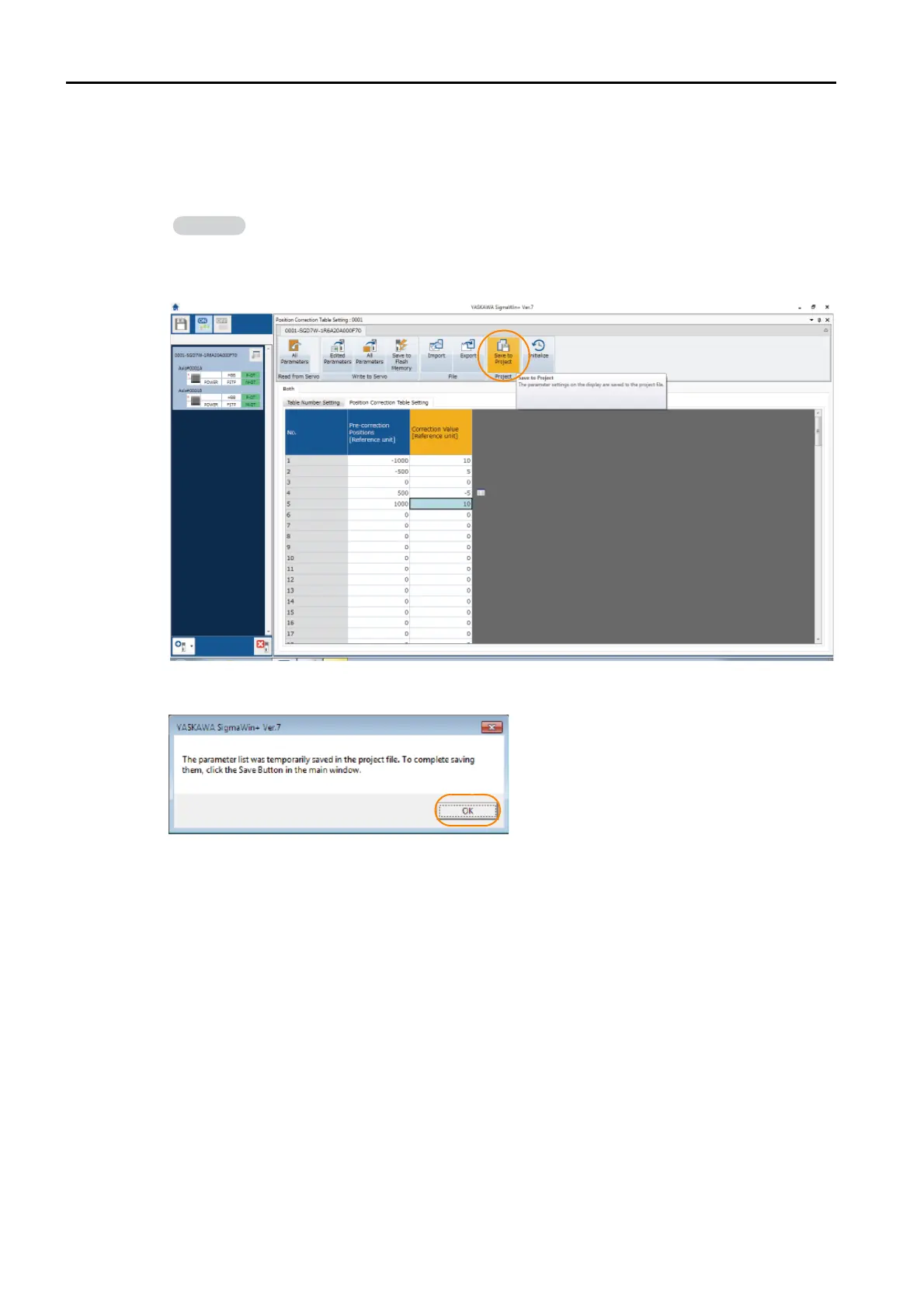

Saving the Position Correction Table to a Project File
Use the following procedure to save the Position Correction Table to a project file.
1. Click Save to Project in the Project Group.
2. Click the OK Button.
When the cursor is positioned on Save to Project in the window, the “The parameter set-
tings on the display are saved to a project file” message will be displayed, but the param-
eter setting values will not be saved to the project file.
The Position Correction Table will be saved to the project file.
Information

YASKAWA SIGMA-7 Series Specifications

General

Encoder Resolution	24-bit absolute encoder
Pollution Degree	2
Cooling Method	Natural cooling or forced air cooling
Control Method	Vector control
Communication Protocols	EtherCAT, MECHATROLINK-III
Input Voltage	AC 200 V, AC 400 V
Rated Output	Varies by model
Safety Function	STO (Safe Torque Off), SS1 (Safe Stop 1), SS2 (Safe Stop 2), SLS (Safely Limited Speed), SBC (Safe Brake Control)
Power Supply Voltage	AC 200 V, AC 400 V
Rated Output Current	Varies by model
Protection Functions	Overload, overvoltage, undervoltage, overheat, short circuit
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 65°C
Vibration Resistance	5.9 m/s² at 10 Hz to 55 Hz
Ambient Humidity	5% to 95% RH (non-condensing)
Altitude	Up to 1000 m
Installation	Panel mounted
