6-10
IM AQ6370D-01EN

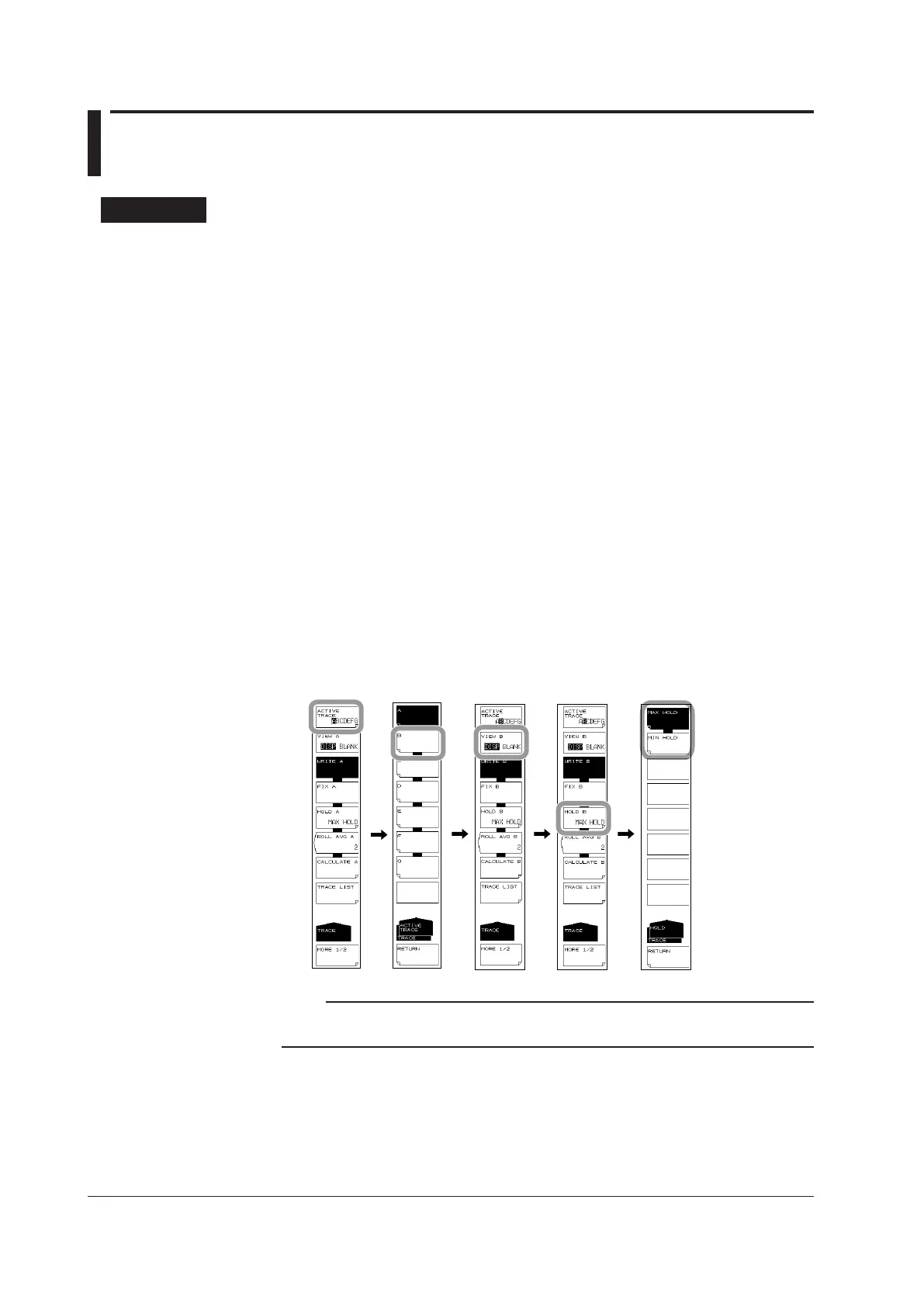

6.3 MAX/MIN HOLD Display
Procedure
Selecting a Trace to Hold
1.
Press TRACE. The soft key menu for trace settings appears.
2.
Press the ACTIVE TRACE soft key. Traces A through G appear in soft keys.
3.
Press the soft key corresponding to the trace whose maximum or minimum value
you wish to hold. The selected trace is set as the active trace, and becomes the
target of the operation below.
4.
Press the VIEW soft key of the selected trace and select DISP. Each time you
press the soft key DISP switches to BLANK, or vice versa. (Trace B is given as
an example.)
Holding the Maximum/Minimum Value
5.
Press the HOLD soft key. The soft key menu for selecting MAX/MIN appears.
6.
To hold the maximum value press the MAX HOLD soft key.
To hold the minimum value press the MIN HOLD soft key.
The maximum or minimum value is held.
7.
Perform measurement.
If you selected MAX HOLD and the measured value is larger than the previous
value, waveform data is updated.
If you selected MIN HOLD and the measured value is smaller than the previous
value, waveform data is updated.
Note
MAX/MIN HOLD is only enabled when the sweep mode is REPEAT. It does not function even if
you perform repeated SINGLE sweeps.
