5-44
IM AQ6370D-01EN

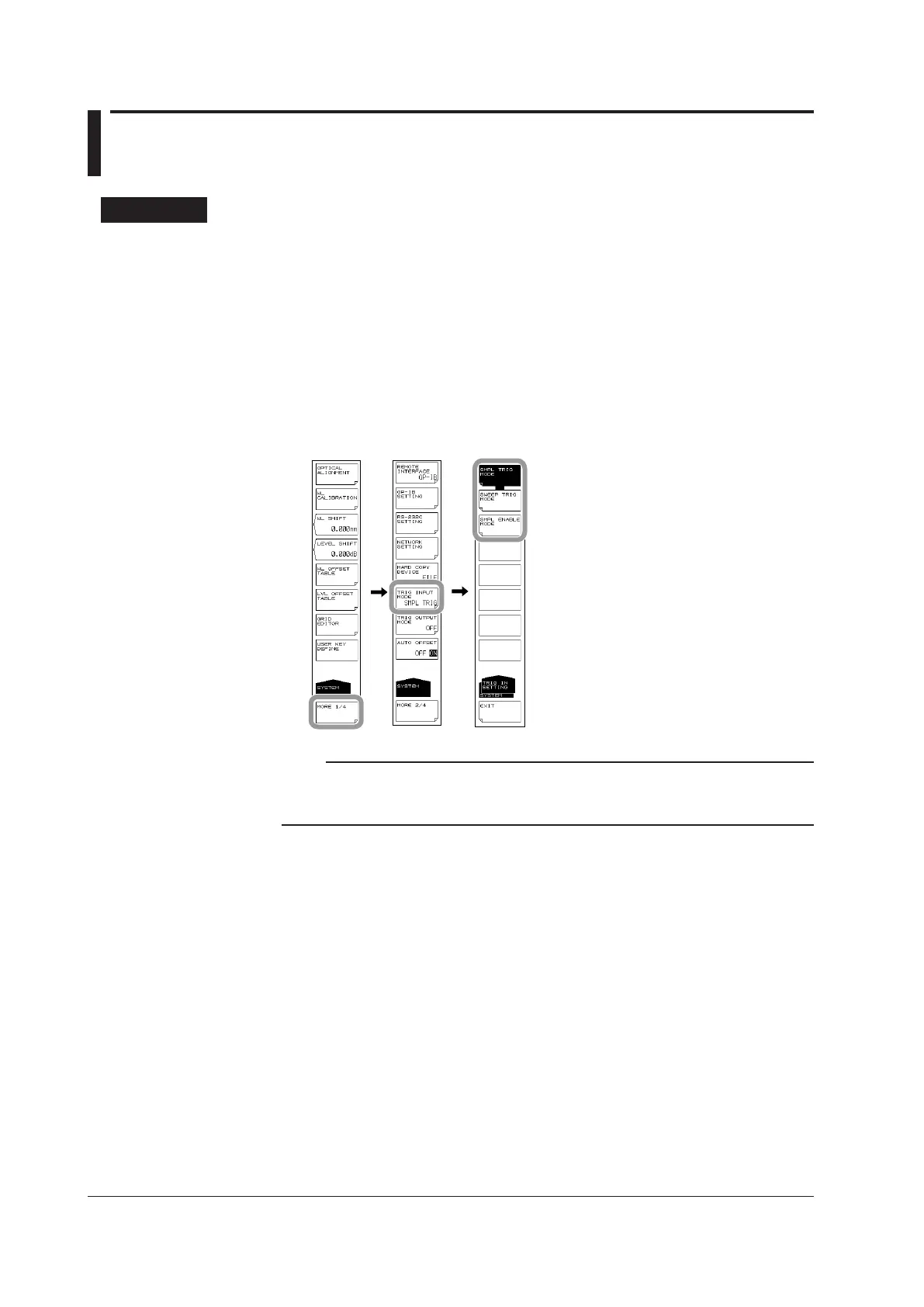

5.16 External Trigger Measurement
Procedure
Setting the Trigger Input Mode
1.
Press SYSTEM. The soft key menu regarding the system settings appears.
2.
Press the MORE 1/4 soft key.
3.
Press the TRIG INPUT MODE soft key. The trigger input mode's setting menu is
displayed.
4.
Press the SMPL TRIG MODE soft key to select the sample trigger mode. Press
the SWEEP TRIG MODE soft key to select the sweep trigger mode. Press the
SMPL ENABLE MODE soft key to select the sample enable mode.
If you select SWEEP TRIG MODE or SMPL ENABLE MODE, the setup procedure is
finished.
Note
• In sample trigger mode, set SWEEP SPEED to 1x and TLS SYNC to OFF.
• In sweep trigger mode, set SWEEP SPEED to 1x and TLS SYNC to OFF. Also, TRIGGER
SETTING and EXT TRIGGER MODE cannot be set.
To Next Page
