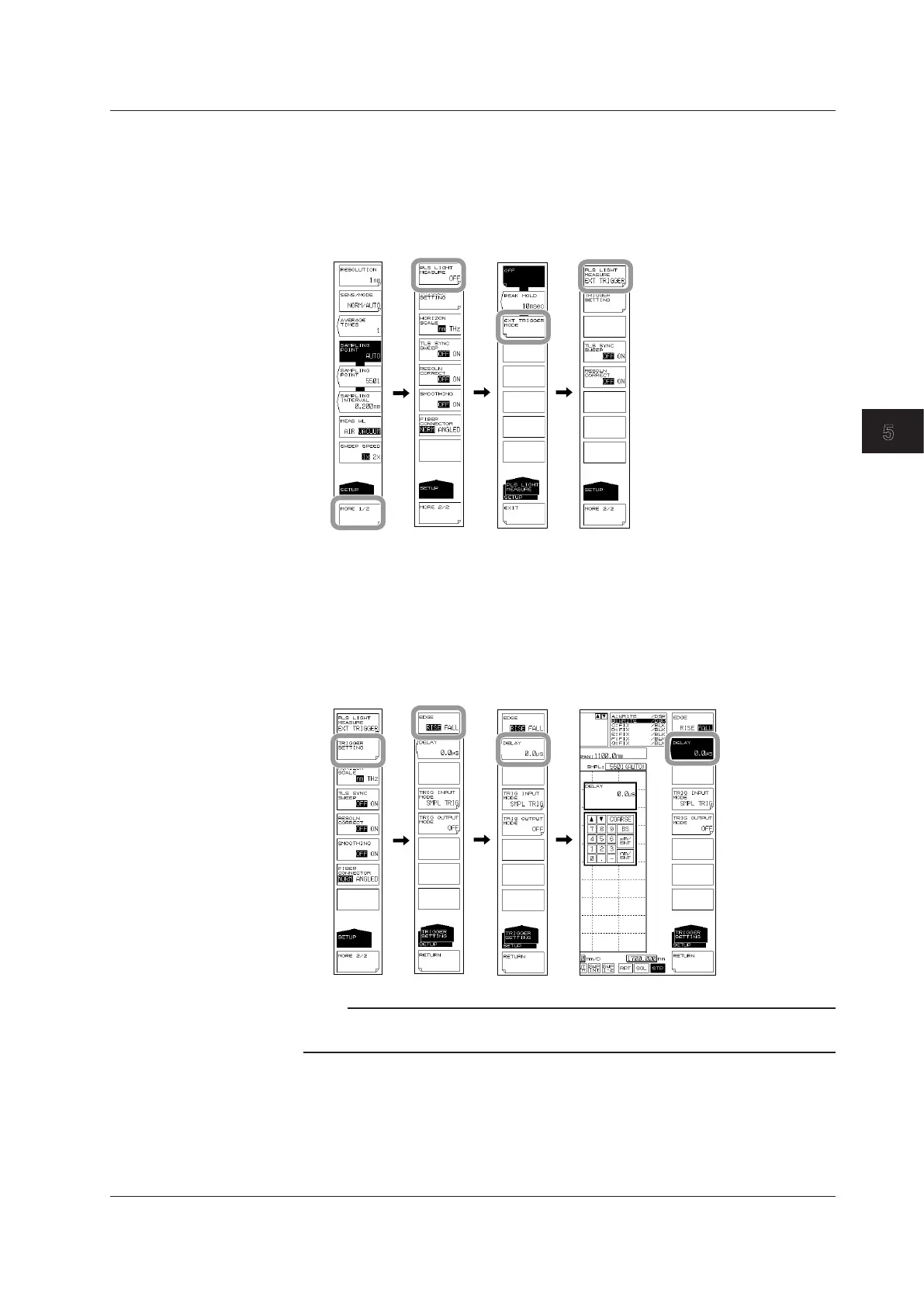

Setting External Trigger Mode (for SMPL TRIG)
5.
Press SETUP. The soft key menu for sweep condition settings appears.
6.
Press the MORE 1/2 soft key.
7.
Press the PLS LIGHT MEASURE soft key.
8.
Press the EXT TRIGGER MODE soft key. External trigger mode is set.
Setting Trigger Conditions (
for SMPL TRIG)
9.
Press the TRIGGER SETTING soft key. The trigger condition setting menu is
displayed.
10.
Press the EDGE soft key. RISE switches to FALL, or vice versa.
11.
Press the DELAY soft key.
12.
Enter a delay time and press ENTER.
Note
When AVERAGE TIMES is set, sweeping stops when a number of external signals equaling the
specified sampling points times the "average times" is input.
5.16 External Trigger Measurement
