7.4 POWER Measurement
Procedure

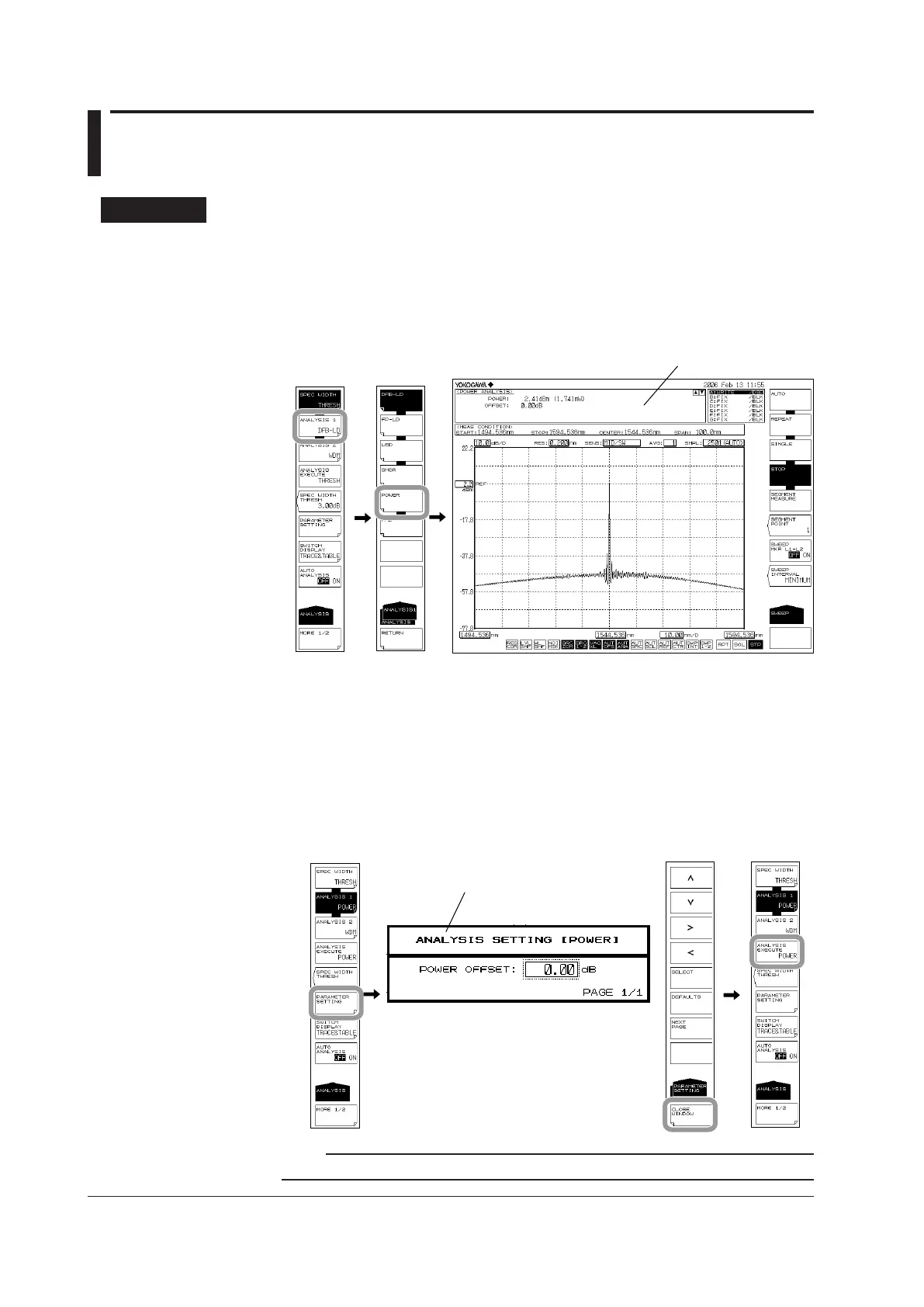

Optical power can be measured by integrating the measured waveform level values.
1.
Press ANALYSIS. The soft key menu for analyzing measured waveforms appears.
2.
Press the ANALYSIS 1 soft key. The analysis function selection menu is
displayed.
3.
Press the POWER soft key. Analysis is performed, and the results are displayed
in the data area.
When changing the analysis parameters
4.
Continuing on from step 3, press the PARAMETER SETTING soft key. The power
offset setting screen is displayed.
5.
Enter a setting value with the numeric key pad.
6.
Press the CLOSE WINDOW soft key. The power offset setting screen closes, and
the soft key menu returns to the previous stage.
7.
Press the ANALYSIS EXECUTE soft key. Analysis is performed according to the
changed parameters, and the results are displayed in the data area.
Analysis parameter setting screen
Note
For details on POWER analysis algorithms, see appendix 3, “Details of Analysis Functions.”
