6.6 Normalized Display
Procedure
1.
Press TRACE. The soft key menu for trace settings appears.
2.
Press the ACTIVE TRACE soft key. Traces A through G appear in soft keys.
3.
Press the Trace G soft key. The Trace G setting menu is displayed.
4.
Press the VIEW G DISP/BLANK soft key and select DISP. Each time you press
the soft key DISP switches to BLANK, or viceversa.
5.
Press the CALCULATE G soft key.
6.
Press the NORMALIZE soft key.
7.
To normalize Trace A press the G=NORM A soft key, to normalize Trace B press
G=NORM B, and to normalize Trace G, press G=NORM C.

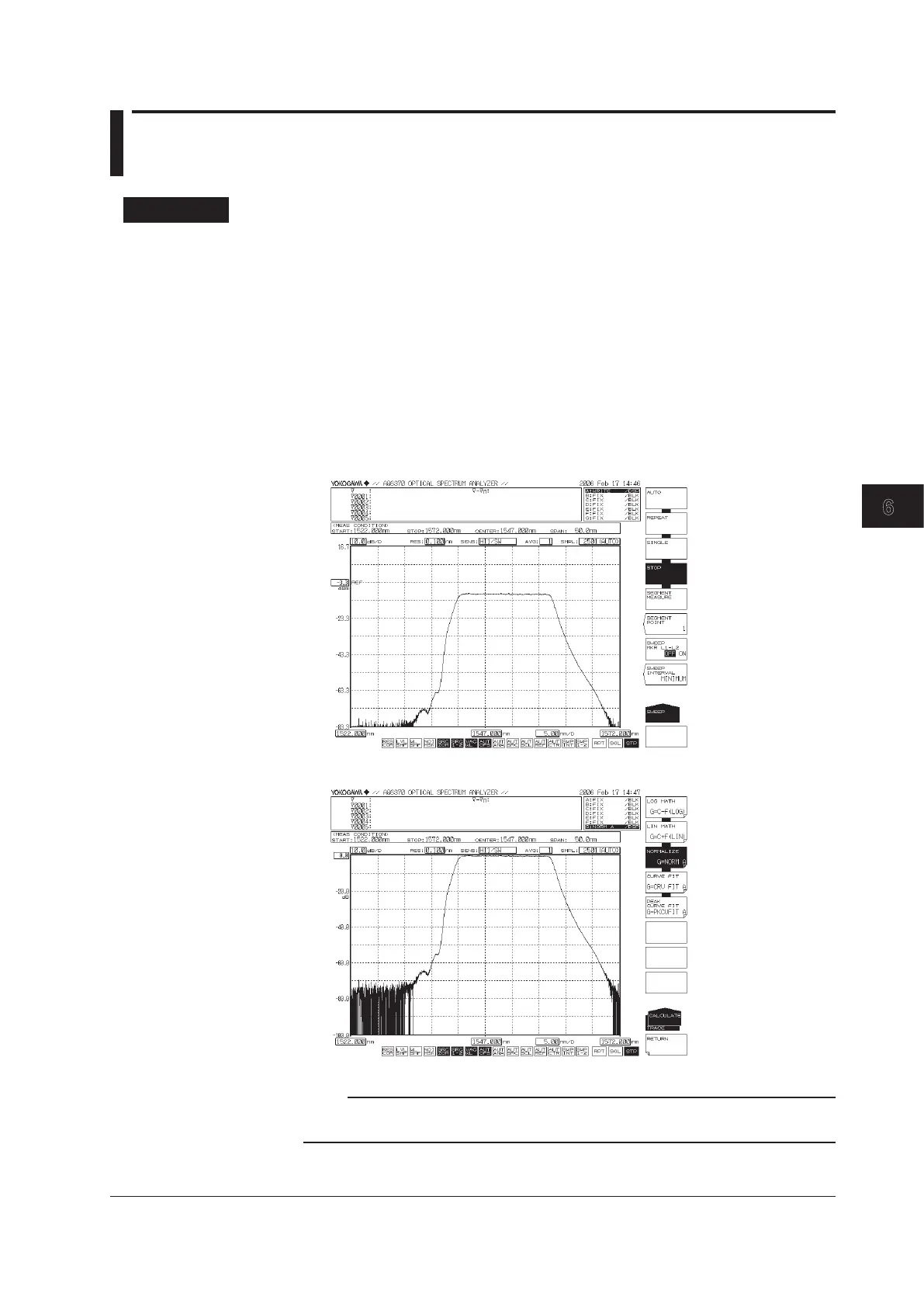

Example of waveform before normalization
Example of waveform after normalization
Note
• Normalization is not possible if the waveform level is too low.
• See section 6.5 for information about NORMALIZE.
