6.7 Curve Fitting

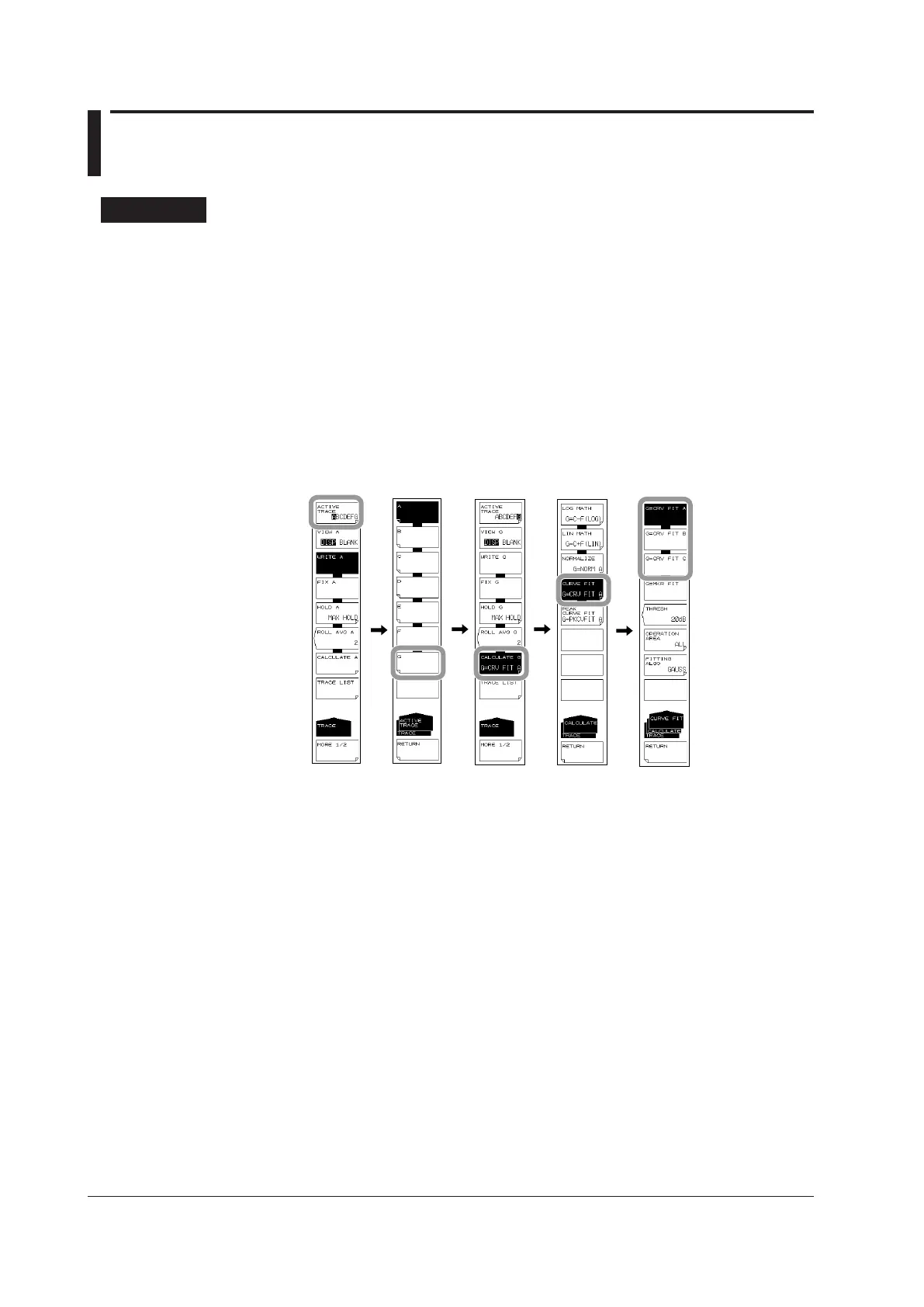

Procedure
Setting the Target Trace
1.
Press TRACE. The soft key menu for trace settings appears.
2.
Press the ACTIVE TRACE soft key. Traces A through G appear in soft keys.
3.
Press the Trace G soft key. The Trace G setting menu is displayed.
4.
Press the VIEW G DISP/BLANK soft key and select DISP. Each time you press
the soft key DISP switches to BLANK, or viceversa.
5.
Press the CALCULATE G soft key.
6.
Press the CURVE FIT soft key. The menu for selecting the trace to curve fit is
displayed.
7.
To curve fit Trace A press the G=CRV FIT A soft key, to curve fit Trace B press
G=CRV FIT B, and to curve fit Trace G, press G=CRV FIT C.
